NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17
5'	G	-	C	-	T	-	T	-	A	-	A	-	A	-	A	-	T	-	A	-	A	-	C	-	A	-	A	-	T	-	A	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	A	-	A	-	T	-	T	-	T	-	T	-	A	-	T	-	T	-	G	-	T	-	T	-	A	-	T	-	G	5'
	34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19		18

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

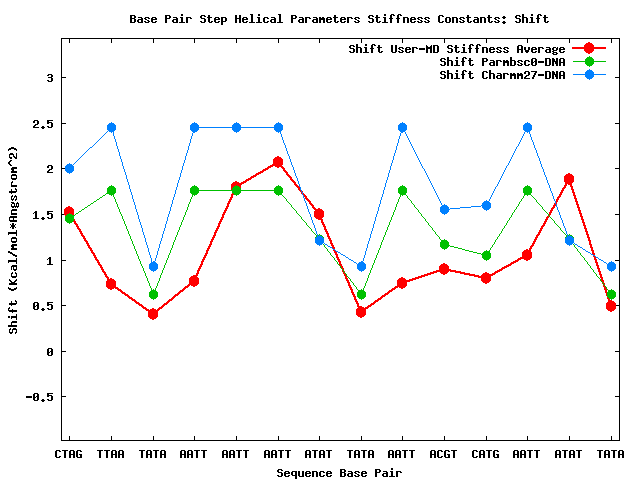

Shift

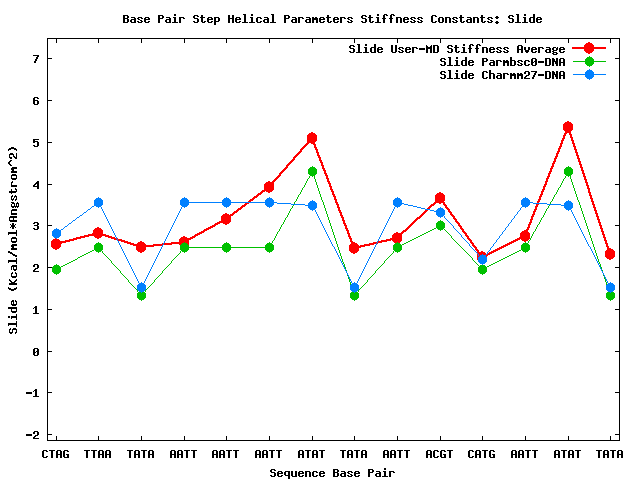

Slide

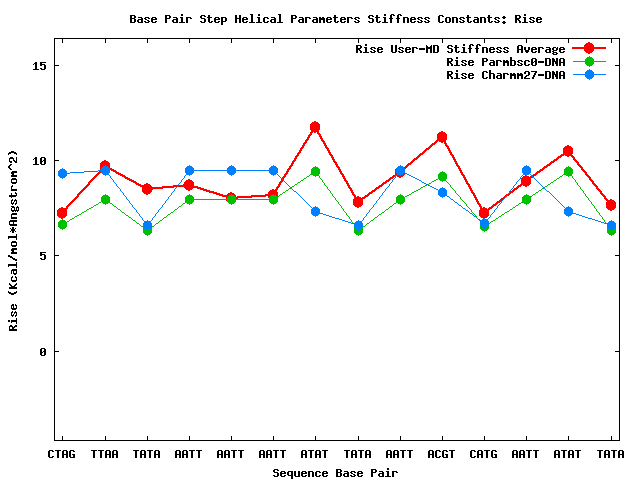

Rise

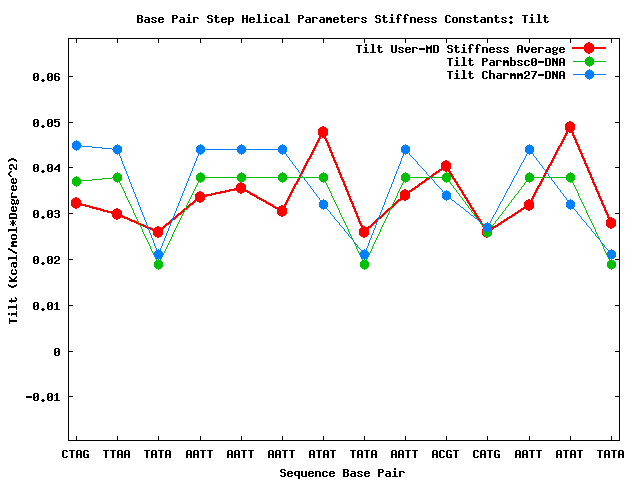

Tilt

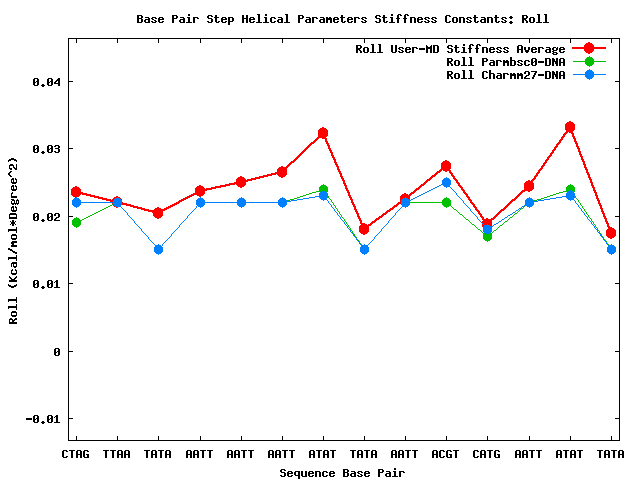

Roll

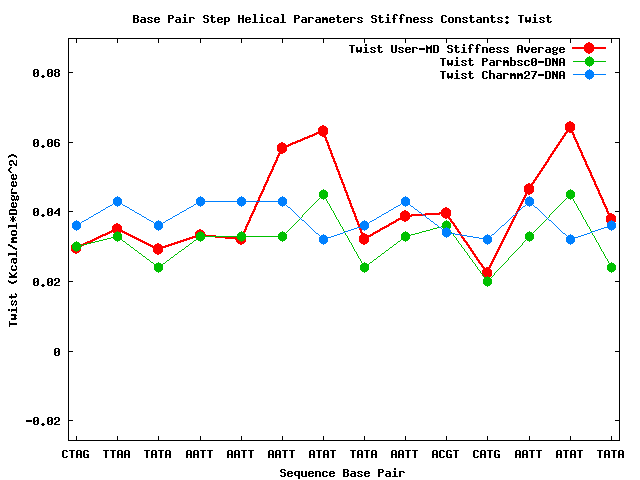

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.746	0.000	0.000	-0.107	0.000	0.000
Slide	0.000	2.704	0.815	0.000	-0.077	-0.147
Rise	0.000	0.815	9.375	0.000	-0.034	-0.169
Tilt	-0.107	0.000	0.000	0.034	0.000	0.000
Roll	0.000	-0.077	-0.034	0.000	0.022	0.010
Twist	0.000	-0.147	-0.169	0.000	0.010	0.039

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.052	0.000	0.000	-0.110	0.000	0.000
Slide	0.000	2.754	1.320	0.000	-0.057	-0.190
Rise	0.000	1.320	8.898	0.000	-0.027	-0.194
Tilt	-0.110	0.000	0.000	0.032	0.000	0.000
Roll	0.000	-0.057	-0.027	0.000	0.024	0.008
Twist	0.000	-0.190	-0.194	0.000	0.008	0.046

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.760	0.000	0.000	-0.064	0.000	0.000
Slide	0.000	2.607	1.219	0.000	-0.085	-0.157
Rise	0.000	1.219	8.680	0.000	-0.036	-0.169
Tilt	-0.064	0.000	0.000	0.033	0.000	0.000
Roll	0.000	-0.085	-0.036	0.000	0.024	0.011
Twist	0.000	-0.157	-0.169	0.000	0.011	0.033

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.795	0.000	0.000	-0.069	0.000	0.000
Slide	0.000	3.163	1.460	0.000	-0.060	-0.170
Rise	0.000	1.460	8.036	0.000	-0.055	-0.161
Tilt	-0.069	0.000	0.000	0.035	0.000	0.000
Roll	0.000	-0.060	-0.055	0.000	0.025	0.008
Twist	0.000	-0.170	-0.161	0.000	0.008	0.032

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.065	0.000	0.000	-0.104	0.000	0.000
Slide	0.000	3.929	1.085	0.000	-0.051	-0.308
Rise	0.000	1.085	8.160	0.000	-0.045	-0.143
Tilt	-0.104	0.000	0.000	0.031	0.000	0.000
Roll	0.000	-0.051	-0.045	0.000	0.026	0.006
Twist	0.000	-0.308	-0.143	0.000	0.006	0.058

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.893	0.000	0.000	-0.043	0.000	0.000
Slide	0.000	3.653	3.192	0.000	0.020	-0.076
Rise	0.000	3.192	11.198	0.000	0.068	-0.208
Tilt	-0.043	0.000	0.000	0.040	0.000	0.000
Roll	0.000	0.020	0.068	0.000	0.027	0.010
Twist	0.000	-0.076	-0.208	0.000	0.010	0.039

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.888	0.000	0.000	-0.023	0.000	0.000
Slide	0.000	5.348	2.768	0.000	-0.030	-0.176
Rise	0.000	2.768	10.456	0.000	0.025	-0.191
Tilt	-0.023	0.000	0.000	0.049	0.000	0.000
Roll	0.000	-0.030	0.025	0.000	0.033	0.011
Twist	0.000	-0.176	-0.191	0.000	0.011	0.064

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.497	0.000	0.000	-0.002	0.000	0.000
Slide	0.000	5.082	3.001	0.000	-0.013	-0.178
Rise	0.000	3.001	11.721	0.000	0.068	-0.147
Tilt	-0.002	0.000	0.000	0.048	0.000	0.000
Roll	0.000	-0.013	0.068	0.000	0.032	0.010
Twist	0.000	-0.178	-0.147	0.000	0.010	0.063

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.799	0.000	0.000	-0.065	0.000	0.000
Slide	0.000	2.253	1.580	0.000	0.017	-0.093
Rise	0.000	1.580	7.231	0.000	-0.105	-0.243
Tilt	-0.065	0.000	0.000	0.026	0.000	0.000
Roll	0.000	0.017	-0.105	0.000	0.019	0.009
Twist	0.000	-0.093	-0.243	0.000	0.009	0.022

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.520	0.000	0.000	-0.088	0.000	0.000
Slide	0.000	2.557	1.572	0.000	-0.053	-0.107
Rise	0.000	1.572	7.234	0.000	-0.039	-0.128
Tilt	-0.088	0.000	0.000	0.032	0.000	0.000
Roll	0.000	-0.053	-0.039	0.000	0.023	0.005
Twist	0.000	-0.107	-0.128	0.000	0.005	0.030

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.487	0.000	0.000	-0.057	0.000	0.000
Slide	0.000	2.325	0.843	0.000	0.031	-0.126
Rise	0.000	0.843	7.634	0.000	-0.096	-0.214
Tilt	-0.057	0.000	0.000	0.028	0.000	0.000
Roll	0.000	0.031	-0.096	0.000	0.017	0.010
Twist	0.000	-0.126	-0.214	0.000	0.010	0.038

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.403	0.000	0.000	-0.042	0.000	0.000
Slide	0.000	2.488	0.826	0.000	0.006	-0.142
Rise	0.000	0.826	8.459	0.000	-0.133	-0.227
Tilt	-0.042	0.000	0.000	0.026	0.000	0.000
Roll	0.000	0.006	-0.133	0.000	0.020	0.014
Twist	0.000	-0.142	-0.227	0.000	0.014	0.029

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.428	0.000	0.000	-0.061	0.000	0.000
Slide	0.000	2.467	1.309	0.000	0.026	-0.119
Rise	0.000	1.309	7.797	0.000	-0.109	-0.236
Tilt	-0.061	0.000	0.000	0.026	0.000	0.000
Roll	0.000	0.026	-0.109	0.000	0.018	0.012
Twist	0.000	-0.119	-0.236	0.000	0.012	0.032

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.731	0.000	0.000	-0.071	0.000	0.000
Slide	0.000	2.827	0.871	0.000	-0.061	-0.142
Rise	0.000	0.871	9.675	0.000	-0.001	-0.186
Tilt	-0.071	0.000	0.000	0.030	0.000	0.000
Roll	0.000	-0.061	-0.001	0.000	0.022	0.011
Twist	0.000	-0.142	-0.186	0.000	0.011	0.035

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-aatt.10.cte	0.000	0.000

	Mean	Stdev
-aatt.13.cte	0.000	0.000

	Mean	Stdev
-aatt.5.cte	0.000	0.000

	Mean	Stdev
-aatt.6.cte	0.000	0.000

	Mean	Stdev
-aatt.7.cte	0.000	0.000

	Mean	Stdev
-acgt.11.cte	0.000	0.000

	Mean	Stdev
-atat.14.cte	0.000	0.000

	Mean	Stdev
-atat.8.cte	0.000	0.000

	Mean	Stdev
-catg.12.cte	0.000	0.000

	Mean	Stdev
-ctag.2.cte	0.000	0.000

	Mean	Stdev
-tata.15.cte	0.000	0.000

	Mean	Stdev
-tata.4.cte	0.000	0.000

	Mean	Stdev
-tata.9.cte	0.000	0.000

	Mean	Stdev
-ttaa.3.cte	0.000	0.000

	Mean	Stdev
rise-10-AATT	3.225	0.261

	Mean	Stdev
roll-10-AATT	1.000	5.555

	Mean	Stdev
shift-10-AATT	0.000	1.197

	Mean	Stdev
slide-10-AATT	0.079	0.532

	Mean	Stdev
tilt-10-AATT	0.000	5.616

	Mean	Stdev
twist-10-AATT	36.086	4.636

	Mean	Stdev
rise-11-ACGT	3.366	0.279

	Mean	Stdev
roll-11-ACGT	-1.196	5.010

	Mean	Stdev
shift-11-ACGT	0.000	0.832

	Mean	Stdev
slide-11-ACGT	-0.687	0.463

	Mean	Stdev
tilt-11-ACGT	0.000	3.919

	Mean	Stdev
twist-11-ACGT	32.717	4.364

	Mean	Stdev
rise-12-CATG	3.357	0.365

	Mean	Stdev
roll-12-CATG	7.981	6.749

	Mean	Stdev
shift-12-CATG	0.000	0.960

	Mean	Stdev
slide-12-CATG	-0.201	0.611

	Mean	Stdev
tilt-12-CATG	0.000	5.340

	Mean	Stdev
twist-12-CATG	33.935	7.474

	Mean	Stdev
rise-13-AATT	3.340	0.272

	Mean	Stdev
roll-13-AATT	0.258	5.094

	Mean	Stdev
shift-13-AATT	0.000	0.934

	Mean	Stdev
slide-13-AATT	-0.189	0.553

	Mean	Stdev
tilt-13-AATT	0.000	5.381

	Mean	Stdev
twist-13-AATT	37.363	4.339

	Mean	Stdev
rise-14-ATAT	3.369	0.259

	Mean	Stdev
roll-14-ATAT	-2.543	4.353

	Mean	Stdev
shift-14-ATAT	0.000	0.559

	Mean	Stdev
slide-14-ATAT	-0.856	0.367

	Mean	Stdev
tilt-14-ATAT	0.000	3.477

	Mean	Stdev
twist-14-ATAT	32.903	3.292

	Mean	Stdev
rise-15-TATA	3.289	0.306

	Mean	Stdev
roll-15-TATA	2.946	6.981

	Mean	Stdev
shift-15-TATA	0.000	1.255

	Mean	Stdev
slide-15-TATA	0.235	0.607

	Mean	Stdev
tilt-15-TATA	0.000	5.252

	Mean	Stdev
twist-15-TATA	38.654	5.275

	Mean	Stdev
rise-2-CTAG	3.469	0.310

	Mean	Stdev
roll-2-CTAG	2.088	5.159

	Mean	Stdev
shift-2-CTAG	0.000	0.677

	Mean	Stdev
slide-2-CTAG	-0.753	0.549

	Mean	Stdev
tilt-2-CTAG	0.000	4.647

	Mean	Stdev
twist-2-CTAG	35.018	4.934

	Mean	Stdev
rise-3-TTAA	3.220	0.263

	Mean	Stdev
roll-3-TTAA	-0.226	5.717

	Mean	Stdev
shift-3-TTAA	0.000	1.021

	Mean	Stdev
slide-3-TTAA	-0.001	0.513

	Mean	Stdev
tilt-3-TTAA	0.000	5.046

	Mean	Stdev
twist-3-TTAA	35.587	5.153

	Mean	Stdev
rise-4-TATA	3.117	0.297

	Mean	Stdev
roll-4-TATA	7.585	7.681

	Mean	Stdev
shift-4-TATA	0.000	1.325

	Mean	Stdev
slide-4-TATA	0.170	0.659

	Mean	Stdev
tilt-4-TATA	0.000	5.220

	Mean	Stdev
twist-4-TATA	31.129	7.882

	Mean	Stdev
rise-5-AATT	3.254	0.276

	Mean	Stdev
roll-5-AATT	1.206	5.552

	Mean	Stdev
shift-5-AATT	0.000	0.959

	Mean	Stdev
slide-5-AATT	-0.092	0.572

	Mean	Stdev
tilt-5-AATT	0.000	4.570

	Mean	Stdev
twist-5-AATT	35.292	5.324

	Mean	Stdev
rise-6-AATT	3.380	0.288

	Mean	Stdev
roll-6-AATT	0.791	5.088

	Mean	Stdev
shift-6-AATT	0.000	0.594

	Mean	Stdev
slide-6-AATT	-0.463	0.515

	Mean	Stdev
tilt-6-AATT	0.000	4.232

	Mean	Stdev
twist-6-AATT	35.277	5.268

	Mean	Stdev
rise-7-AATT	3.372	0.275

	Mean	Stdev
roll-7-AATT	0.137	4.788

	Mean	Stdev
shift-7-AATT	0.000	0.586

	Mean	Stdev
slide-7-AATT	-0.560	0.508

	Mean	Stdev
tilt-7-AATT	0.000	4.820

	Mean	Stdev
twist-7-AATT	37.232	4.177

	Mean	Stdev
rise-8-ATAT	3.305	0.246

	Mean	Stdev
roll-8-ATAT	-2.568	4.430

	Mean	Stdev
shift-8-ATAT	0.000	0.626

	Mean	Stdev
slide-8-ATAT	-0.888	0.383

	Mean	Stdev
tilt-8-ATAT	0.000	3.507

	Mean	Stdev
twist-8-ATAT	32.450	3.310

	Mean	Stdev
rise-9-TATA	3.225	0.316

	Mean	Stdev
roll-9-TATA	4.757	7.435

	Mean	Stdev
shift-9-TATA	0.000	1.442

	Mean	Stdev
slide-9-TATA	0.119	0.606

	Mean	Stdev
tilt-9-TATA	0.000	5.866

	Mean	Stdev
twist-9-TATA	34.970	6.236
