NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15
5'	C	-	A	-	C	-	C	-	C	-	T	-	T	-	T	-	G	-	A	-	A	-	G	-	C	-	T	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	G	-	T	-	G	-	G	-	G	-	A	-	A	-	A	-	C	-	T	-	T	-	C	-	G	-	A	-	G	5'
	30		29		28		27		26		25		24		23		22		21		20		19		18		17		16

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

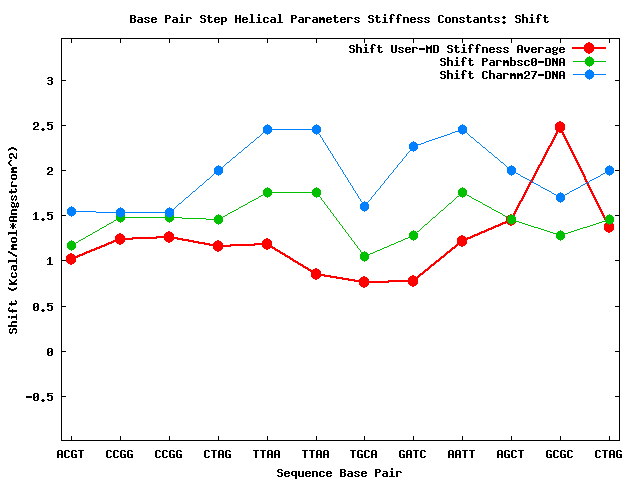

Shift

Slide

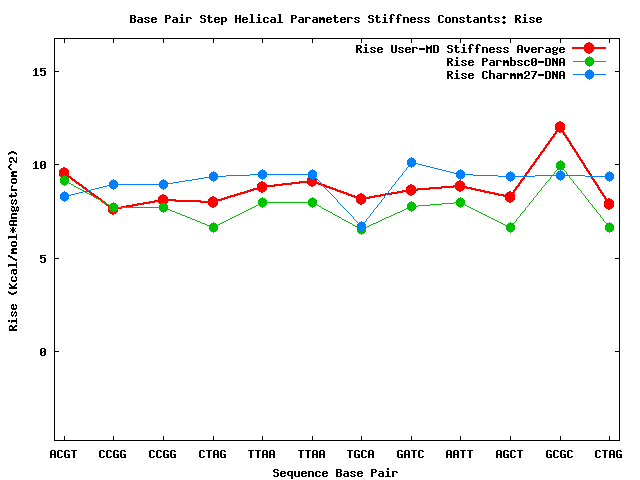

Rise

Tilt

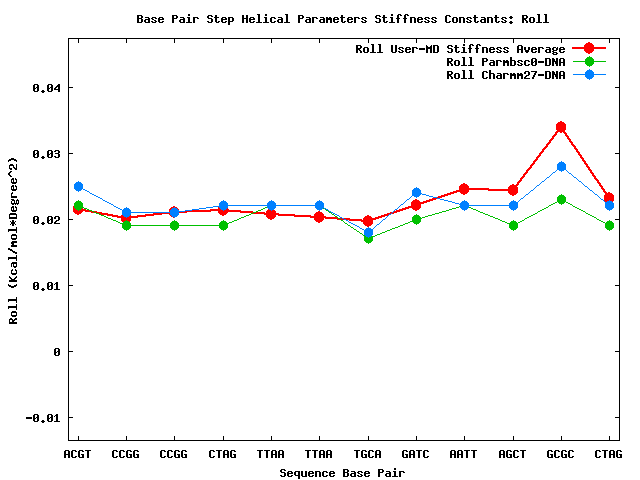

Roll

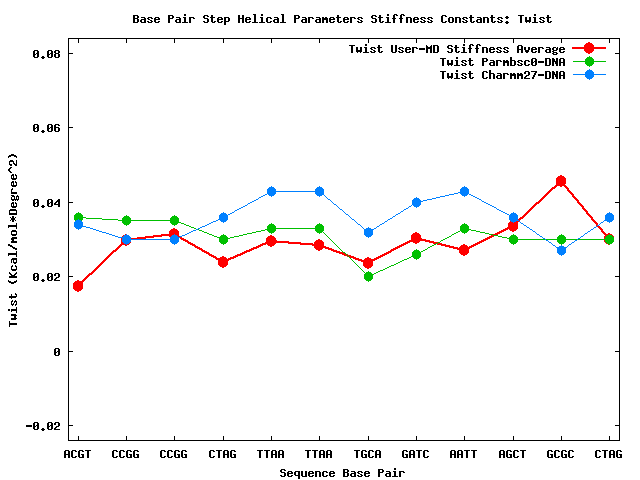

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.211	0.000	0.000	-0.024	0.000	0.000
Slide	0.000	2.797	0.776	0.000	-0.100	-0.122
Rise	0.000	0.776	8.851	0.000	-0.044	-0.169
Tilt	-0.024	0.000	0.000	0.029	0.000	0.000
Roll	0.000	-0.100	-0.044	0.000	0.025	0.011
Twist	0.000	-0.122	-0.169	0.000	0.011	0.027

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.010	0.000	0.000	-0.048	0.000	0.000
Slide	0.000	3.659	2.761	0.000	0.027	-0.099
Rise	0.000	2.761	9.514	0.000	0.146	-0.124
Tilt	-0.048	0.000	0.000	0.038	0.000	0.000
Roll	0.000	0.027	0.146	0.000	0.021	0.001
Twist	0.000	-0.099	-0.124	0.000	0.001	0.017

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.443	0.000	0.000	-0.134	0.000	0.000
Slide	0.000	2.757	1.602	0.000	-0.055	-0.151
Rise	0.000	1.602	8.223	0.000	-0.042	-0.156
Tilt	-0.134	0.000	0.000	0.036	0.000	0.000
Roll	0.000	-0.055	-0.042	0.000	0.024	0.003
Twist	0.000	-0.151	-0.156	0.000	0.003	0.034

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.239	0.000	0.000	-0.112	0.000	0.000
Slide	0.000	1.462	1.775	0.000	0.002	-0.083
Rise	0.000	1.775	7.626	0.000	-0.032	-0.192
Tilt	-0.112	0.000	0.000	0.039	0.000	0.000
Roll	0.000	0.002	-0.032	0.000	0.020	0.005
Twist	0.000	-0.083	-0.192	0.000	0.005	0.030

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.255	0.000	0.000	-0.108	0.000	0.000
Slide	0.000	1.519	1.780	0.000	0.001	-0.086
Rise	0.000	1.780	8.083	0.000	-0.029	-0.188
Tilt	-0.108	0.000	0.000	0.037	0.000	0.000
Roll	0.000	0.001	-0.029	0.000	0.021	0.004
Twist	0.000	-0.086	-0.188	0.000	0.004	0.031

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.374	0.000	0.000	-0.102	0.000	0.000
Slide	0.000	2.743	1.756	0.000	-0.053	-0.125
Rise	0.000	1.756	7.850	0.000	-0.065	-0.173
Tilt	-0.102	0.000	0.000	0.034	0.000	0.000
Roll	0.000	-0.053	-0.065	0.000	0.023	0.005
Twist	0.000	-0.125	-0.173	0.000	0.005	0.030

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.154	0.000	0.000	-0.063	0.000	0.000
Slide	0.000	2.083	1.645	0.000	-0.055	-0.068
Rise	0.000	1.645	7.973	0.000	-0.047	-0.176
Tilt	-0.063	0.000	0.000	0.031	0.000	0.000
Roll	0.000	-0.055	-0.047	0.000	0.021	0.004
Twist	0.000	-0.068	-0.176	0.000	0.004	0.024

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.773	0.000	0.000	-0.080	0.000	0.000
Slide	0.000	2.496	1.291	0.000	-0.054	-0.132
Rise	0.000	1.291	8.633	0.000	-0.037	-0.158
Tilt	-0.080	0.000	0.000	0.034	0.000	0.000
Roll	0.000	-0.054	-0.037	0.000	0.022	0.011
Twist	0.000	-0.132	-0.158	0.000	0.011	0.030

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.472	0.000	0.000	-0.130	0.000	0.000
Slide	0.000	3.391	2.739	0.000	0.059	-0.166
Rise	0.000	2.739	11.988	0.000	0.147	-0.201
Tilt	-0.130	0.000	0.000	0.046	0.000	0.000
Roll	0.000	0.059	0.147	0.000	0.034	0.003
Twist	0.000	-0.166	-0.201	0.000	0.003	0.045

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.755	0.000	0.000	-0.064	0.000	0.000
Slide	0.000	2.602	0.907	0.000	0.007	-0.113
Rise	0.000	0.907	8.168	0.000	-0.139	-0.261
Tilt	-0.064	0.000	0.000	0.027	0.000	0.000
Roll	0.000	0.007	-0.139	0.000	0.020	0.011
Twist	0.000	-0.113	-0.261	0.000	0.011	0.024

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.177	0.000	0.000	-0.055	0.000	0.000
Slide	0.000	2.772	1.027	0.000	-0.067	-0.127
Rise	0.000	1.027	8.781	0.000	-0.054	-0.159
Tilt	-0.055	0.000	0.000	0.027	0.000	0.000
Roll	0.000	-0.067	-0.054	0.000	0.021	0.010
Twist	0.000	-0.127	-0.159	0.000	0.010	0.029

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.845	0.000	0.000	-0.069	0.000	0.000
Slide	0.000	2.737	1.250	0.000	-0.056	-0.175
Rise	0.000	1.250	9.095	0.000	-0.010	-0.184
Tilt	-0.069	0.000	0.000	0.034	0.000	0.000
Roll	0.000	-0.056	-0.010	0.000	0.020	0.008
Twist	0.000	-0.175	-0.184	0.000	0.008	0.028

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-aatt.10.cte	0.000	0.000

	Mean	Stdev
-acgt.2.cte	0.000	0.000

	Mean	Stdev
-agct.11.cte	0.000	0.000

	Mean	Stdev
-ccgg.3.cte	0.000	0.000

	Mean	Stdev
-ccgg.4.cte	0.000	0.000

	Mean	Stdev
-ctag.13.cte	0.000	0.000

	Mean	Stdev
-ctag.5.cte	0.000	0.000

	Mean	Stdev
-gatc.9.cte	0.000	0.000

	Mean	Stdev
-gcgc.12.cte	0.000	0.000

	Mean	Stdev
-tgca.8.cte	0.000	0.000

	Mean	Stdev
-ttaa.6.cte	0.000	0.000

	Mean	Stdev
-ttaa.7.cte	0.000	0.000

	Mean	Stdev
rise-10-AATT	3.210	0.275

	Mean	Stdev
roll-10-AATT	1.127	5.602

	Mean	Stdev
shift-10-AATT	0.000	0.701

	Mean	Stdev
slide-10-AATT	-0.361	0.525

	Mean	Stdev
tilt-10-AATT	0.000	4.563

	Mean	Stdev
twist-10-AATT	33.089	5.788

	Mean	Stdev
rise-11-AGCT	3.452	0.287

	Mean	Stdev
roll-11-AGCT	2.892	5.015

	Mean	Stdev
shift-11-AGCT	0.000	0.787

	Mean	Stdev
slide-11-AGCT	-0.641	0.554

	Mean	Stdev
tilt-11-AGCT	0.000	4.964

	Mean	Stdev
twist-11-AGCT	35.941	4.876

	Mean	Stdev
rise-12-GCGC	3.574	0.251

	Mean	Stdev
roll-12-GCGC	-0.123	4.367

	Mean	Stdev
shift-12-GCGC	0.000	0.527

	Mean	Stdev
slide-12-GCGC	-0.833	0.497

	Mean	Stdev
tilt-12-GCGC	0.000	3.850

	Mean	Stdev
twist-12-GCGC	37.142	4.055

	Mean	Stdev
rise-13-CTAG	3.406	0.304

	Mean	Stdev
roll-13-CTAG	2.501	5.181

	Mean	Stdev
shift-13-CTAG	0.000	0.740

	Mean	Stdev
slide-13-CTAG	-0.552	0.537

	Mean	Stdev
tilt-13-CTAG	0.000	4.677

	Mean	Stdev
twist-13-CTAG	34.451	5.061

	Mean	Stdev
rise-2-ACGT	3.281	0.301

	Mean	Stdev
roll-2-ACGT	-1.075	5.590

	Mean	Stdev
shift-2-ACGT	0.000	0.785

	Mean	Stdev
slide-2-ACGT	-0.491	0.474

	Mean	Stdev
tilt-2-ACGT	0.000	4.026

	Mean	Stdev
twist-2-ACGT	32.836	6.417

	Mean	Stdev
rise-3-CCGG	3.501	0.338

	Mean	Stdev
roll-3-CCGG	3.352	5.520

	Mean	Stdev
shift-3-CCGG	0.000	0.801

	Mean	Stdev
slide-3-CCGG	-0.722	0.775

	Mean	Stdev
tilt-3-CCGG	0.000	4.546

	Mean	Stdev
twist-3-CCGG	35.644	5.080

	Mean	Stdev
rise-4-CCGG	3.494	0.321

	Mean	Stdev
roll-4-CCGG	3.577	5.367

	Mean	Stdev
shift-4-CCGG	0.000	0.790

	Mean	Stdev
slide-4-CCGG	-0.706	0.749

	Mean	Stdev
tilt-4-CCGG	0.000	4.597

	Mean	Stdev
twist-4-CCGG	34.780	4.902

	Mean	Stdev
rise-5-CTAG	3.339	0.313

	Mean	Stdev
roll-5-CTAG	2.760	5.478

	Mean	Stdev
shift-5-CTAG	0.000	0.755

	Mean	Stdev
slide-5-CTAG	-0.608	0.603

	Mean	Stdev
tilt-5-CTAG	0.000	4.615

	Mean	Stdev
twist-5-CTAG	33.643	5.536

	Mean	Stdev
rise-6-TTAA	3.267	0.273

	Mean	Stdev
roll-6-TTAA	0.494	5.835

	Mean	Stdev
shift-6-TTAA	0.000	0.743

	Mean	Stdev
slide-6-TTAA	-0.278	0.519

	Mean	Stdev
tilt-6-TTAA	0.000	4.931

	Mean	Stdev
twist-6-TTAA	35.746	5.425

	Mean	Stdev
rise-7-TTAA	3.239	0.274

	Mean	Stdev
roll-7-TTAA	-0.129	5.741

	Mean	Stdev
shift-7-TTAA	0.000	0.911

	Mean	Stdev
slide-7-TTAA	-0.160	0.595

	Mean	Stdev
tilt-7-TTAA	0.000	4.535

	Mean	Stdev
twist-7-TTAA	34.185	6.277

	Mean	Stdev
rise-8-TGCA	3.091	0.335

	Mean	Stdev
roll-8-TGCA	8.447	6.665

	Mean	Stdev
shift-8-TGCA	0.000	0.985

	Mean	Stdev
slide-8-TGCA	0.082	0.567

	Mean	Stdev
tilt-8-TGCA	0.000	5.182

	Mean	Stdev
twist-8-TGCA	29.693	7.830

	Mean	Stdev
rise-9-GATC	3.322	0.278

	Mean	Stdev
roll-9-GATC	2.028	5.756

	Mean	Stdev
shift-9-GATC	0.000	1.000

	Mean	Stdev
slide-9-GATC	0.166	0.560

	Mean	Stdev
tilt-9-GATC	0.000	4.748

	Mean	Stdev
twist-9-GATC	36.479	5.585

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15
5'	C	-	A	-	C	-	C	-	C	-	T	-	T	-	T	-	G	-	A	-	A	-	G	-	C	-	T	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	G	-	T	-	G	-	G	-	G	-	A	-	A	-	A	-	C	-	T	-	T	-	C	-	G	-	A	-	G	5'
	30		29		28		27		26		25		24		23		22		21		20		19		18		17		16

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15
5'	C	-	A	-	C	-	C	-	C	-	T	-	T	-	T	-	G	-	A	-	A	-	G	-	C	-	T	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	G	-	T	-	G	-	G	-	G	-	A	-	A	-	A	-	C	-	T	-	T	-	C	-	G	-	A	-	G	5'
	30		29		28		27		26		25		24		23		22		21		20		19		18		17		16

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15
5'	C	-	A	-	C	-	C	-	C	-	T	-	T	-	T	-	G	-	A	-	A	-	G	-	C	-	T	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	G	-	T	-	G	-	G	-	G	-	A	-	A	-	A	-	C	-	T	-	T	-	C	-	G	-	A	-	G	5'
	30		29		28		27		26		25		24		23		22		21		20		19		18		17		16
