NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16
5'	G	-	A	-	G	-	C	-	C	-	C	-	U	-	G	-	G	-	G	-	A	-	G	-	G	-	C	-	U	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	A	-	C	-	A	-	G	-	A	-	C	-	C	-	C	-	U	-	G	-	G	-	U	-	C	-	G	5'
	32		31		30		29		28		27		26		25		24		23		22		21		20		19		18		17

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

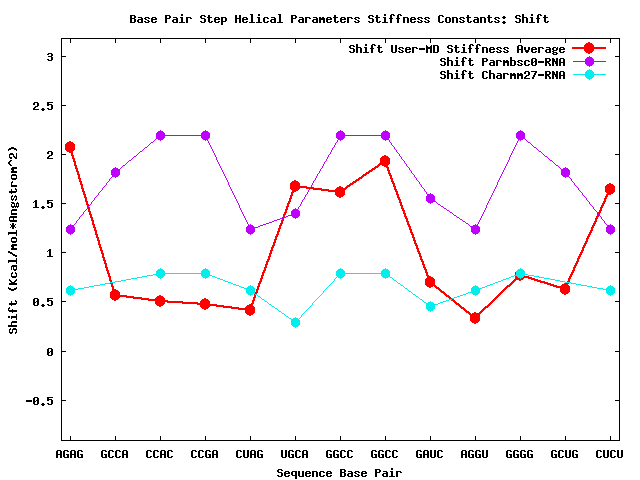

Shift

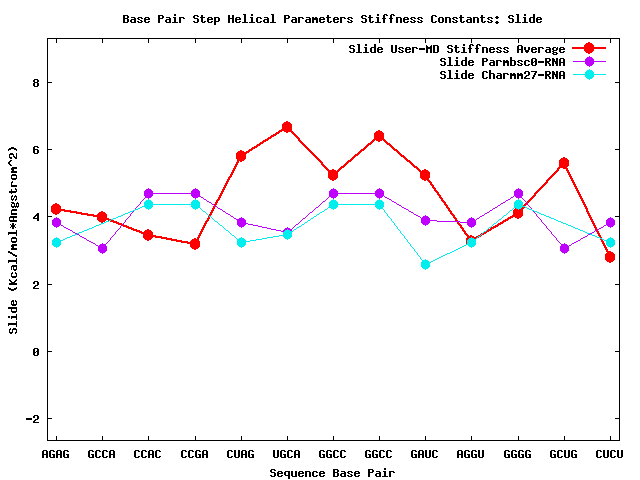

Slide

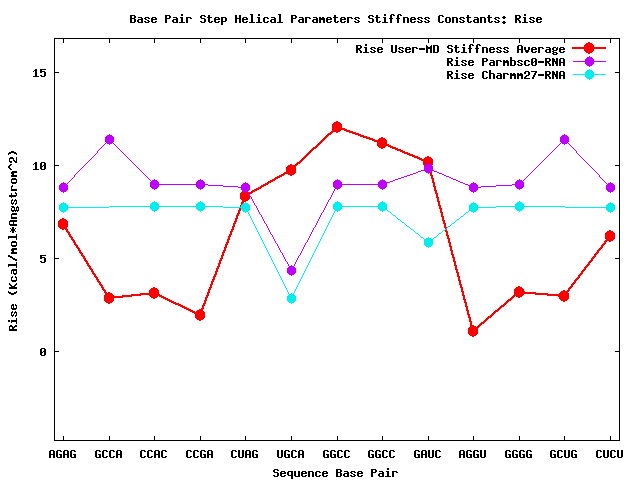

Rise

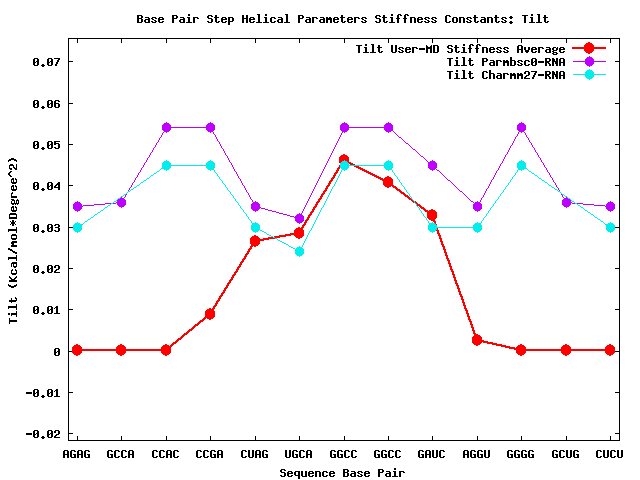

Tilt

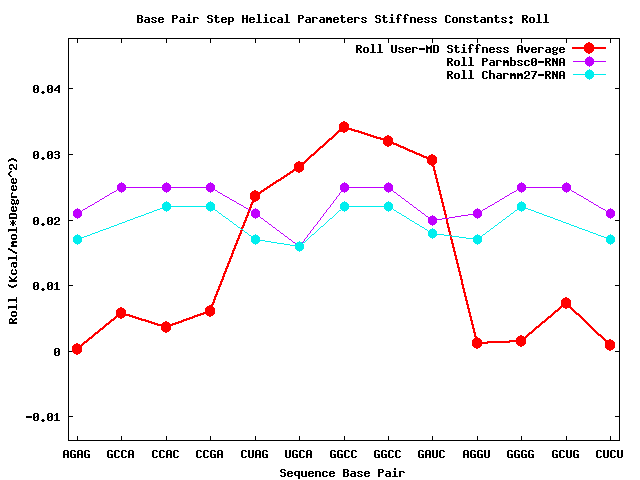

Roll

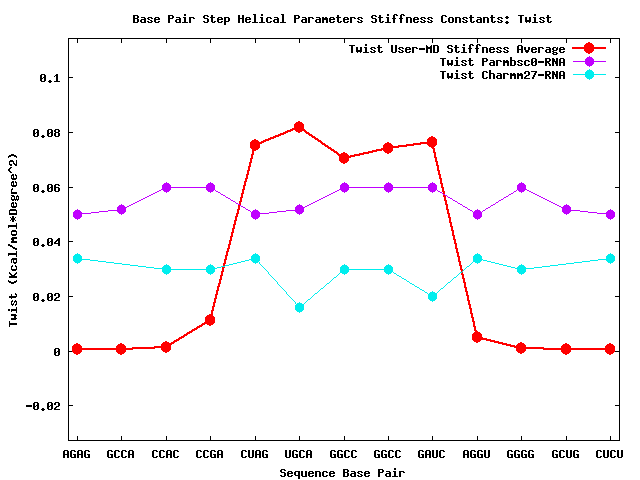

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.067	0.000	0.000	-0.001	0.000	0.000
Slide	0.000	4.229	0.690	0.000	-0.001	0.017
Rise	0.000	0.690	6.819	0.000	-0.010	-0.012
Tilt	-0.001	0.000	0.000	0.000	0.000	0.000
Roll	0.000	-0.001	-0.010	0.000	0.000	0.000
Twist	0.000	0.017	-0.012	0.000	0.000	0.001

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.335	0.000	0.000	-0.027	0.000	0.000
Slide	0.000	3.278	-0.430	0.000	0.036	-0.036
Rise	0.000	-0.437	1.045	0.000	0.005	0.053
Tilt	-0.027	0.000	0.000	0.003	0.000	0.000
Roll	0.000	0.036	0.005	0.000	0.001	-0.001
Twist	0.000	-0.037	0.053	0.000	-0.001	0.005

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.504	0.000	0.000	0.004	0.000	0.000
Slide	0.000	3.458	-0.483	0.000	-0.041	-0.016
Rise	0.000	-0.482	3.092	0.000	0.005	0.012
Tilt	0.004	0.000	0.000	0.000	0.000	0.000
Roll	0.000	-0.042	0.005	0.000	0.004	0.002
Twist	0.000	-0.016	0.012	0.000	0.002	0.001

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.476	0.000	0.000	-0.063	0.000	0.000
Slide	0.000	3.189	-0.710	0.000	0.028	-0.009
Rise	0.000	-0.704	1.917	0.000	0.017	0.043
Tilt	-0.063	0.000	0.000	0.009	0.000	0.000
Roll	0.000	0.029	0.018	0.000	0.006	-0.007
Twist	0.000	-0.009	0.042	0.000	-0.007	0.011

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.413	0.000	0.000	-0.066	0.000	0.000
Slide	0.000	5.807	0.519	0.000	-0.006	-0.104
Rise	0.000	0.519	8.362	0.000	-0.215	-0.197
Tilt	-0.066	0.000	0.000	0.026	0.000	0.000
Roll	0.000	-0.006	-0.215	0.000	0.024	0.000
Twist	0.000	-0.104	-0.197	0.000	0.000	0.075

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.641	0.000	0.000	0.001	0.000	0.000
Slide	0.000	2.791	-0.338	0.000	0.007	-0.000
Rise	0.000	-0.338	6.158	0.000	-0.015	-0.008
Tilt	0.001	0.000	0.000	0.000	0.000	0.000
Roll	0.000	0.007	-0.015	0.000	0.001	-0.000
Twist	0.000	-0.000	-0.008	0.000	-0.000	0.001

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.700	0.000	0.000	-0.008	0.000	0.000
Slide	0.000	5.239	1.162	0.000	0.005	-0.036
Rise	0.000	1.162	10.163	0.000	-0.309	-0.231
Tilt	-0.008	0.000	0.000	0.033	0.000	0.000
Roll	0.000	0.005	-0.309	0.000	0.029	0.003
Twist	0.000	-0.036	-0.231	0.000	0.003	0.076

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.567	0.000	0.000	0.003	0.000	0.000
Slide	0.000	3.987	0.760	0.000	-0.024	0.022
Rise	0.000	0.760	2.858	0.000	0.007	0.008
Tilt	0.003	0.000	0.000	0.000	0.000	0.000
Roll	0.000	-0.024	0.007	0.000	0.006	-0.000
Twist	0.000	0.022	0.008	0.000	-0.000	0.000

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.622	0.000	0.000	0.003	0.000	0.000
Slide	0.000	5.578	0.409	0.000	0.014	-0.015
Rise	0.000	0.409	2.953	0.000	0.023	-0.005
Tilt	0.003	0.000	0.000	0.000	0.000	0.000
Roll	0.000	0.014	0.023	0.000	0.007	-0.001
Twist	0.000	-0.015	-0.005	0.000	-0.001	0.000

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.618	0.000	0.000	-0.120	0.000	0.000
Slide	0.000	5.230	0.196	0.000	-0.005	-0.095
Rise	0.000	0.196	12.041	0.000	-0.337	-0.231
Tilt	-0.120	0.000	0.000	0.046	0.000	0.000
Roll	0.000	-0.005	-0.337	0.000	0.034	0.005
Twist	0.000	-0.095	-0.231	0.000	0.005	0.071

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.928	0.000	0.000	-0.098	0.000	0.000
Slide	0.000	6.391	0.137	0.000	0.004	-0.074
Rise	0.000	0.137	11.171	0.000	-0.333	-0.228
Tilt	-0.098	0.000	0.000	0.041	0.000	0.000
Roll	0.000	0.004	-0.333	0.000	0.032	0.005
Twist	0.000	-0.074	-0.228	0.000	0.005	0.074

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.767	0.000	0.000	0.005	0.000	0.000
Slide	0.000	4.108	0.808	0.000	0.013	-0.009
Rise	0.000	0.807	3.148	0.000	-0.012	-0.016
Tilt	0.005	0.000	0.000	0.000	0.000	0.000
Roll	0.000	0.013	-0.012	0.000	0.002	0.001
Twist	0.000	-0.009	-0.016	0.000	0.001	0.001

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.678	0.000	0.000	0.015	0.000	0.000
Slide	0.000	6.652	-0.295	0.000	-0.065	0.084
Rise	0.000	-0.295	9.731	0.000	-0.300	-0.143
Tilt	0.015	0.000	0.000	0.028	0.000	0.000
Roll	0.000	-0.065	-0.300	0.000	0.028	-0.002
Twist	0.000	0.084	-0.143	0.000	-0.002	0.082

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-agag.2.cte	0.000	0.000

	Mean	Stdev
-aggu.11.cte	0.000	0.000

	Mean	Stdev
-ccac.4.cte	0.000	0.000

	Mean	Stdev
-ccga.5.cte	0.000	0.000

	Mean	Stdev
-cuag.6.cte	0.000	0.000

	Mean	Stdev
-cucu.14.cte	0.000	0.000

	Mean	Stdev
-gauc.10.cte	0.000	0.000

	Mean	Stdev
-gcca.3.cte	0.000	0.000

	Mean	Stdev
-gcug.13.cte	0.000	0.000

	Mean	Stdev
-ggcc.8.cte	0.000	0.000

	Mean	Stdev
-ggcc.9.cte	0.000	0.000

	Mean	Stdev
-gggg.12.cte	0.000	0.000

	Mean	Stdev
-ugca.7.cte	0.000	0.000

	Mean	Stdev
rise-10-GAUC	3.215	0.310

	Mean	Stdev
roll-10-GAUC	10.556	5.531

	Mean	Stdev
shift-10-GAUC	0.000	0.916

	Mean	Stdev
slide-10-GAUC	-1.552	0.342

	Mean	Stdev
tilt-10-GAUC	0.000	4.239

	Mean	Stdev
twist-10-GAUC	32.247	2.892

	Mean	Stdev
rise-11-AGGU	3.863	2.137

	Mean	Stdev
roll-11-AGGU	-37.495	55.758

	Mean	Stdev
shift-11-AGGU	0.000	3.169

	Mean	Stdev
slide-11-AGGU	-3.851	0.720

	Mean	Stdev
tilt-11-AGGU	0.000	36.344

	Mean	Stdev
twist-11-AGGU	-60.816	30.902

	Mean	Stdev
rise-12-GGGG	0.550	0.457

	Mean	Stdev
roll-12-GGGG	4.076	47.066

	Mean	Stdev
shift-12-GGGG	0.000	1.044

	Mean	Stdev
slide-12-GGGG	-0.809	0.435

	Mean	Stdev
tilt-12-GGGG	51.139	57.600

	Mean	Stdev
twist-12-GGGG	-7.497	34.725

	Mean	Stdev
rise-13-GCUG	0.761	0.453

	Mean	Stdev
roll-13-GCUG	-0.194	22.947

	Mean	Stdev
shift-13-GCUG	0.000	1.079

	Mean	Stdev
slide-13-GCUG	-0.121	0.340

	Mean	Stdev
tilt-13-GCUG	23.773	57.507

	Mean	Stdev
twist-13-GCUG	14.330	31.775

	Mean	Stdev
rise-14-CUCU	0.324	0.320

	Mean	Stdev
roll-14-CUCU	4.855	21.290

	Mean	Stdev
shift-14-CUCU	0.000	0.598

	Mean	Stdev
slide-14-CUCU	-0.139	0.464

	Mean	Stdev
tilt-14-CUCU	4.950	39.077

	Mean	Stdev
twist-14-CUCU	10.628	29.143

	Mean	Stdev
rise-2-AGAG	0.288	0.311

	Mean	Stdev
roll-2-AGAG	-5.977	38.003

	Mean	Stdev
shift-2-AGAG	0.000	0.534

	Mean	Stdev
slide-2-AGAG	-0.129	0.402

	Mean	Stdev
tilt-2-AGAG	11.196	66.617

	Mean	Stdev
twist-2-AGAG	5.759	28.390

	Mean	Stdev
rise-3-GCCA	0.627	0.471

	Mean	Stdev
roll-3-GCCA	-1.368	27.983

	Mean	Stdev
shift-3-GCCA	0.000	1.147

	Mean	Stdev
slide-3-GCCA	0.004	0.457

	Mean	Stdev
tilt-3-GCCA	27.704	59.664

	Mean	Stdev
twist-3-GCCA	7.558	34.791

	Mean	Stdev
rise-4-CCAC	1.127	0.473

	Mean	Stdev
roll-4-CCAC	7.138	45.538

	Mean	Stdev
shift-4-CCAC	0.000	1.231

	Mean	Stdev
slide-4-CCAC	-0.830	0.471

	Mean	Stdev
tilt-4-CCAC	30.959	49.920

	Mean	Stdev
twist-4-CCAC	8.033	39.980

	Mean	Stdev
rise-5-CCGA	2.677	2.117

	Mean	Stdev
roll-5-CCGA	-18.986	67.180

	Mean	Stdev
shift-5-CCGA	0.000	4.323

	Mean	Stdev
slide-5-CCGA	-4.352	1.024

	Mean	Stdev
tilt-5-CCGA	0.000	31.553

	Mean	Stdev
twist-5-CCGA	-37.205	49.139

	Mean	Stdev
rise-6-CUAG	3.450	0.315

	Mean	Stdev
roll-6-CUAG	11.951	5.746

	Mean	Stdev
shift-6-CUAG	0.000	1.529

	Mean	Stdev
slide-6-CUAG	-1.667	0.322

	Mean	Stdev
tilt-6-CUAG	0.000	6.038

	Mean	Stdev
twist-6-CUAG	33.850	2.938

	Mean	Stdev
rise-7-UGCA	3.336	0.310

	Mean	Stdev
roll-7-UGCA	21.067	5.772

	Mean	Stdev
shift-7-UGCA	0.000	0.593

	Mean	Stdev
slide-7-UGCA	-1.019	0.305

	Mean	Stdev
tilt-7-UGCA	0.000	4.553

	Mean	Stdev
twist-7-UGCA	35.716	2.758

	Mean	Stdev
rise-8-GGCC	3.341	0.267

	Mean	Stdev
roll-8-GGCC	18.198	4.883

	Mean	Stdev
shift-8-GGCC	0.000	0.670

	Mean	Stdev
slide-8-GGCC	-1.503	0.339

	Mean	Stdev
tilt-8-GGCC	0.000	3.969

	Mean	Stdev
twist-8-GGCC	30.922	3.017

	Mean	Stdev
rise-9-GGCC	3.417	0.284

	Mean	Stdev
roll-9-GGCC	17.337	5.160

	Mean	Stdev
shift-9-GGCC	0.000	0.589

	Mean	Stdev
slide-9-GGCC	-1.553	0.305

	Mean	Stdev
tilt-9-GGCC	0.000	4.050

	Mean	Stdev
twist-9-GGCC	31.189	2.927
