NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12
5'	C	-	G	-	C	-	G	-	A	-	A	-	T	-	T	-	C	-	G	-	C	-	G	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	G	-	C	-	G	-	C	-	T	-	T	-	A	-	A	-	G	-	C	-	G	-	C	5'
	24		23		22		21		20		19		18		17		16		15		14		13

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

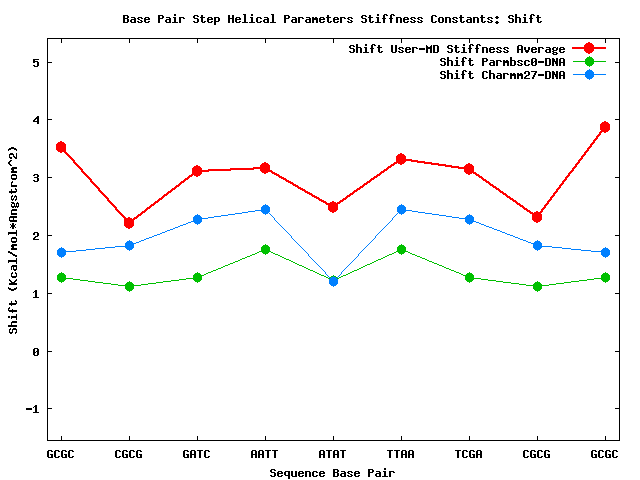

Shift

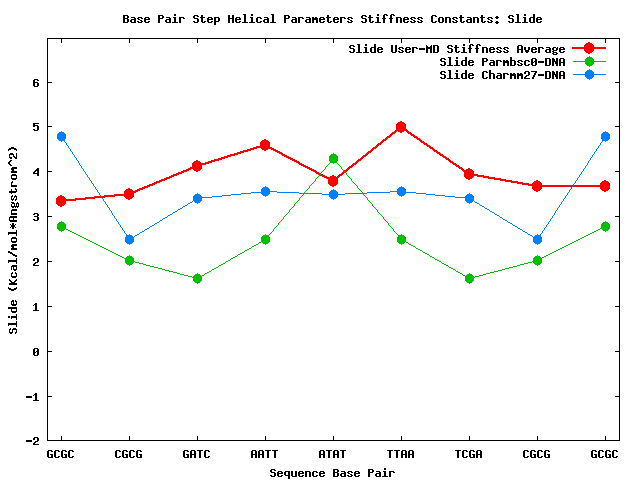

Slide

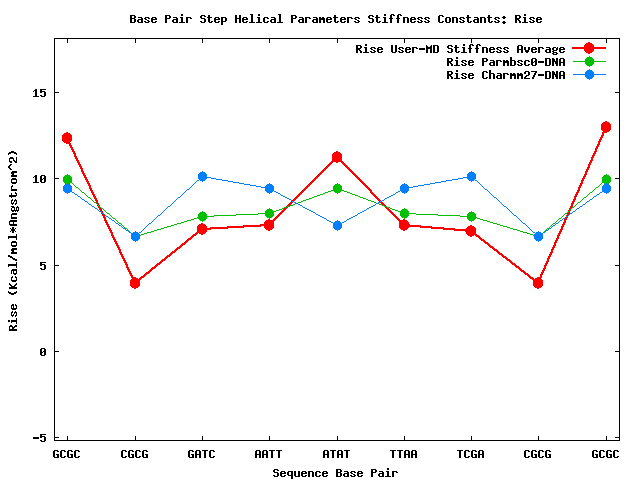

Rise

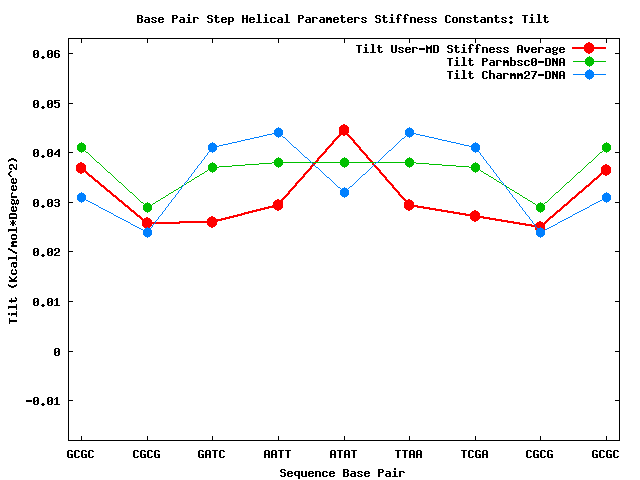

Tilt

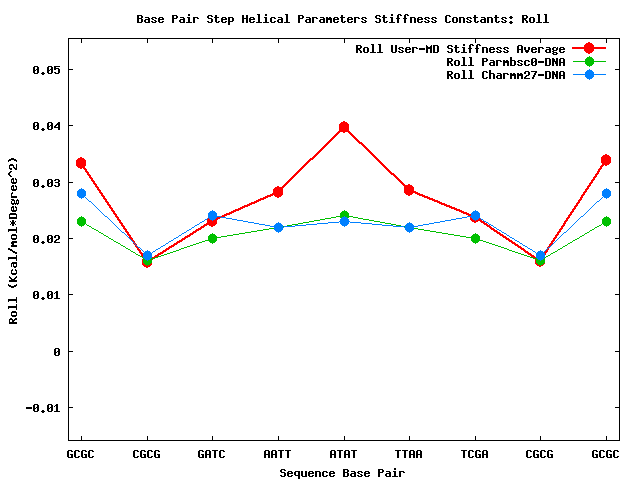

Roll

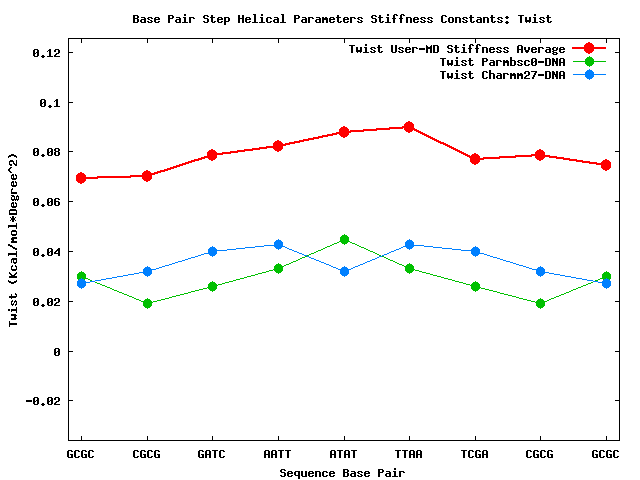

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	3.164	0.000	0.000	0.014	0.000	0.000
Slide	0.000	4.588	2.410	0.000	-0.071	-0.301
Rise	0.000	2.410	7.297	0.000	-0.089	-0.164
Tilt	0.014	0.000	0.000	0.029	0.000	0.000
Roll	0.000	-0.071	-0.089	0.000	0.028	0.011
Twist	0.000	-0.301	-0.164	0.000	0.011	0.082

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.490	0.000	0.000	0.015	0.000	0.000
Slide	0.000	3.773	3.248	0.000	-0.097	-0.331
Rise	0.000	3.248	11.270	0.000	0.013	-0.138
Tilt	0.015	0.000	0.000	0.044	0.000	0.000
Roll	0.000	-0.097	0.013	0.000	0.040	0.011
Twist	0.000	-0.331	-0.138	0.000	0.011	0.088

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.214	0.000	0.000	-0.019	0.000	0.000
Slide	0.000	3.482	1.682	0.000	-0.109	-0.296
Rise	0.000	1.682	3.926	0.000	-0.046	-0.100
Tilt	-0.019	0.000	0.000	0.026	0.000	0.000
Roll	0.000	-0.109	-0.046	0.000	0.016	0.004
Twist	0.000	-0.296	-0.100	0.000	0.004	0.070

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.314	0.000	0.000	-0.020	0.000	0.000
Slide	0.000	3.675	1.661	0.000	-0.103	-0.334
Rise	0.000	1.660	3.930	0.000	-0.040	-0.095
Tilt	-0.020	0.000	0.000	0.025	0.000	0.000
Roll	0.000	-0.103	-0.040	0.000	0.016	0.003
Twist	0.000	-0.334	-0.095	0.000	0.003	0.078

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	3.108	0.000	0.000	0.016	0.000	0.000
Slide	0.000	4.113	2.484	0.000	-0.040	-0.310
Rise	0.000	2.484	7.050	0.000	-0.122	-0.200
Tilt	0.016	0.000	0.000	0.026	0.000	0.000
Roll	0.000	-0.040	-0.122	0.000	0.023	0.010
Twist	0.000	-0.310	-0.200	0.000	0.010	0.079

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	3.863	0.000	0.000	-0.014	0.000	0.000
Slide	0.000	3.678	3.342	0.000	-0.070	-0.317
Rise	0.000	3.342	12.964	0.000	0.013	-0.201
Tilt	-0.014	0.000	0.000	0.036	0.000	0.000
Roll	0.000	-0.070	0.013	0.000	0.034	0.008
Twist	0.000	-0.317	-0.201	0.000	0.008	0.075

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	3.531	0.000	0.000	-0.016	0.000	0.000
Slide	0.000	3.345	3.218	0.000	-0.067	-0.285
Rise	0.000	3.218	12.353	0.000	0.023	-0.224
Tilt	-0.016	0.000	0.000	0.037	0.000	0.000
Roll	0.000	-0.067	0.023	0.000	0.033	0.009
Twist	0.000	-0.285	-0.224	0.000	0.009	0.069

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	3.134	0.000	0.000	0.017	0.000	0.000
Slide	0.000	3.944	2.352	0.000	-0.043	-0.302
Rise	0.000	2.352	6.970	0.000	-0.108	-0.193
Tilt	0.017	0.000	0.000	0.027	0.000	0.000
Roll	0.000	-0.043	-0.108	0.000	0.024	0.011
Twist	0.000	-0.302	-0.193	0.000	0.011	0.077

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	3.320	0.000	0.000	0.021	0.000	0.000
Slide	0.000	4.979	2.566	0.000	-0.063	-0.340
Rise	0.000	2.566	7.279	0.000	-0.085	-0.154
Tilt	0.021	0.000	0.000	0.029	0.000	0.000
Roll	0.000	-0.063	-0.085	0.000	0.028	0.008
Twist	0.000	-0.340	-0.154	0.000	0.008	0.090

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-aatt.5.cte	0.000	0.000

	Mean	Stdev
-atat.6.cte	0.000	0.000

	Mean	Stdev
-cgcg.3.cte	0.000	0.000

	Mean	Stdev
-cgcg.9.cte	0.000	0.000

	Mean	Stdev
-gatc.4.cte	0.000	0.000

	Mean	Stdev
-gcgc.10.cte	0.000	0.000

	Mean	Stdev
-gcgc.2.cte	0.000	0.000

	Mean	Stdev
-tcga.8.cte	0.000	0.000

	Mean	Stdev
-ttaa.7.cte	0.000	0.000

	Mean	Stdev
rise-10-GCGC	3.380	0.247

	Mean	Stdev
roll-10-GCGC	0.516	4.290

	Mean	Stdev
shift-10-GCGC	0.000	0.390

	Mean	Stdev
slide-10-GCGC	-1.722	0.574

	Mean	Stdev
tilt-10-GCGC	0.000	4.011

	Mean	Stdev
twist-10-GCGC	32.357	3.546

	Mean	Stdev
rise-2-GCGC	3.370	0.256

	Mean	Stdev
roll-2-GCGC	0.645	4.349

	Mean	Stdev
shift-2-GCGC	0.000	0.408

	Mean	Stdev
slide-2-GCGC	-1.683	0.593

	Mean	Stdev
tilt-2-GCGC	0.000	3.998

	Mean	Stdev
twist-2-GCGC	32.391	3.642

	Mean	Stdev
rise-3-CGCG	3.650	0.438

	Mean	Stdev
roll-3-CGCG	3.766	7.066

	Mean	Stdev
shift-3-CGCG	0.000	0.516

	Mean	Stdev
slide-3-CGCG	-1.920	0.645

	Mean	Stdev
tilt-3-CGCG	0.000	4.795

	Mean	Stdev
twist-3-CGCG	32.126	3.732

	Mean	Stdev
rise-4-GATC	3.387	0.338

	Mean	Stdev
roll-4-GATC	3.395	5.421

	Mean	Stdev
shift-4-GATC	0.000	0.435

	Mean	Stdev
slide-4-GATC	-1.643	0.493

	Mean	Stdev
tilt-4-GATC	0.000	4.757

	Mean	Stdev
twist-4-GATC	32.897	3.338

	Mean	Stdev
rise-5-AATT	3.222	0.314

	Mean	Stdev
roll-5-AATT	0.647	4.755

	Mean	Stdev
shift-5-AATT	0.000	0.431

	Mean	Stdev
slide-5-AATT	-1.491	0.441

	Mean	Stdev
tilt-5-AATT	0.000	4.471

	Mean	Stdev
twist-5-AATT	32.505	3.109

	Mean	Stdev
rise-6-ATAT	3.370	0.273

	Mean	Stdev
roll-6-ATAT	-1.872	4.033

	Mean	Stdev
shift-6-ATAT	0.000	0.486

	Mean	Stdev
slide-6-ATAT	-1.803	0.579

	Mean	Stdev
tilt-6-ATAT	0.000	3.636

	Mean	Stdev
twist-6-ATAT	32.163	3.237

	Mean	Stdev
rise-7-TTAA	3.233	0.317

	Mean	Stdev
roll-7-TTAA	0.330	4.661

	Mean	Stdev
shift-7-TTAA	0.000	0.421

	Mean	Stdev
slide-7-TTAA	-1.494	0.433

	Mean	Stdev
tilt-7-TTAA	0.000	4.481

	Mean	Stdev
twist-7-TTAA	32.681	2.985

	Mean	Stdev
rise-8-TCGA	3.380	0.333

	Mean	Stdev
roll-8-TCGA	3.139	5.292

	Mean	Stdev
shift-8-TCGA	0.000	0.433

	Mean	Stdev
slide-8-TCGA	-1.642	0.499

	Mean	Stdev
tilt-8-TCGA	0.000	4.664

	Mean	Stdev
twist-8-TCGA	32.996	3.378

	Mean	Stdev
rise-9-CGCG	3.656	0.435

	Mean	Stdev
roll-9-CGCG	3.277	6.934

	Mean	Stdev
shift-9-CGCG	0.000	0.505

	Mean	Stdev
slide-9-CGCG	-1.971	0.637

	Mean	Stdev
tilt-9-CGCG	0.000	4.874

	Mean	Stdev
twist-9-CGCG	31.953	3.652
