NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12
5'	C	-	G	-	C	-	G	-	A	-	A	-	T	-	T	-	C	-	G	-	C	-	G	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	G	-	C	-	G	-	C	-	T	-	T	-	A	-	A	-	G	-	C	-	G	-	C	5'
	24		23		22		21		20		19		18		17		16		15		14		13

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

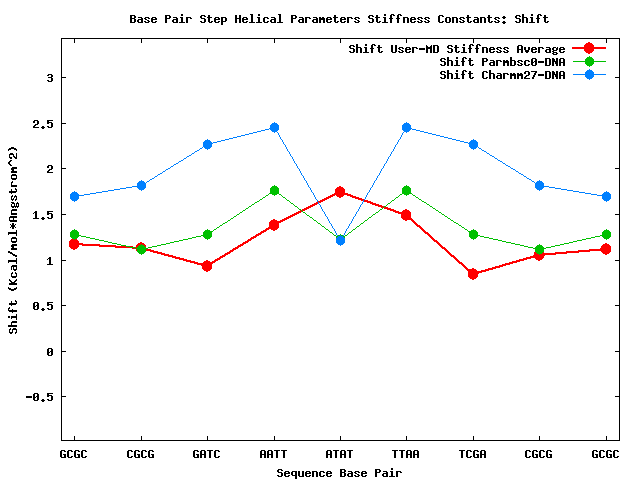

Shift

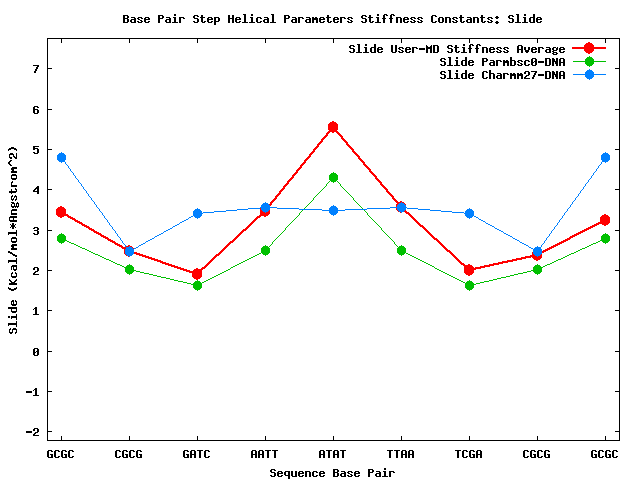

Slide

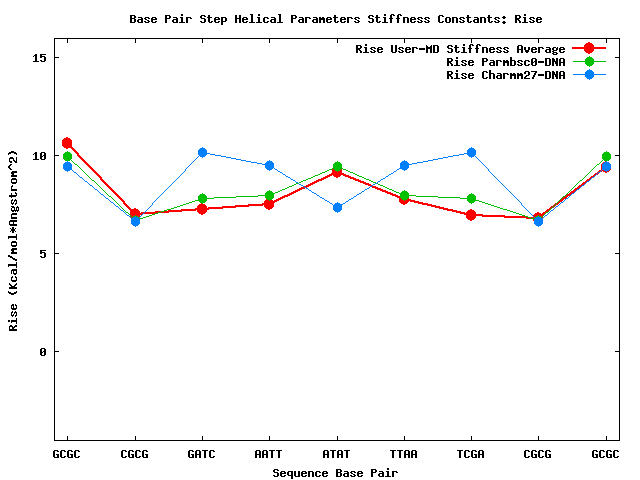

Rise

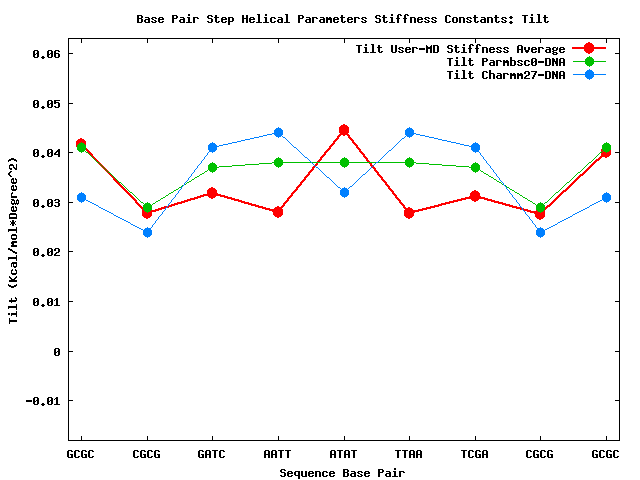

Tilt

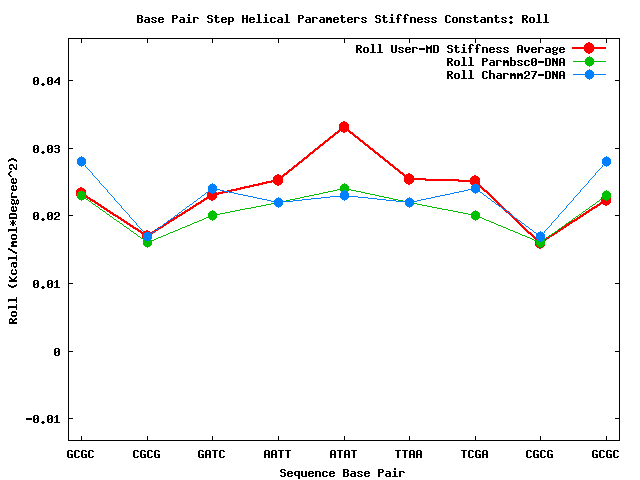

Roll

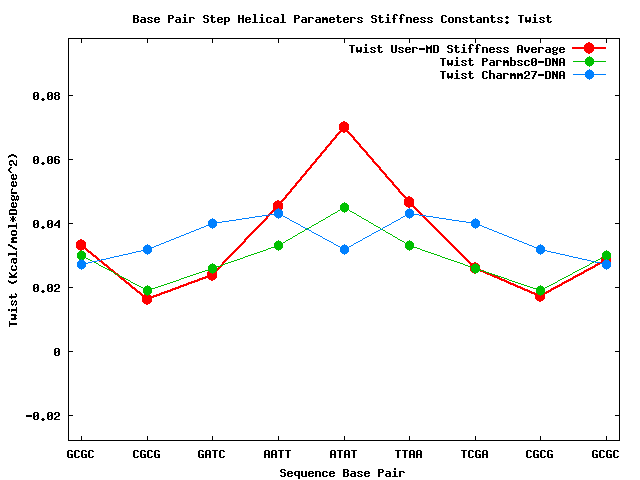

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.379	0.000	0.000	-0.038	0.000	0.000
Slide	0.000	3.458	1.135	0.000	-0.092	-0.244
Rise	0.000	1.135	7.505	0.000	-0.052	-0.147
Tilt	-0.038	0.000	0.000	0.028	0.000	0.000
Roll	0.000	-0.092	-0.052	0.000	0.025	0.011
Twist	0.000	-0.244	-0.147	0.000	0.011	0.045

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.739	0.000	0.000	0.011	0.000	0.000
Slide	0.000	5.534	2.309	0.000	-0.022	-0.218
Rise	0.000	2.309	9.104	0.000	-0.008	-0.160
Tilt	0.011	0.000	0.000	0.045	0.000	0.000
Roll	0.000	-0.022	-0.008	0.000	0.033	0.009
Twist	0.000	-0.218	-0.160	0.000	0.009	0.070

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.122	0.000	0.000	-0.101	0.000	0.000
Slide	0.000	2.470	0.451	0.000	0.009	-0.090
Rise	0.000	0.451	6.970	0.000	-0.080	-0.206
Tilt	-0.101	0.000	0.000	0.028	0.000	0.000
Roll	0.000	0.009	-0.080	0.000	0.017	0.006
Twist	0.000	-0.090	-0.206	0.000	0.006	0.016

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.054	0.000	0.000	-0.112	0.000	0.000
Slide	0.000	2.371	0.419	0.000	0.015	-0.090
Rise	0.000	0.419	6.779	0.000	-0.072	-0.208
Tilt	-0.112	0.000	0.000	0.027	0.000	0.000
Roll	0.000	0.015	-0.072	0.000	0.016	0.007
Twist	0.000	-0.090	-0.208	0.000	0.007	0.017

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.929	0.000	0.000	-0.060	0.000	0.000
Slide	0.000	1.890	1.383	0.000	-0.045	-0.119
Rise	0.000	1.383	7.252	0.000	-0.036	-0.168
Tilt	-0.060	0.000	0.000	0.032	0.000	0.000
Roll	0.000	-0.045	-0.036	0.000	0.023	0.012
Twist	0.000	-0.119	-0.168	0.000	0.012	0.024

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.116	0.000	0.000	-0.098	0.000	0.000
Slide	0.000	3.240	1.857	0.000	0.063	-0.106
Rise	0.000	1.857	9.364	0.000	0.121	-0.178
Tilt	-0.098	0.000	0.000	0.040	0.000	0.000
Roll	0.000	0.063	0.121	0.000	0.022	0.010
Twist	0.000	-0.106	-0.178	0.000	0.010	0.028

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.165	0.000	0.000	-0.103	0.000	0.000
Slide	0.000	3.439	2.645	0.000	0.085	-0.144
Rise	0.000	2.645	10.593	0.000	0.160	-0.232
Tilt	-0.103	0.000	0.000	0.042	0.000	0.000
Roll	0.000	0.085	0.159	0.000	0.023	0.008
Twist	0.000	-0.144	-0.232	0.000	0.008	0.033

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.846	0.000	0.000	-0.063	0.000	0.000
Slide	0.000	2.005	1.233	0.000	-0.059	-0.132
Rise	0.000	1.233	6.928	0.000	-0.044	-0.160
Tilt	-0.063	0.000	0.000	0.031	0.000	0.000
Roll	0.000	-0.059	-0.044	0.000	0.025	0.013
Twist	0.000	-0.132	-0.160	0.000	0.013	0.026

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.489	0.000	0.000	-0.045	0.000	0.000
Slide	0.000	3.570	1.423	0.000	-0.091	-0.247
Rise	0.000	1.423	7.767	0.000	-0.057	-0.163
Tilt	-0.045	0.000	0.000	0.028	0.000	0.000
Roll	0.000	-0.091	-0.057	0.000	0.025	0.011
Twist	0.000	-0.247	-0.163	0.000	0.011	0.047

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-aatt.5.cte	0.000	0.000

	Mean	Stdev
-atat.6.cte	0.000	0.000

	Mean	Stdev
-cgcg.3.cte	0.000	0.000

	Mean	Stdev
-cgcg.9.cte	0.000	0.000

	Mean	Stdev
-gatc.4.cte	0.000	0.000

	Mean	Stdev
-gcgc.10.cte	0.000	0.000

	Mean	Stdev
-gcgc.2.cte	0.000	0.000

	Mean	Stdev
-tcga.8.cte	0.000	0.000

	Mean	Stdev
-ttaa.7.cte	0.000	0.000

	Mean	Stdev
rise-10-GCGC	3.347	0.301

	Mean	Stdev
roll-10-GCGC	-2.029	6.757

	Mean	Stdev
shift-10-GCGC	0.000	0.817

	Mean	Stdev
slide-10-GCGC	-0.096	0.504

	Mean	Stdev
tilt-10-GCGC	0.000	4.316

	Mean	Stdev
twist-10-GCGC	32.723	6.292

	Mean	Stdev
rise-2-GCGC	3.356	0.294

	Mean	Stdev
roll-2-GCGC	-2.358	6.474

	Mean	Stdev
shift-2-GCGC	0.000	0.802

	Mean	Stdev
slide-2-GCGC	-0.153	0.524

	Mean	Stdev
tilt-2-GCGC	0.000	4.246

	Mean	Stdev
twist-2-GCGC	33.624	5.756

	Mean	Stdev
rise-3-CGCG	3.131	0.378

	Mean	Stdev
roll-3-CGCG	8.820	6.649

	Mean	Stdev
shift-3-CGCG	0.000	0.880

	Mean	Stdev
slide-3-CGCG	0.114	0.584

	Mean	Stdev
tilt-3-CGCG	0.000	5.593

	Mean	Stdev
twist-3-CGCG	29.822	9.480

	Mean	Stdev
rise-4-GATC	3.374	0.320

	Mean	Stdev
roll-4-GATC	3.093	6.019

	Mean	Stdev
shift-4-GATC	0.000	0.847

	Mean	Stdev
slide-4-GATC	0.042	0.688

	Mean	Stdev
tilt-4-GATC	0.000	4.578

	Mean	Stdev
twist-4-GATC	34.429	7.230

	Mean	Stdev
rise-5-AATT	3.371	0.290

	Mean	Stdev
roll-5-AATT	2.649	5.143

	Mean	Stdev
shift-5-AATT	0.000	0.665

	Mean	Stdev
slide-5-AATT	-0.299	0.531

	Mean	Stdev
tilt-5-AATT	0.000	4.667

	Mean	Stdev
twist-5-AATT	35.677	4.662

	Mean	Stdev
rise-6-ATAT	3.352	0.270

	Mean	Stdev
roll-6-ATAT	-0.538	4.293

	Mean	Stdev
shift-6-ATAT	0.000	0.581

	Mean	Stdev
slide-6-ATAT	-0.825	0.362

	Mean	Stdev
tilt-6-ATAT	0.000	3.630

	Mean	Stdev
twist-6-ATAT	32.385	3.158

	Mean	Stdev
rise-7-TTAA	3.375	0.288

	Mean	Stdev
roll-7-TTAA	2.770	5.130

	Mean	Stdev
shift-7-TTAA	0.000	0.644

	Mean	Stdev
slide-7-TTAA	-0.274	0.520

	Mean	Stdev
tilt-7-TTAA	0.000	4.723

	Mean	Stdev
twist-7-TTAA	35.819	4.570

	Mean	Stdev
rise-8-TCGA	3.371	0.319

	Mean	Stdev
roll-8-TCGA	3.296	5.690

	Mean	Stdev
shift-8-TCGA	0.000	0.904

	Mean	Stdev
slide-8-TCGA	0.106	0.670

	Mean	Stdev
tilt-8-TCGA	0.000	4.704

	Mean	Stdev
twist-8-TCGA	34.448	6.799

	Mean	Stdev
rise-9-CGCG	3.154	0.384

	Mean	Stdev
roll-9-CGCG	7.820	6.982

	Mean	Stdev
shift-9-CGCG	0.000	0.992

	Mean	Stdev
slide-9-CGCG	0.194	0.605

	Mean	Stdev
tilt-9-CGCG	0.000	6.144

	Mean	Stdev
twist-9-CGCG	31.083	9.391
