NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12
5'	C	-	A	-	A	-	T	-	T	-	T	-	T	-	C	-	C	-	T	-	C	-	G	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	G	-	T	-	T	-	A	-	A	-	A	-	A	-	G	-	G	-	A	-	G	-	C	5'
	24		23		22		21		20		19		18		17		16		15		14		13

Interactive Sequence (see Help)

Average Results

Results by Time

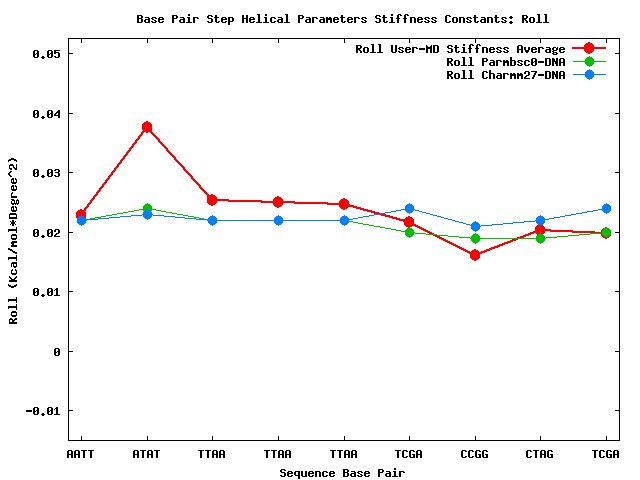

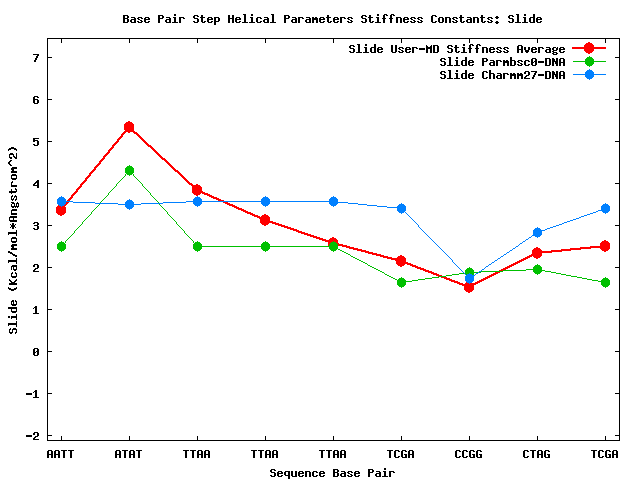

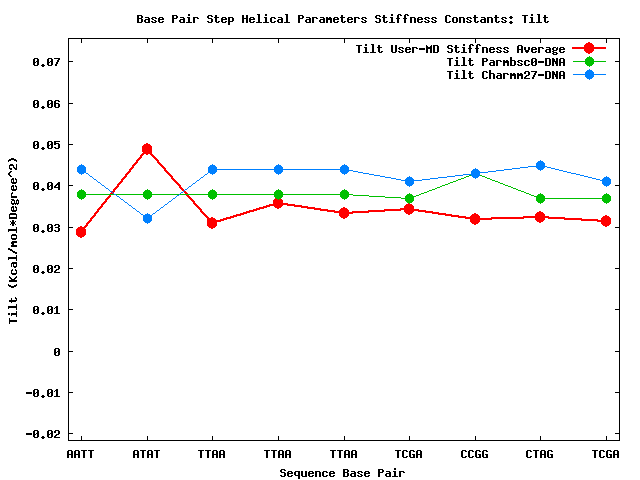

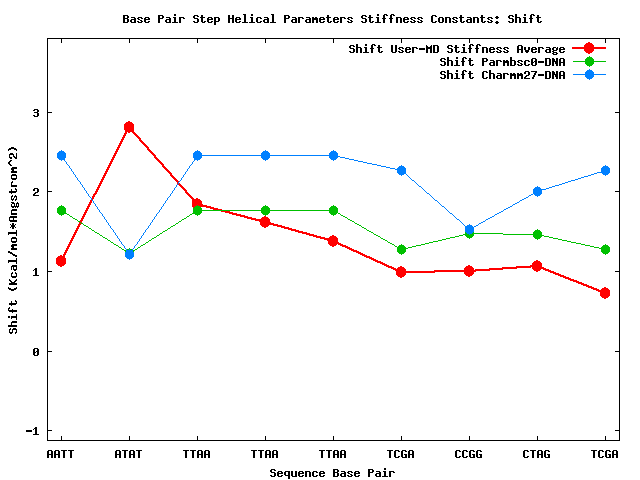

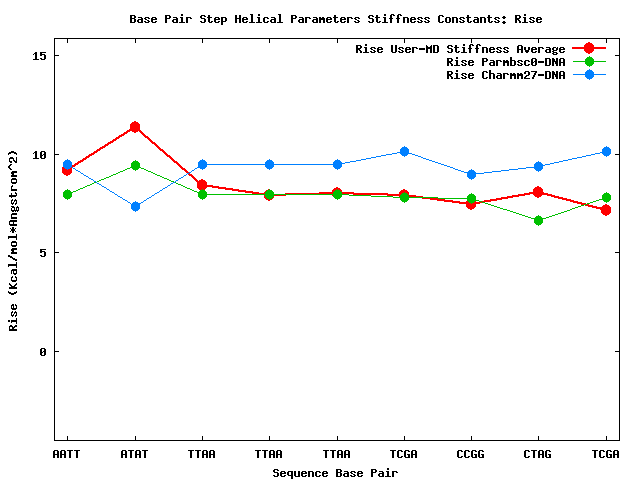

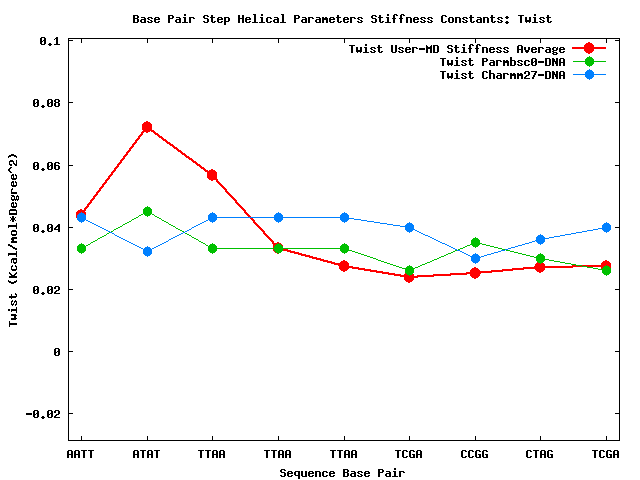

Stiffness by Helical Parameters

Stiffness By Base Pair Step

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.129	0.000	0.000	-0.111	0.000	0.000
Slide	0.000	3.361	0.984	0.000	-0.053	-0.217
Rise	0.000	0.984	9.156	0.000	-0.030	-0.177
Tilt	-0.111	0.000	0.000	0.029	0.000	0.000
Roll	0.000	-0.053	-0.030	0.000	0.023	0.006
Twist	0.000	-0.217	-0.177	0.000	0.006	0.044

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.803	0.000	0.000	-0.023	0.000	0.000
Slide	0.000	5.324	2.665	0.000	-0.008	-0.189
Rise	0.000	2.665	11.334	0.000	0.047	-0.160
Tilt	-0.023	0.000	0.000	0.049	0.000	0.000
Roll	0.000	-0.008	0.047	0.000	0.038	0.005
Twist	0.000	-0.189	-0.160	0.000	0.005	0.072

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.006	0.000	0.000	-0.109	0.000	0.000
Slide	0.000	1.516	1.679	0.000	0.012	-0.064
Rise	0.000	1.679	7.427	0.000	-0.020	-0.168
Tilt	-0.109	0.000	0.000	0.032	0.000	0.000
Roll	0.000	0.012	-0.020	0.000	0.016	0.004
Twist	0.000	-0.064	-0.168	0.000	0.004	0.025

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.058	0.000	0.000	-0.067	0.000	0.000
Slide	0.000	2.338	1.813	0.000	-0.056	-0.106
Rise	0.000	1.813	8.030	0.000	-0.037	-0.180
Tilt	-0.067	0.000	0.000	0.032	0.000	0.000
Roll	0.000	-0.056	-0.037	0.000	0.020	0.006
Twist	0.000	-0.106	-0.180	0.000	0.006	0.027

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.720	0.000	0.000	-0.081	0.000	0.000
Slide	0.000	2.503	0.467	0.000	-0.052	-0.150
Rise	0.000	0.467	7.133	0.000	-0.046	-0.142
Tilt	-0.081	0.000	0.000	0.031	0.000	0.000
Roll	0.000	-0.052	-0.046	0.000	0.020	0.008
Twist	0.000	-0.150	-0.142	0.000	0.008	0.027

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.987	0.000	0.000	-0.086	0.000	0.000
Slide	0.000	2.145	1.243	0.000	-0.049	-0.111
Rise	0.000	1.243	7.923	0.000	-0.053	-0.167
Tilt	-0.086	0.000	0.000	0.034	0.000	0.000
Roll	0.000	-0.049	-0.053	0.000	0.022	0.010
Twist	0.000	-0.111	-0.167	0.000	0.010	0.024

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.842	0.000	0.000	-0.103	0.000	0.000
Slide	0.000	3.833	1.218	0.000	-0.030	-0.298
Rise	0.000	1.218	8.408	0.000	-0.046	-0.146
Tilt	-0.103	0.000	0.000	0.031	0.000	0.000
Roll	0.000	-0.030	-0.046	0.000	0.025	0.004
Twist	0.000	-0.298	-0.146	0.000	0.004	0.057

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.608	0.000	0.000	-0.074	0.000	0.000
Slide	0.000	3.120	1.173	0.000	-0.064	-0.186
Rise	0.000	1.173	7.884	0.000	-0.065	-0.165
Tilt	-0.074	0.000	0.000	0.036	0.000	0.000
Roll	0.000	-0.064	-0.065	0.000	0.025	0.008
Twist	0.000	-0.186	-0.165	0.000	0.008	0.033

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.379	0.000	0.000	-0.069	0.000	0.000
Slide	0.000	2.569	1.357	0.000	-0.096	-0.134
Rise	0.000	1.357	7.977	0.000	-0.066	-0.185
Tilt	-0.069	0.000	0.000	0.033	0.000	0.000
Roll	0.000	-0.096	-0.066	0.000	0.025	0.009
Twist	0.000	-0.134	-0.185	0.000	0.009	0.027

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-aatt.2.cte	0.000	0.000

	Mean	Stdev
-atat.3.cte	0.000	0.000

	Mean	Stdev
-ccgg.8.cte	0.000	0.000

	Mean	Stdev
-ctag.9.cte	0.000	0.000

	Mean	Stdev
-tcga.10.cte	0.000	0.000

	Mean	Stdev
-tcga.7.cte	0.000	0.000

	Mean	Stdev
-ttaa.4.cte	0.000	0.000

	Mean	Stdev
-ttaa.5.cte	0.000	0.000

	Mean	Stdev
-ttaa.6.cte	0.000	0.000

	Mean	Stdev
rise-10-TCGA	3.293	0.304

	Mean	Stdev
roll-10-TCGA	0.847	5.776

	Mean	Stdev
shift-10-TCGA	0.000	1.070

	Mean	Stdev
slide-10-TCGA	0.170	0.594

	Mean	Stdev
tilt-10-TCGA	0.000	5.127

	Mean	Stdev
twist-10-TCGA	34.954	6.107

	Mean	Stdev
rise-2-AATT	3.315	0.264

	Mean	Stdev
roll-2-AATT	0.128	5.204

	Mean	Stdev
shift-2-AATT	0.000	0.915

	Mean	Stdev
slide-2-AATT	-0.094	0.509

	Mean	Stdev
tilt-2-AATT	0.000	5.740

	Mean	Stdev
twist-2-AATT	38.403	4.581

	Mean	Stdev
rise-3-ATAT	3.321	0.244

	Mean	Stdev
roll-3-ATAT	-2.547	3.988

	Mean	Stdev
shift-3-ATAT	0.000	0.458

	Mean	Stdev
slide-3-ATAT	-0.949	0.366

	Mean	Stdev
tilt-3-ATAT	0.000	3.471

	Mean	Stdev
twist-3-ATAT	32.629	3.023

	Mean	Stdev
rise-4-TTAA	3.351	0.272

	Mean	Stdev
roll-4-TTAA	0.050	4.857

	Mean	Stdev
shift-4-TTAA	0.000	0.625

	Mean	Stdev
slide-4-TTAA	-0.502	0.512

	Mean	Stdev
tilt-4-TTAA	0.000	4.838

	Mean	Stdev
twist-4-TTAA	37.324	4.212

	Mean	Stdev
rise-5-TTAA	3.351	0.289

	Mean	Stdev
roll-5-TTAA	0.722	5.080

	Mean	Stdev
shift-5-TTAA	0.000	0.634

	Mean	Stdev
slide-5-TTAA	-0.449	0.535

	Mean	Stdev
tilt-5-TTAA	0.000	4.265

	Mean	Stdev
twist-5-TTAA	35.226	5.425

	Mean	Stdev
rise-6-TTAA	3.284	0.298

	Mean	Stdev
roll-6-TTAA	1.532	5.409

	Mean	Stdev
shift-6-TTAA	0.000	0.689

	Mean	Stdev
slide-6-TTAA	-0.357	0.577

	Mean	Stdev
tilt-6-TTAA	0.000	4.425

	Mean	Stdev
twist-6-TTAA	34.001	5.751

	Mean	Stdev
rise-7-TCGA	3.298	0.298

	Mean	Stdev
roll-7-TCGA	2.081	5.802

	Mean	Stdev
shift-7-TCGA	0.000	0.873

	Mean	Stdev
slide-7-TCGA	-0.127	0.607

	Mean	Stdev
tilt-7-TCGA	0.000	4.692

	Mean	Stdev
twist-7-TCGA	35.033	6.458

	Mean	Stdev
rise-8-CCGG	3.506	0.338

	Mean	Stdev
roll-8-CCGG	4.024	6.214

	Mean	Stdev
shift-8-CCGG	0.000	0.964

	Mean	Stdev
slide-8-CCGG	-0.489	0.738

	Mean	Stdev
tilt-8-CCGG	0.000	5.426

	Mean	Stdev
twist-8-CCGG	34.775	5.444

	Mean	Stdev
rise-9-CTAG	3.280	0.308

	Mean	Stdev
roll-9-CTAG	2.655	5.695

	Mean	Stdev
shift-9-CTAG	0.000	0.799

	Mean	Stdev
slide-9-CTAG	-0.453	0.589

	Mean	Stdev
tilt-9-CTAG	0.000	4.575

	Mean	Stdev
twist-9-CTAG	33.211	5.413
