NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12		13
5'	G	-	A	-	C	-	T	-	A	-	A	-	G	-	T	-	C	-	A	-	A	-	C	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	T	-	G	-	A	-	T	-	T	-	C	-	A	-	G	-	T	-	T	-	G	-	G	5'
	26		25		24		23		22		21		20		19		18		17		16		15		14

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

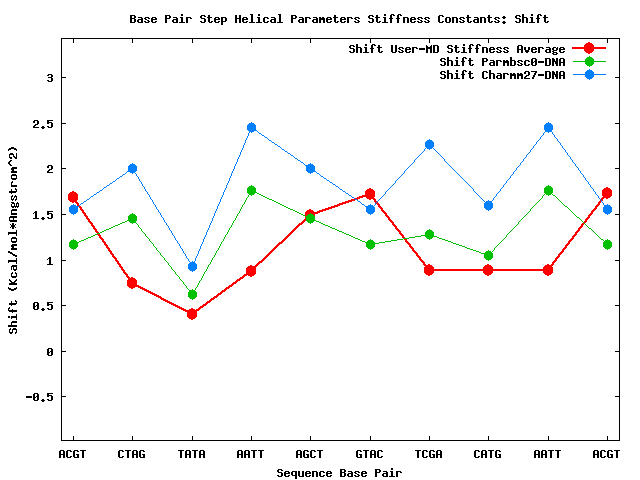

Shift

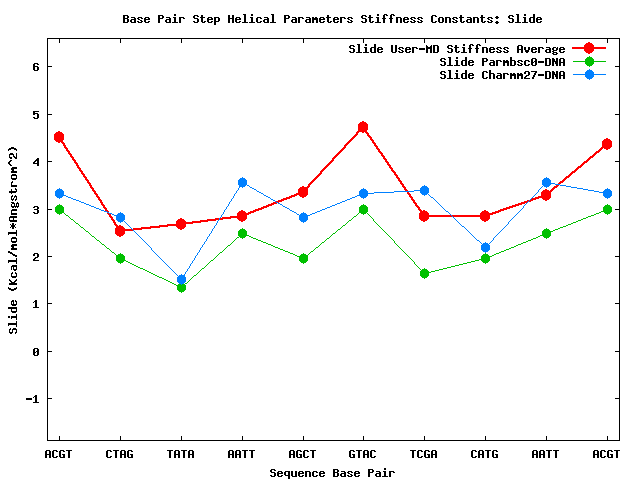

Slide

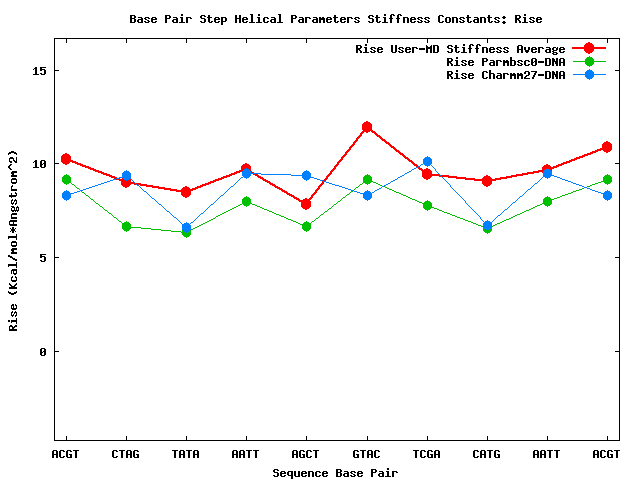

Rise

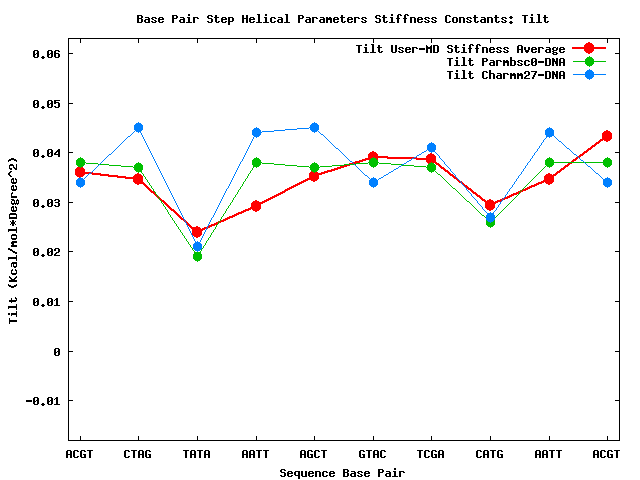

Tilt

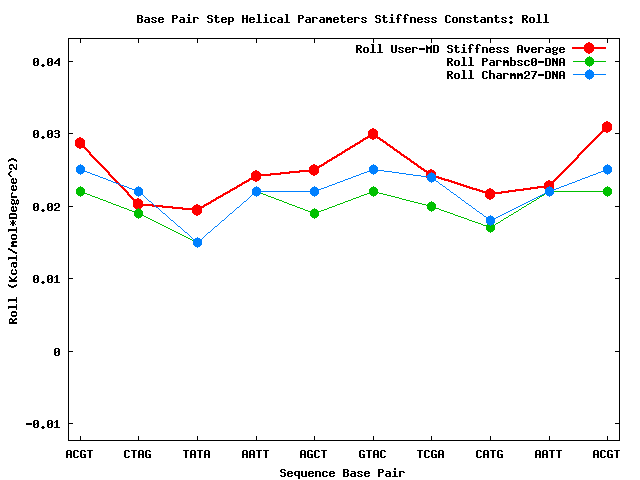

Roll

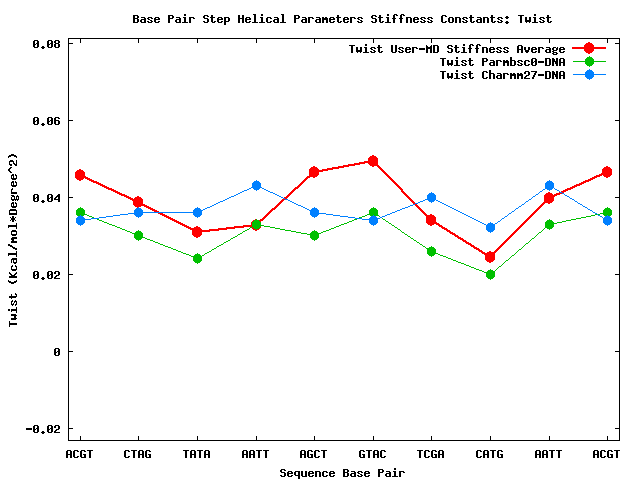

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.888	0.000	0.000	-0.090	0.000	0.000
Slide	0.000	3.292	0.983	0.000	-0.062	-0.226
Rise	0.000	0.983	9.622	0.000	0.000	-0.186
Tilt	-0.090	0.000	0.000	0.035	0.000	0.000
Roll	0.000	-0.062	0.000	0.000	0.023	0.011
Twist	0.000	-0.226	-0.186	0.000	0.011	0.040

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.877	0.000	0.000	-0.063	0.000	0.000
Slide	0.000	2.843	0.712	0.000	-0.071	-0.165
Rise	0.000	0.712	9.699	0.000	-0.005	-0.162
Tilt	-0.063	0.000	0.000	0.029	0.000	0.000
Roll	0.000	-0.071	-0.005	0.000	0.024	0.010
Twist	0.000	-0.165	-0.162	0.000	0.010	0.033

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.732	0.000	0.000	-0.071	0.000	0.000
Slide	0.000	4.353	3.433	0.000	0.048	-0.170
Rise	0.000	3.433	10.889	0.000	0.087	-0.229
Tilt	-0.071	0.000	0.000	0.043	0.000	0.000
Roll	0.000	0.048	0.087	0.000	0.031	0.005
Twist	0.000	-0.170	-0.229	0.000	0.005	0.046

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.689	0.000	0.000	-0.040	0.000	0.000
Slide	0.000	4.516	3.264	0.000	0.021	-0.133
Rise	0.000	3.264	10.232	0.000	0.054	-0.225
Tilt	-0.040	0.000	0.000	0.036	0.000	0.000
Roll	0.000	0.021	0.054	0.000	0.029	0.006
Twist	0.000	-0.133	-0.225	0.000	0.006	0.046

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.486	0.000	0.000	-0.123	0.000	0.000
Slide	0.000	3.349	1.760	0.000	-0.054	-0.219
Rise	0.000	1.760	7.850	0.000	-0.055	-0.170
Tilt	-0.123	0.000	0.000	0.035	0.000	0.000
Roll	0.000	-0.054	-0.055	0.000	0.025	0.004
Twist	0.000	-0.219	-0.170	0.000	0.004	0.046

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.881	0.000	0.000	-0.059	0.000	0.000
Slide	0.000	2.838	0.715	0.000	0.006	-0.109
Rise	0.000	0.715	9.025	0.000	-0.153	-0.276
Tilt	-0.059	0.000	0.000	0.029	0.000	0.000
Roll	0.000	0.006	-0.153	0.000	0.022	0.012
Twist	0.000	-0.109	-0.276	0.000	0.012	0.024

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.738	0.000	0.000	-0.106	0.000	0.000
Slide	0.000	2.516	1.749	0.000	-0.029	-0.125
Rise	0.000	1.749	9.007	0.000	-0.026	-0.188
Tilt	-0.106	0.000	0.000	0.035	0.000	0.000
Roll	0.000	-0.029	-0.026	0.000	0.020	0.005
Twist	0.000	-0.125	-0.188	0.000	0.005	0.039

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.716	0.000	0.000	-0.034	0.000	0.000
Slide	0.000	4.714	3.429	0.000	0.019	-0.156
Rise	0.000	3.429	11.915	0.000	0.092	-0.211
Tilt	-0.034	0.000	0.000	0.039	0.000	0.000
Roll	0.000	0.019	0.092	0.000	0.030	0.004
Twist	0.000	-0.156	-0.211	0.000	0.004	0.049

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.407	0.000	0.000	-0.029	0.000	0.000
Slide	0.000	2.670	0.695	0.000	0.004	-0.157
Rise	0.000	0.695	8.474	0.000	-0.112	-0.224
Tilt	-0.029	0.000	0.000	0.024	0.000	0.000
Roll	0.000	0.004	-0.112	0.000	0.019	0.014
Twist	0.000	-0.157	-0.224	0.000	0.014	0.031

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.888	0.000	0.000	-0.106	0.000	0.000
Slide	0.000	2.850	1.355	0.000	-0.049	-0.132
Rise	0.000	1.355	9.447	0.000	-0.034	-0.167
Tilt	-0.106	0.000	0.000	0.039	0.000	0.000
Roll	0.000	-0.049	-0.034	0.000	0.024	0.011
Twist	0.000	-0.132	-0.167	0.000	0.011	0.034

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-aatt.10.cte	0.000	0.000

	Mean	Stdev
-aatt.5.cte	0.000	0.000

	Mean	Stdev
-acgt.11.cte	0.000	0.000

	Mean	Stdev
-acgt.2.cte	0.000	0.000

	Mean	Stdev
-agct.6.cte	0.000	0.000

	Mean	Stdev
-catg.9.cte	0.000	0.000

	Mean	Stdev
-ctag.3.cte	0.000	0.000

	Mean	Stdev
-gtac.7.cte	0.000	0.000

	Mean	Stdev
-tata.4.cte	0.000	0.000

	Mean	Stdev
-tcga.8.cte	0.000	0.000

	Mean	Stdev
rise-10-AATT	3.254	0.261

	Mean	Stdev
roll-10-AATT	-1.059	5.480

	Mean	Stdev
shift-10-AATT	0.000	0.946

	Mean	Stdev
slide-10-AATT	-0.083	0.540

	Mean	Stdev
tilt-10-AATT	0.000	4.798

	Mean	Stdev
twist-10-AATT	36.808	5.340

	Mean	Stdev
rise-11-ACGT	3.456	0.274

	Mean	Stdev
roll-11-ACGT	-1.440	4.526

	Mean	Stdev
shift-11-ACGT	0.000	0.603

	Mean	Stdev
slide-11-ACGT	-0.765	0.442

	Mean	Stdev
tilt-11-ACGT	0.000	3.811

	Mean	Stdev
twist-11-ACGT	34.376	3.979

	Mean	Stdev
rise-2-ACGT	3.513	0.282

	Mean	Stdev
roll-2-ACGT	-1.673	4.655

	Mean	Stdev
shift-2-ACGT	0.000	0.597

	Mean	Stdev
slide-2-ACGT	-0.873	0.417

	Mean	Stdev
tilt-2-ACGT	0.000	4.085

	Mean	Stdev
twist-2-ACGT	33.898	3.943

	Mean	Stdev
rise-3-CTAG	3.361	0.280

	Mean	Stdev
roll-3-CTAG	1.297	5.500

	Mean	Stdev
shift-3-CTAG	0.000	1.188

	Mean	Stdev
slide-3-CTAG	-0.296	0.549

	Mean	Stdev
tilt-3-CTAG	0.000	5.480

	Mean	Stdev
twist-3-CTAG	37.091	4.398

	Mean	Stdev
rise-4-TATA	3.066	0.295

	Mean	Stdev
roll-4-TATA	7.597	7.662

	Mean	Stdev
shift-4-TATA	0.000	1.257

	Mean	Stdev
slide-4-TATA	-0.031	0.643

	Mean	Stdev
tilt-4-TATA	0.000	5.182

	Mean	Stdev
twist-4-TATA	29.749	7.701

	Mean	Stdev
rise-5-AATT	3.199	0.258

	Mean	Stdev
roll-5-AATT	0.105	5.356

	Mean	Stdev
shift-5-AATT	0.000	0.891

	Mean	Stdev
slide-5-AATT	-0.119	0.543

	Mean	Stdev
tilt-5-AATT	0.000	4.893

	Mean	Stdev
twist-5-AATT	34.631	5.464

	Mean	Stdev
rise-6-AGCT	3.528	0.294

	Mean	Stdev
roll-6-AGCT	2.707	4.954

	Mean	Stdev
shift-6-AGCT	0.000	0.745

	Mean	Stdev
slide-6-AGCT	-0.759	0.523

	Mean	Stdev
tilt-6-AGCT	0.000	4.839

	Mean	Stdev
twist-6-AGCT	36.833	4.317

	Mean	Stdev
rise-7-GTAC	3.445	0.256

	Mean	Stdev
roll-7-GTAC	-1.472	4.543

	Mean	Stdev
shift-7-GTAC	0.000	0.590

	Mean	Stdev
slide-7-GTAC	-0.891	0.408

	Mean	Stdev
tilt-7-GTAC	0.000	3.913

	Mean	Stdev
twist-7-GTAC	33.915	3.736

	Mean	Stdev
rise-8-TCGA	3.311	0.264

	Mean	Stdev
roll-8-TCGA	0.643	5.314

	Mean	Stdev
shift-8-TCGA	0.000	0.989

	Mean	Stdev
slide-8-TCGA	0.124	0.508

	Mean	Stdev
tilt-8-TCGA	0.000	4.743

	Mean	Stdev
twist-8-TCGA	38.171	4.982

	Mean	Stdev
rise-9-CATG	3.026	0.319

	Mean	Stdev
roll-9-CATG	9.028	6.463

	Mean	Stdev
shift-9-CATG	0.000	0.876

	Mean	Stdev
slide-9-CATG	0.021	0.531

	Mean	Stdev
tilt-9-CATG	0.000	4.796

	Mean	Stdev
twist-9-CATG	27.192	7.750
