NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17
5'	A	-	G	-	T	-	A	-	T	-	A	-	A	-	T	-	T	-	A	-	T	-	T	-	A	-	T	-	A	-	C	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	T	-	C	-	A	-	T	-	A	-	T	-	T	-	A	-	A	-	T	-	A	-	A	-	T	-	A	-	T	-	G	-	G	5'
	34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19		18

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

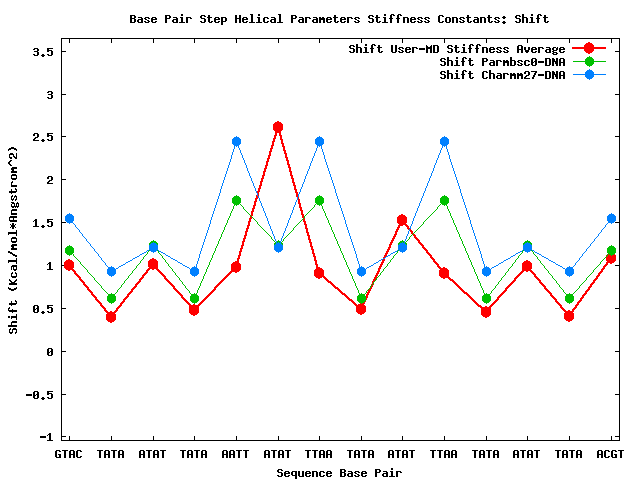

Shift

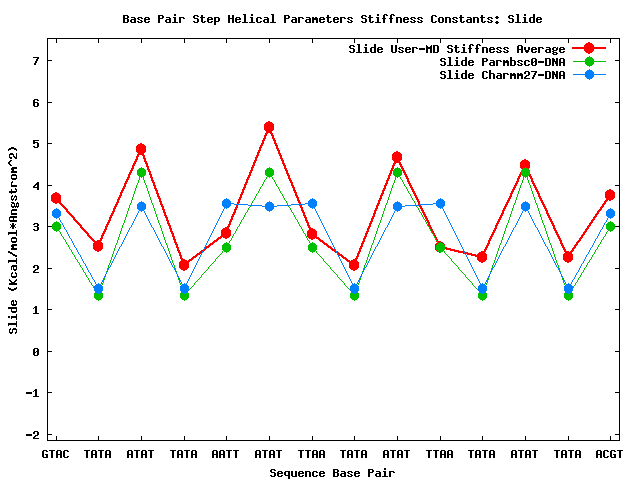

Slide

Rise

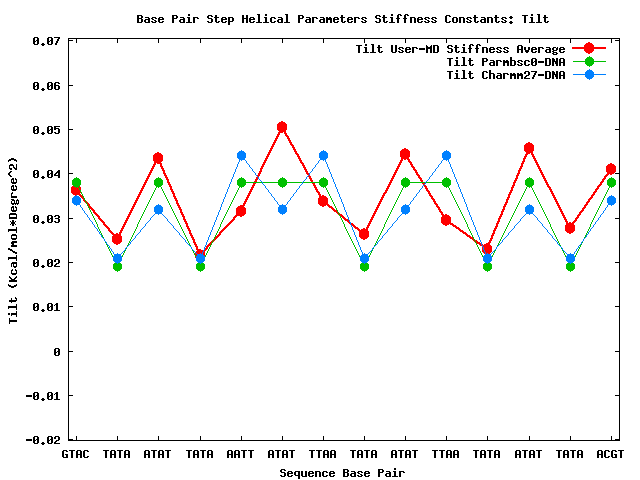

Tilt

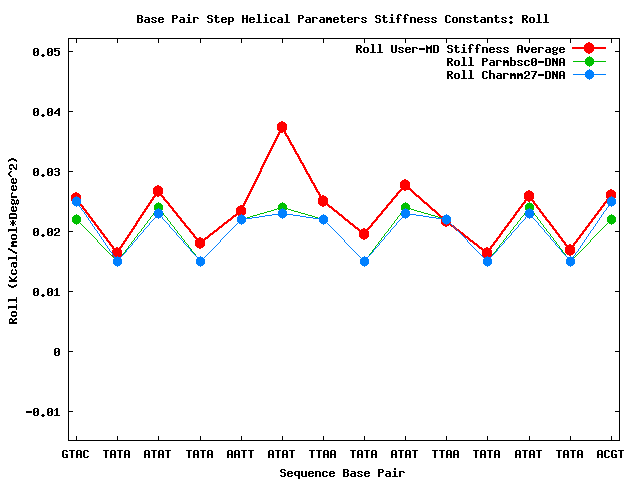

Roll

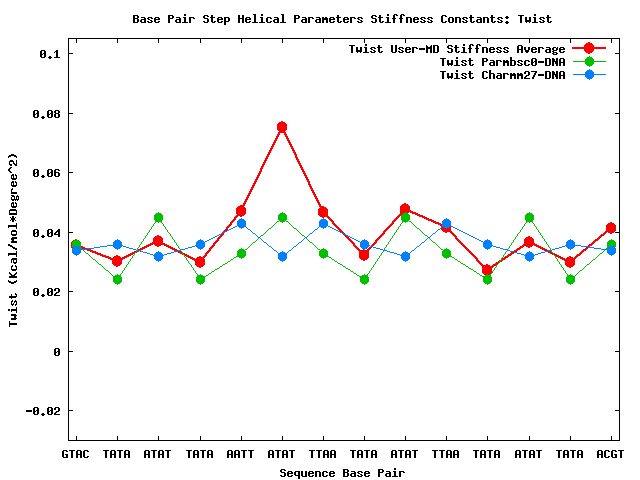

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.982	0.000	0.000	-0.110	0.000	0.000
Slide	0.000	2.843	1.084	0.000	-0.057	-0.173
Rise	0.000	1.084	9.135	0.000	-0.037	-0.176
Tilt	-0.110	0.000	0.000	0.032	0.000	0.000
Roll	0.000	-0.057	-0.037	0.000	0.023	0.008
Twist	0.000	-0.173	-0.176	0.000	0.008	0.047

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.078	0.000	0.000	-0.067	0.000	0.000
Slide	0.000	3.759	3.044	0.000	0.046	-0.147
Rise	0.000	3.044	10.560	0.000	0.112	-0.193
Tilt	-0.067	0.000	0.000	0.041	0.000	0.000
Roll	0.000	0.046	0.112	0.000	0.026	0.006
Twist	0.000	-0.147	-0.193	0.000	0.006	0.041

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.523	0.000	0.000	-0.006	0.000	0.000
Slide	0.000	4.663	3.096	0.000	-0.024	-0.120
Rise	0.000	3.096	11.839	0.000	0.045	-0.147
Tilt	-0.006	0.000	0.000	0.044	0.000	0.000
Roll	0.000	-0.024	0.045	0.000	0.028	0.008
Twist	0.000	-0.120	-0.147	0.000	0.008	0.048

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.988	0.000	0.000	0.024	0.000	0.000
Slide	0.000	4.485	2.780	0.000	-0.057	-0.083
Rise	0.000	2.780	11.656	0.000	0.064	-0.174
Tilt	0.024	0.000	0.000	0.046	0.000	0.000
Roll	0.000	-0.057	0.064	0.000	0.026	0.012
Twist	0.000	-0.083	-0.174	0.000	0.012	0.037

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.017	0.000	0.000	0.022	0.000	0.000
Slide	0.000	4.874	3.045	0.000	-0.044	-0.074
Rise	0.000	3.045	12.103	0.000	0.070	-0.164
Tilt	0.022	0.000	0.000	0.043	0.000	0.000
Roll	0.000	-0.044	0.070	0.000	0.027	0.012
Twist	0.000	-0.074	-0.164	0.000	0.012	0.037

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.606	0.000	0.000	-0.009	0.000	0.000
Slide	0.000	5.385	2.998	0.000	-0.003	-0.213
Rise	0.000	2.998	11.197	0.000	0.043	-0.177
Tilt	-0.009	0.000	0.000	0.050	0.000	0.000
Roll	0.000	-0.003	0.043	0.000	0.037	0.005
Twist	0.000	-0.213	-0.177	0.000	0.005	0.075

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.998	0.000	0.000	-0.043	0.000	0.000
Slide	0.000	3.674	2.909	0.000	0.049	-0.085
Rise	0.000	2.909	10.583	0.000	0.107	-0.236
Tilt	-0.043	0.000	0.000	0.036	0.000	0.000
Roll	0.000	0.049	0.107	0.000	0.025	0.007
Twist	0.000	-0.085	-0.236	0.000	0.007	0.036

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.453	0.000	0.000	-0.050	0.000	0.000
Slide	0.000	2.264	1.308	0.000	0.021	-0.114
Rise	0.000	1.309	7.346	0.000	-0.093	-0.222
Tilt	-0.050	0.000	0.000	0.023	0.000	0.000
Roll	0.000	0.021	-0.093	0.000	0.016	0.010
Twist	0.000	-0.114	-0.222	0.000	0.010	0.027

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.407	0.000	0.000	-0.056	0.000	0.000
Slide	0.000	2.256	1.035	0.000	0.039	-0.099
Rise	0.000	1.035	7.342	0.000	-0.081	-0.223
Tilt	-0.056	0.000	0.000	0.028	0.000	0.000
Roll	0.000	0.039	-0.081	0.000	0.017	0.010
Twist	0.000	-0.099	-0.223	0.000	0.010	0.030

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.395	0.000	0.000	-0.043	0.000	0.000
Slide	0.000	2.524	1.168	0.000	0.037	-0.112
Rise	0.000	1.168	7.570	0.000	-0.085	-0.240
Tilt	-0.043	0.000	0.000	0.025	0.000	0.000
Roll	0.000	0.037	-0.085	0.000	0.016	0.010
Twist	0.000	-0.112	-0.239	0.000	0.010	0.030

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.477	0.000	0.000	-0.050	0.000	0.000
Slide	0.000	2.075	1.315	0.000	0.021	-0.107
Rise	0.000	1.315	7.323	0.000	-0.096	-0.226
Tilt	-0.050	0.000	0.000	0.022	0.000	0.000
Roll	0.000	0.021	-0.096	0.000	0.018	0.012
Twist	0.000	-0.107	-0.226	0.000	0.012	0.030

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.483	0.000	0.000	-0.064	0.000	0.000
Slide	0.000	2.055	1.371	0.000	0.029	-0.107
Rise	0.000	1.371	7.309	0.000	-0.107	-0.234
Tilt	-0.064	0.000	0.000	0.026	0.000	0.000
Roll	0.000	0.029	-0.107	0.000	0.019	0.013
Twist	0.000	-0.107	-0.234	0.000	0.013	0.032

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.910	0.000	0.000	-0.098	0.000	0.000
Slide	0.000	2.498	1.020	0.000	-0.060	-0.143
Rise	0.000	1.020	8.658	0.000	-0.040	-0.160
Tilt	-0.098	0.000	0.000	0.029	0.000	0.000
Roll	0.000	-0.060	-0.040	0.000	0.022	0.009
Twist	0.000	-0.143	-0.160	0.000	0.009	0.042

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.908	0.000	0.000	-0.110	0.000	0.000
Slide	0.000	2.814	0.889	0.000	-0.065	-0.161
Rise	0.000	0.889	9.312	0.000	-0.029	-0.165
Tilt	-0.110	0.000	0.000	0.034	0.000	0.000
Roll	0.000	-0.065	-0.029	0.000	0.025	0.008
Twist	0.000	-0.161	-0.165	0.000	0.008	0.047

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-aatt.6.cte	0.000	0.000

	Mean	Stdev
-acgt.15.cte	0.000	0.000

	Mean	Stdev
-atat.10.cte	0.000	0.000

	Mean	Stdev
-atat.13.cte	0.000	0.000

	Mean	Stdev
-atat.4.cte	0.000	0.000

	Mean	Stdev
-atat.7.cte	0.000	0.000

	Mean	Stdev
-gtac.2.cte	0.000	0.000

	Mean	Stdev
-tata.12.cte	0.000	0.000

	Mean	Stdev
-tata.14.cte	0.000	0.000

	Mean	Stdev
-tata.3.cte	0.000	0.000

	Mean	Stdev
-tata.5.cte	0.000	0.000

	Mean	Stdev
-tata.9.cte	0.000	0.000

	Mean	Stdev
-ttaa.11.cte	0.000	0.000

	Mean	Stdev
-ttaa.8.cte	0.000	0.000

	Mean	Stdev
rise-10-ATAT	3.279	0.249

	Mean	Stdev
roll-10-ATAT	-2.547	4.761

	Mean	Stdev
shift-10-ATAT	0.000	0.621

	Mean	Stdev
slide-10-ATAT	-0.839	0.398

	Mean	Stdev
tilt-10-ATAT	0.000	3.638

	Mean	Stdev
twist-10-ATAT	31.940	3.739

	Mean	Stdev
rise-11-TTAA	3.291	0.272

	Mean	Stdev
roll-11-TTAA	0.767	5.530

	Mean	Stdev
shift-11-TTAA	0.000	1.000

	Mean	Stdev
slide-11-TTAA	-0.147	0.549

	Mean	Stdev
tilt-11-TTAA	0.000	5.555

	Mean	Stdev
twist-11-TTAA	37.065	4.375

	Mean	Stdev
rise-12-TATA	3.305	0.329

	Mean	Stdev
roll-12-TATA	5.985	7.696

	Mean	Stdev
shift-12-TATA	0.000	1.305

	Mean	Stdev
slide-12-TATA	-0.024	0.644

	Mean	Stdev
tilt-12-TATA	0.000	5.802

	Mean	Stdev
twist-12-TATA	35.108	6.971

	Mean	Stdev
rise-13-ATAT	3.174	0.261

	Mean	Stdev
roll-13-ATAT	-0.722	5.469

	Mean	Stdev
shift-13-ATAT	0.000	0.775

	Mean	Stdev
slide-13-ATAT	-0.719	0.403

	Mean	Stdev
tilt-13-ATAT	0.000	3.605

	Mean	Stdev
twist-13-ATAT	29.859	4.631

	Mean	Stdev
rise-14-TATA	3.256	0.324

	Mean	Stdev
roll-14-TATA	3.635	7.322

	Mean	Stdev
shift-14-TATA	0.000	1.415

	Mean	Stdev
slide-14-TATA	0.031	0.618

	Mean	Stdev
tilt-14-TATA	0.000	5.434

	Mean	Stdev
twist-14-TATA	36.461	6.136

	Mean	Stdev
rise-15-ACGT	3.349	0.278

	Mean	Stdev
roll-15-ACGT	-1.532	5.074

	Mean	Stdev
shift-15-ACGT	0.000	0.778

	Mean	Stdev
slide-15-ACGT	-0.523	0.473

	Mean	Stdev
tilt-15-ACGT	0.000	3.991

	Mean	Stdev
twist-15-ACGT	33.396	4.268

	Mean	Stdev
rise-2-GTAC	3.340	0.291

	Mean	Stdev
roll-2-GTAC	-1.424	5.246

	Mean	Stdev
shift-2-GTAC	0.000	0.786

	Mean	Stdev
slide-2-GTAC	-0.480	0.455

	Mean	Stdev
tilt-2-GTAC	0.000	4.125

	Mean	Stdev
twist-2-GTAC	32.607	4.696

	Mean	Stdev
rise-3-TATA	3.243	0.323

	Mean	Stdev
roll-3-TATA	3.295	7.543

	Mean	Stdev
shift-3-TATA	0.000	1.351

	Mean	Stdev
slide-3-TATA	0.041	0.593

	Mean	Stdev
tilt-3-TATA	0.000	5.345

	Mean	Stdev
twist-3-TATA	36.763	6.361

	Mean	Stdev
rise-4-ATAT	3.165	0.255

	Mean	Stdev
roll-4-ATAT	-0.415	5.339

	Mean	Stdev
shift-4-ATAT	0.000	0.763

	Mean	Stdev
slide-4-ATAT	-0.687	0.385

	Mean	Stdev
tilt-4-ATAT	0.000	3.695

	Mean	Stdev
twist-4-ATAT	29.456	4.584

	Mean	Stdev
rise-5-TATA	3.323	0.329

	Mean	Stdev
roll-5-TATA	6.188	7.589

	Mean	Stdev
shift-5-TATA	0.000	1.275

	Mean	Stdev
slide-5-TATA	-0.078	0.670

	Mean	Stdev
tilt-5-TATA	0.000	5.982

	Mean	Stdev
twist-5-TATA	35.266	6.671

	Mean	Stdev
rise-6-AATT	3.323	0.264

	Mean	Stdev
roll-6-AATT	0.581	5.199

	Mean	Stdev
shift-6-AATT	0.000	0.988

	Mean	Stdev
slide-6-AATT	-0.119	0.523

	Mean	Stdev
tilt-6-AATT	0.000	5.516

	Mean	Stdev
twist-6-AATT	37.566	4.140

	Mean	Stdev
rise-7-ATAT	3.360	0.250

	Mean	Stdev
roll-7-ATAT	-2.963	3.999

	Mean	Stdev
shift-7-ATAT	0.000	0.474

	Mean	Stdev
slide-7-ATAT	-0.951	0.374

	Mean	Stdev
tilt-7-ATAT	0.000	3.413

	Mean	Stdev
twist-7-ATAT	32.838	2.991

	Mean	Stdev
rise-8-TTAA	3.294	0.260

	Mean	Stdev
roll-8-TTAA	0.403	5.054

	Mean	Stdev
shift-8-TTAA	0.000	1.034

	Mean	Stdev
slide-8-TTAA	-0.054	0.518

	Mean	Stdev
tilt-8-TTAA	0.000	5.369

	Mean	Stdev
twist-8-TTAA	37.495	4.069

	Mean	Stdev
rise-9-TATA	3.329	0.334

	Mean	Stdev
roll-9-TATA	5.869	7.273

	Mean	Stdev
shift-9-TATA	0.000	1.338

	Mean	Stdev
slide-9-TATA	-0.005	0.681

	Mean	Stdev
tilt-9-TATA	0.000	5.744

	Mean	Stdev
twist-9-TATA	35.288	6.253
