NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12
5'	A	-	T	-	A	-	T	-	A	-	T	-	A	-	T	-	A	-	T	-	A	-	T	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	T	-	A	-	T	-	A	-	T	-	A	-	T	-	A	-	T	-	A	-	T	-	A	5'
	24		23		22		21		20		19		18		17		16		15		14		13

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

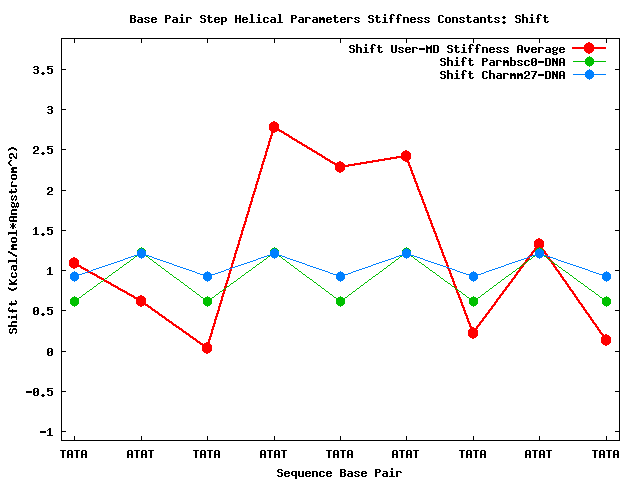

Shift

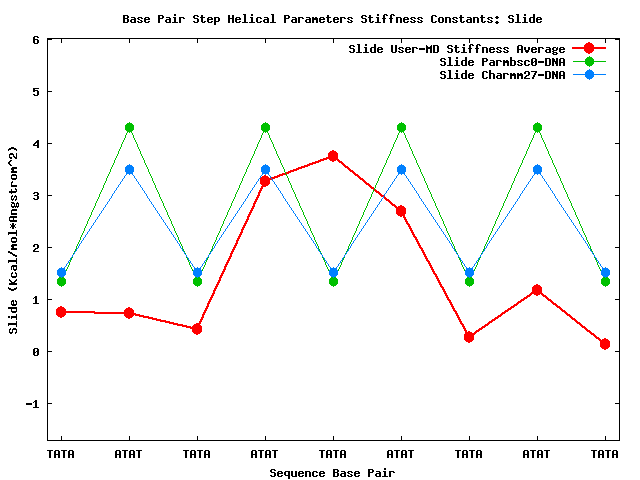

Slide

Rise

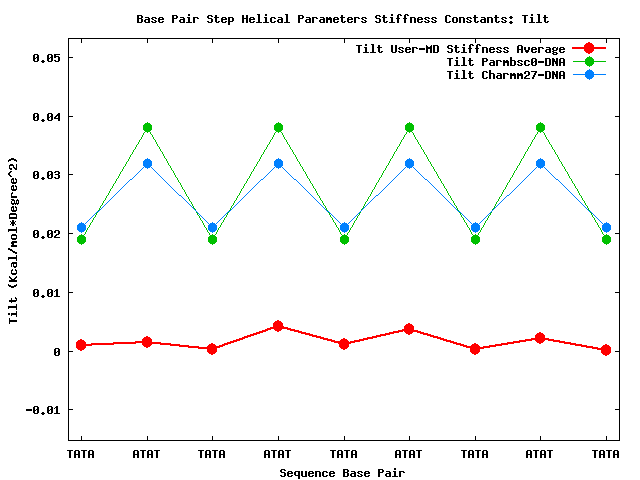

Tilt

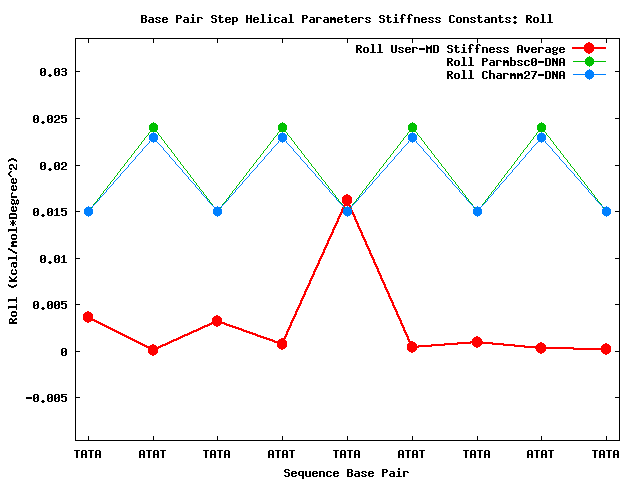

Roll

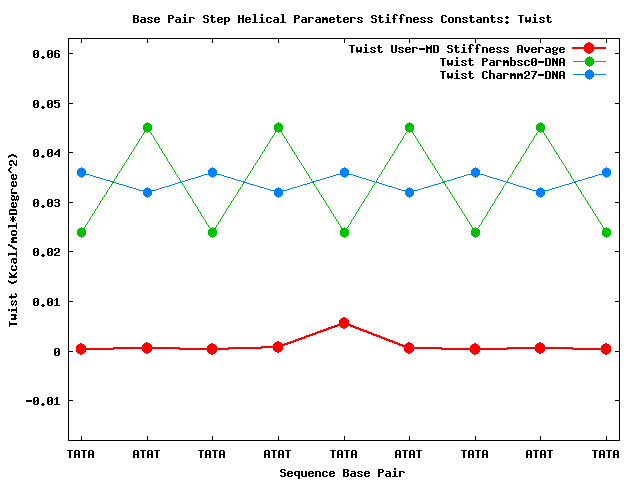

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.611	0.000	0.000	0.017	0.000	0.000
Slide	0.000	0.729	0.183	0.000	-0.005	0.009
Rise	0.000	0.183	0.298	0.000	-0.002	0.009
Tilt	0.017	0.000	0.000	0.001	0.000	0.000
Roll	0.000	-0.005	-0.002	0.000	0.000	-0.000
Twist	0.000	0.009	0.009	0.000	-0.000	0.001

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.773	0.000	0.000	0.101	0.000	0.000
Slide	0.000	3.262	-1.134	0.000	-0.034	0.014
Rise	0.000	-1.130	1.672	0.000	0.022	-0.021
Tilt	0.101	0.000	0.000	0.004	0.000	0.000
Roll	0.000	-0.034	0.022	0.000	0.001	-0.000
Twist	0.000	0.014	-0.021	0.000	-0.000	0.001

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.418	0.000	0.000	0.087	0.000	0.000
Slide	0.000	2.698	-0.403	0.000	-0.021	0.009
Rise	0.000	-0.402	1.116	0.000	0.011	-0.014
Tilt	0.087	0.000	0.000	0.004	0.000	0.000
Roll	0.000	-0.021	0.011	0.000	0.000	-0.000
Twist	0.000	0.009	-0.014	0.000	-0.000	0.001

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.328	0.000	0.000	0.047	0.000	0.000
Slide	0.000	1.167	-0.334	0.000	-0.015	0.005
Rise	0.000	-0.333	0.645	0.000	0.003	-0.010
Tilt	0.047	0.000	0.000	0.002	0.000	0.000
Roll	0.000	-0.015	0.003	0.000	0.000	-0.000
Twist	0.000	0.005	-0.010	0.000	-0.000	0.001

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.138	0.000	0.000	-0.002	0.000	0.000
Slide	0.000	0.132	0.060	0.000	0.001	0.002
Rise	0.000	0.060	0.117	0.000	-0.001	-0.001
Tilt	-0.002	0.000	0.000	0.000	0.000	0.000
Roll	0.000	0.001	-0.001	0.000	0.000	-0.000
Twist	0.000	0.002	-0.001	0.000	-0.000	0.000

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.085	0.000	0.000	-0.027	0.000	0.000
Slide	0.000	0.753	0.059	0.000	0.043	0.003
Rise	0.000	0.059	0.338	0.000	-0.002	-0.002
Tilt	-0.027	0.000	0.000	0.001	0.000	0.000
Roll	0.000	0.043	-0.002	0.000	0.004	-0.000
Twist	0.000	0.003	-0.002	0.000	-0.000	0.000

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.029	0.000	0.000	0.000	0.000	0.000
Slide	0.000	0.420	0.212	0.000	0.027	-0.003
Rise	0.000	0.212	0.418	0.000	0.021	-0.005
Tilt	0.000	0.000	0.000	0.000	0.000	0.000
Roll	0.000	0.027	0.021	0.000	0.003	-0.000
Twist	0.000	-0.003	-0.005	0.000	-0.000	0.000

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.279	0.000	0.000	-0.045	0.000	0.000
Slide	0.000	3.750	2.304	0.000	0.113	0.119
Rise	0.000	2.287	2.061	0.000	-0.011	0.092
Tilt	-0.045	0.000	0.000	0.001	0.000	0.000
Roll	0.000	0.114	-0.009	0.000	0.016	-0.000
Twist	0.000	0.118	0.093	0.000	-0.000	0.006

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.214	0.000	0.000	-0.004	0.000	0.000
Slide	0.000	0.260	0.082	0.000	0.011	0.004
Rise	0.000	0.082	0.127	0.000	0.002	-0.000
Tilt	-0.004	0.000	0.000	0.000	0.000	0.000
Roll	0.000	0.011	0.002	0.000	0.001	0.000
Twist	0.000	0.004	-0.000	0.000	0.000	0.000

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-atat.3.cte	0.000	0.000

	Mean	Stdev
-atat.5.cte	0.000	0.000

	Mean	Stdev
-atat.7.cte	0.000	0.000

	Mean	Stdev
-atat.9.cte	0.000	0.000

	Mean	Stdev
-tata.10.cte	0.000	0.000

	Mean	Stdev
-tata.2.cte	0.000	0.000

	Mean	Stdev
-tata.4.cte	0.000	0.000

	Mean	Stdev
-tata.6.cte	0.000	0.000

	Mean	Stdev
-tata.8.cte	0.000	0.000

	Mean	Stdev
rise-10-TATA	2.944	2.958

	Mean	Stdev
roll-10-TATA	29.590	42.572

	Mean	Stdev
shift-10-TATA	0.000	2.399

	Mean	Stdev
slide-10-TATA	-0.720	2.926

	Mean	Stdev
tilt-10-TATA	16.270	56.959

	Mean	Stdev
twist-10-TATA	34.693	44.781

	Mean	Stdev
rise-2-TATA	2.718	1.603

	Mean	Stdev
roll-2-TATA	62.779	32.939

	Mean	Stdev
shift-2-TATA	0.000	1.388

	Mean	Stdev
slide-2-TATA	-2.978	2.272

	Mean	Stdev
tilt-2-TATA	7.855	33.103

	Mean	Stdev
twist-2-TATA	112.504	50.806

	Mean	Stdev
rise-3-ATAT	0.836	2.124

	Mean	Stdev
roll-3-ATAT	75.017	79.250

	Mean	Stdev
shift-3-ATAT	0.000	1.193

	Mean	Stdev
slide-3-ATAT	-1.717	1.541

	Mean	Stdev
tilt-3-ATAT	0.493	23.951

	Mean	Stdev
twist-3-ATAT	-13.801	32.770

	Mean	Stdev
rise-4-TATA	2.579	1.526

	Mean	Stdev
roll-4-TATA	67.601	23.097

	Mean	Stdev
shift-4-TATA	0.000	4.530

	Mean	Stdev
slide-4-TATA	-0.717	1.774

	Mean	Stdev
tilt-4-TATA	9.734	40.248

	Mean	Stdev
twist-4-TATA	74.189	46.886

	Mean	Stdev
rise-5-ATAT	1.765	1.063

	Mean	Stdev
roll-5-ATAT	35.642	18.476

	Mean	Stdev
shift-5-ATAT	0.000	1.252

	Mean	Stdev
slide-5-ATAT	-4.155	0.638

	Mean	Stdev
tilt-5-ATAT	0.020	32.060

	Mean	Stdev
twist-5-ATAT	-1.906	36.768

	Mean	Stdev
rise-6-TATA	3.831	2.124

	Mean	Stdev
roll-6-TATA	50.183	25.442

	Mean	Stdev
shift-6-TATA	0.000	1.319

	Mean	Stdev
slide-6-TATA	-1.679	2.652

	Mean	Stdev
tilt-6-TATA	13.450	41.372

	Mean	Stdev
twist-6-TATA	61.823	31.313

	Mean	Stdev
rise-7-ATAT	1.637	1.060

	Mean	Stdev
roll-7-ATAT	31.822	17.562

	Mean	Stdev
shift-7-ATAT	0.000	1.309

	Mean	Stdev
slide-7-ATAT	-4.045	0.623

	Mean	Stdev
tilt-7-ATAT	0.000	33.535

	Mean	Stdev
twist-7-ATAT	0.649	38.960

	Mean	Stdev
rise-8-TATA	3.438	2.650

	Mean	Stdev
roll-8-TATA	57.932	40.013

	Mean	Stdev
shift-8-TATA	0.000	1.950

	Mean	Stdev
slide-8-TATA	-1.886	2.806

	Mean	Stdev
tilt-8-TATA	12.533	45.064

	Mean	Stdev
twist-8-TATA	47.579	41.643

	Mean	Stdev
rise-9-ATAT	1.894	1.193

	Mean	Stdev
roll-9-ATAT	41.064	30.293

	Mean	Stdev
shift-9-ATAT	0.000	1.343

	Mean	Stdev
slide-9-ATAT	-3.484	1.448

	Mean	Stdev
tilt-9-ATAT	0.095	33.071

	Mean	Stdev
twist-9-ATAT	5.465	38.919
