NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

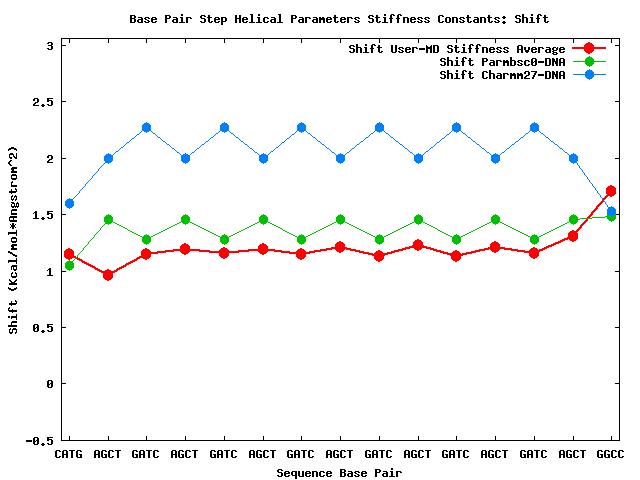

Shift

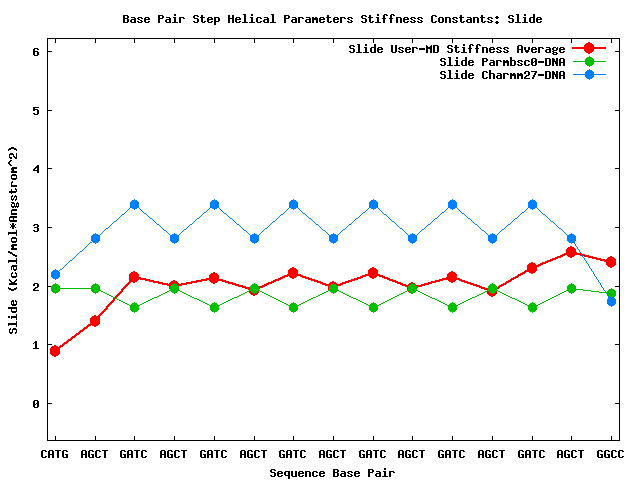

Slide

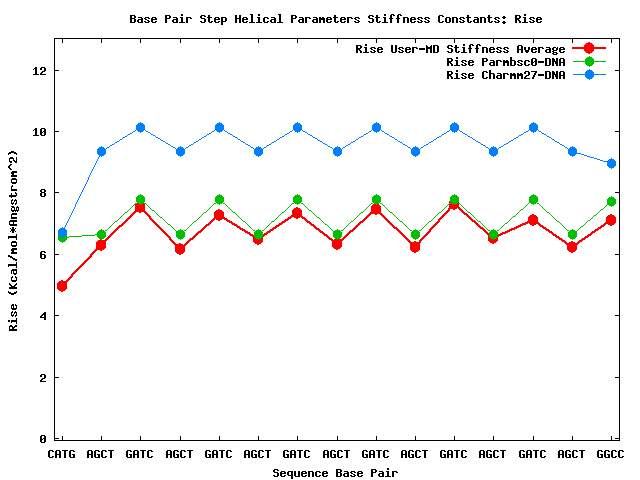

Rise

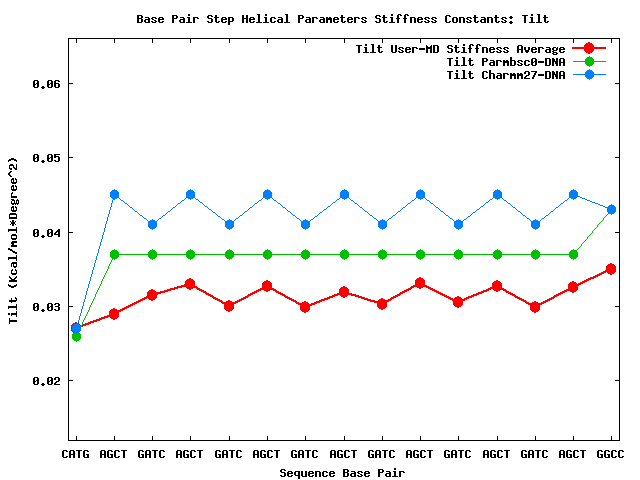

Tilt

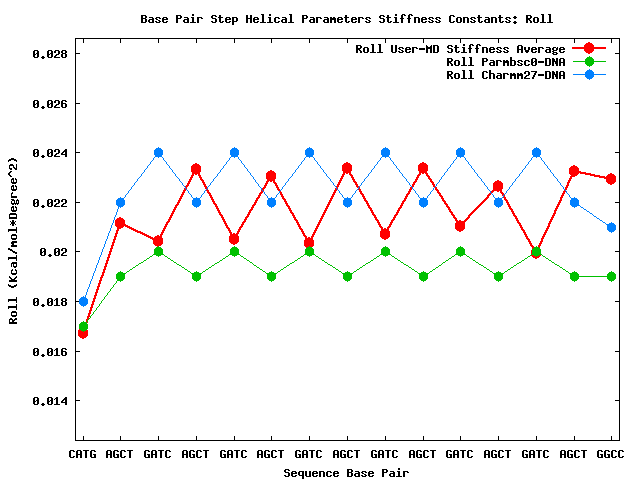

Roll

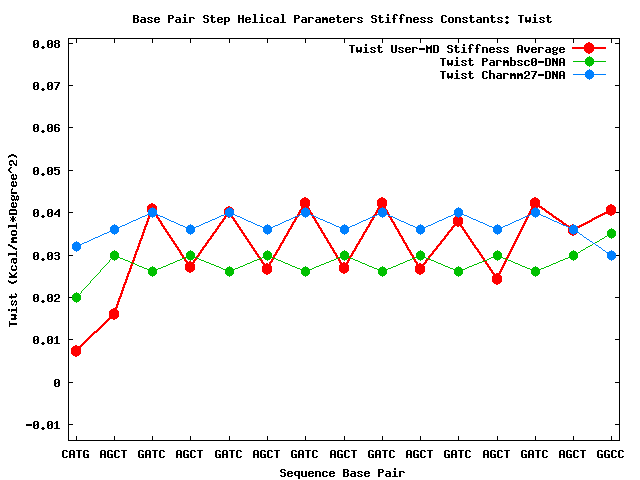

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.226	0.000	0.000	-0.031	0.000	0.000
Slide	0.000	1.957	1.547	0.000	-0.089	-0.082
Rise	0.000	1.547	6.223	0.000	-0.051	-0.143
Tilt	-0.031	0.000	0.000	0.033	0.000	0.000
Roll	0.000	-0.089	-0.051	0.000	0.023	0.007
Twist	0.000	-0.082	-0.143	0.000	0.007	0.027

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.210	0.000	0.000	-0.029	0.000	0.000
Slide	0.000	1.911	1.630	0.000	-0.088	-0.071
Rise	0.000	1.630	6.507	0.000	-0.062	-0.154
Tilt	-0.029	0.000	0.000	0.033	0.000	0.000
Roll	0.000	-0.088	-0.062	0.000	0.023	0.006
Twist	0.000	-0.071	-0.154	0.000	0.006	0.024

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.307	0.000	0.000	-0.022	0.000	0.000
Slide	0.000	2.573	1.646	0.000	-0.084	-0.145
Rise	0.000	1.646	6.236	0.000	-0.030	-0.155
Tilt	-0.022	0.000	0.000	0.033	0.000	0.000
Roll	0.000	-0.084	-0.030	0.000	0.023	0.007
Twist	0.000	-0.145	-0.155	0.000	0.007	0.036

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.961	0.000	0.000	-0.064	0.000	0.000
Slide	0.000	1.387	1.263	0.000	-0.051	-0.042
Rise	0.000	1.263	6.302	0.000	-0.041	-0.115
Tilt	-0.064	0.000	0.000	0.029	0.000	0.000
Roll	0.000	-0.051	-0.041	0.000	0.021	0.006
Twist	0.000	-0.042	-0.115	0.000	0.006	0.016

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.194	0.000	0.000	-0.036	0.000	0.000
Slide	0.000	1.995	1.509	0.000	-0.089	-0.085
Rise	0.000	1.509	6.150	0.000	-0.048	-0.143
Tilt	-0.036	0.000	0.000	0.033	0.000	0.000
Roll	0.000	-0.089	-0.048	0.000	0.023	0.007
Twist	0.000	-0.085	-0.143	0.000	0.007	0.027

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.193	0.000	0.000	-0.032	0.000	0.000
Slide	0.000	1.919	1.579	0.000	-0.084	-0.077
Rise	0.000	1.579	6.488	0.000	-0.043	-0.148
Tilt	-0.032	0.000	0.000	0.033	0.000	0.000
Roll	0.000	-0.084	-0.043	0.000	0.023	0.006
Twist	0.000	-0.077	-0.148	0.000	0.006	0.027

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.209	0.000	0.000	-0.027	0.000	0.000
Slide	0.000	1.970	1.621	0.000	-0.088	-0.083
Rise	0.000	1.621	6.307	0.000	-0.052	-0.152
Tilt	-0.027	0.000	0.000	0.032	0.000	0.000
Roll	0.000	-0.088	-0.052	0.000	0.023	0.007
Twist	0.000	-0.083	-0.152	0.000	0.007	0.027

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.150	0.000	0.000	-0.019	0.000	0.000
Slide	0.000	0.889	0.237	0.000	0.035	0.039
Rise	0.000	0.237	4.969	0.000	-0.033	-0.044
Tilt	-0.019	0.000	0.000	0.027	0.000	0.000
Roll	0.000	0.035	-0.033	0.000	0.017	0.004
Twist	0.000	0.039	-0.044	0.000	0.004	0.007

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.132	0.000	0.000	-0.033	0.000	0.000
Slide	0.000	2.207	1.422	0.000	-0.052	-0.216
Rise	0.000	1.422	7.455	0.000	-0.061	-0.174
Tilt	-0.033	0.000	0.000	0.030	0.000	0.000
Roll	0.000	-0.052	-0.061	0.000	0.021	0.013
Twist	0.000	-0.216	-0.174	0.000	0.013	0.042

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.126	0.000	0.000	-0.033	0.000	0.000
Slide	0.000	2.139	1.419	0.000	-0.049	-0.199
Rise	0.000	1.419	7.616	0.000	-0.062	-0.185
Tilt	-0.033	0.000	0.000	0.031	0.000	0.000
Roll	0.000	-0.049	-0.062	0.000	0.021	0.013
Twist	0.000	-0.199	-0.185	0.000	0.013	0.038

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.155	0.000	0.000	-0.037	0.000	0.000
Slide	0.000	2.303	1.272	0.000	-0.047	-0.218
Rise	0.000	1.272	7.091	0.000	-0.055	-0.165
Tilt	-0.037	0.000	0.000	0.030	0.000	0.000
Roll	0.000	-0.047	-0.055	0.000	0.020	0.013
Twist	0.000	-0.218	-0.165	0.000	0.013	0.042

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.148	0.000	0.000	-0.031	0.000	0.000
Slide	0.000	2.147	1.356	0.000	-0.052	-0.205
Rise	0.000	1.356	7.528	0.000	-0.056	-0.164
Tilt	-0.031	0.000	0.000	0.031	0.000	0.000
Roll	0.000	-0.052	-0.056	0.000	0.020	0.012
Twist	0.000	-0.205	-0.164	0.000	0.012	0.041

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.159	0.000	0.000	-0.028	0.000	0.000
Slide	0.000	2.134	1.437	0.000	-0.049	-0.200
Rise	0.000	1.437	7.262	0.000	-0.057	-0.165
Tilt	-0.028	0.000	0.000	0.030	0.000	0.000
Roll	0.000	-0.049	-0.057	0.000	0.021	0.012
Twist	0.000	-0.200	-0.165	0.000	0.012	0.040

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.143	0.000	0.000	-0.040	0.000	0.000
Slide	0.000	2.209	1.442	0.000	-0.051	-0.216
Rise	0.000	1.442	7.318	0.000	-0.058	-0.171
Tilt	-0.040	0.000	0.000	0.030	0.000	0.000
Roll	0.000	-0.051	-0.058	0.000	0.020	0.013
Twist	0.000	-0.216	-0.171	0.000	0.013	0.042

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.708	0.000	0.000	-0.080	0.000	0.000
Slide	0.000	2.394	1.972	0.000	-0.037	-0.199
Rise	0.000	1.972	7.112	0.000	-0.040	-0.177
Tilt	-0.080	0.000	0.000	0.035	0.000	0.000
Roll	0.000	-0.037	-0.040	0.000	0.023	0.009
Twist	0.000	-0.199	-0.177	0.000	0.009	0.041

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-agct.11.cte	0.000	0.000

	Mean	Stdev
-agct.13.cte	0.000	0.000

	Mean	Stdev
-agct.15.cte	0.000	0.000

	Mean	Stdev
-agct.3.cte	0.000	0.000

	Mean	Stdev
-agct.5.cte	0.000	0.000

	Mean	Stdev
-agct.7.cte	0.000	0.000

	Mean	Stdev
-agct.9.cte	0.000	0.000

	Mean	Stdev
-catg.2.cte	0.000	0.000

	Mean	Stdev
-gatc.10.cte	0.000	0.000

	Mean	Stdev
-gatc.12.cte	0.000	0.000

	Mean	Stdev
-gatc.14.cte	0.000	0.000

	Mean	Stdev
-gatc.4.cte	0.000	0.000

	Mean	Stdev
-gatc.6.cte	0.000	0.000

	Mean	Stdev
-gatc.8.cte	0.000	0.000

	Mean	Stdev
-ggcc.16.cte	0.000	0.000

	Mean	Stdev
rise-10-GATC	3.323	0.301

	Mean	Stdev
roll-10-GATC	3.441	5.929

	Mean	Stdev
shift-10-GATC	0.000	0.732

	Mean	Stdev
slide-10-GATC	-0.491	0.750

	Mean	Stdev
tilt-10-GATC	0.000	4.475

	Mean	Stdev
twist-10-GATC	33.887	5.741

	Mean	Stdev
rise-11-AGCT	3.366	0.354

	Mean	Stdev
roll-11-AGCT	5.092	5.613

	Mean	Stdev
shift-11-AGCT	0.000	0.700

	Mean	Stdev
slide-11-AGCT	-0.734	0.676

	Mean	Stdev
tilt-11-AGCT	0.000	4.259

	Mean	Stdev
twist-11-AGCT	30.291	5.242

	Mean	Stdev
rise-12-GATC	3.314	0.300

	Mean	Stdev
roll-12-GATC	3.489	5.968

	Mean	Stdev
shift-12-GATC	0.000	0.733

	Mean	Stdev
slide-12-GATC	-0.469	0.747

	Mean	Stdev
tilt-12-GATC	0.000	4.449

	Mean	Stdev
twist-12-GATC	33.702	6.068

	Mean	Stdev
rise-13-AGCT	3.334	0.354

	Mean	Stdev
roll-13-AGCT	5.509	5.710

	Mean	Stdev
shift-13-AGCT	0.000	0.704

	Mean	Stdev
slide-13-AGCT	-0.647	0.684

	Mean	Stdev
tilt-13-AGCT	0.000	4.281

	Mean	Stdev
twist-13-AGCT	30.191	5.528

	Mean	Stdev
rise-14-GATC	3.319	0.305

	Mean	Stdev
roll-14-GATC	2.644	6.132

	Mean	Stdev
shift-14-GATC	0.000	0.727

	Mean	Stdev
slide-14-GATC	-0.450	0.725

	Mean	Stdev
tilt-14-GATC	0.000	4.517

	Mean	Stdev
twist-14-GATC	34.235	5.809

	Mean	Stdev
rise-15-AGCT	3.372	0.342

	Mean	Stdev
roll-15-AGCT	4.047	5.392

	Mean	Stdev
shift-15-AGCT	0.000	0.674

	Mean	Stdev
slide-15-AGCT	-0.831	0.594

	Mean	Stdev
tilt-15-AGCT	0.000	4.267

	Mean	Stdev
twist-15-AGCT	31.315	4.695

	Mean	Stdev
rise-16-GGCC	3.565	0.327

	Mean	Stdev
roll-16-GGCC	4.914	5.321

	Mean	Stdev
shift-16-GGCC	0.000	0.620

	Mean	Stdev
slide-16-GGCC	-1.096	0.693

	Mean	Stdev
tilt-16-GGCC	0.000	4.330

	Mean	Stdev
twist-16-GGCC	32.945	5.135

	Mean	Stdev
rise-2-CATG	3.199	0.367

	Mean	Stdev
roll-2-CATG	9.350	6.368

	Mean	Stdev
shift-2-CATG	0.000	0.718

	Mean	Stdev
slide-2-CATG	-0.076	0.974

	Mean	Stdev
tilt-2-CATG	0.000	4.679

	Mean	Stdev
twist-2-CATG	29.676	10.977

	Mean	Stdev
rise-3-AGCT	3.358	0.353

	Mean	Stdev
roll-3-AGCT	4.998	5.760

	Mean	Stdev
shift-3-AGCT	0.000	0.846

	Mean	Stdev
slide-3-AGCT	-0.468	0.750

	Mean	Stdev
tilt-3-AGCT	0.000	4.873

	Mean	Stdev
twist-3-AGCT	30.988	6.851

	Mean	Stdev
rise-4-GATC	3.334	0.298

	Mean	Stdev
roll-4-GATC	3.208	5.943

	Mean	Stdev
shift-4-GATC	0.000	0.724

	Mean	Stdev
slide-4-GATC	-0.414	0.739

	Mean	Stdev
tilt-4-GATC	0.000	4.376

	Mean	Stdev
twist-4-GATC	34.397	5.657

	Mean	Stdev
rise-5-AGCT	3.393	0.353

	Mean	Stdev
roll-5-AGCT	5.346	5.579

	Mean	Stdev
shift-5-AGCT	0.000	0.713

	Mean	Stdev
slide-5-AGCT	-0.751	0.666

	Mean	Stdev
tilt-5-AGCT	0.000	4.286

	Mean	Stdev
twist-5-AGCT	30.507	5.190

	Mean	Stdev
rise-6-GATC	3.312	0.306

	Mean	Stdev
roll-6-GATC	3.615	5.964

	Mean	Stdev
shift-6-GATC	0.000	0.719

	Mean	Stdev
slide-6-GATC	-0.499	0.742

	Mean	Stdev
tilt-6-GATC	0.000	4.475

	Mean	Stdev
twist-6-GATC	33.776	5.693

	Mean	Stdev
rise-7-AGCT	3.356	0.349

	Mean	Stdev
roll-7-AGCT	5.244	5.582

	Mean	Stdev
shift-7-AGCT	0.000	0.710

	Mean	Stdev
slide-7-AGCT	-0.739	0.680

	Mean	Stdev
tilt-7-AGCT	0.000	4.296

	Mean	Stdev
twist-7-AGCT	30.072	5.212

	Mean	Stdev
rise-8-GATC	3.326	0.304

	Mean	Stdev
roll-8-GATC	3.366	6.030

	Mean	Stdev
shift-8-GATC	0.000	0.733

	Mean	Stdev
slide-8-GATC	-0.491	0.751

	Mean	Stdev
tilt-8-GATC	0.000	4.536

	Mean	Stdev
twist-8-GATC	33.956	5.765

	Mean	Stdev
rise-9-AGCT	3.356	0.356

	Mean	Stdev
roll-9-AGCT	4.950	5.579

	Mean	Stdev
shift-9-AGCT	0.000	0.703

	Mean	Stdev
slide-9-AGCT	-0.736	0.677

	Mean	Stdev
tilt-9-AGCT	0.000	4.332

	Mean	Stdev
twist-9-AGCT	30.155	5.252

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	A	-	G	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	T	-	C	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19
