NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	G	-	A	-	C	-	G	-	G	-	A	-	C	-	G	-	G	-	A	-	C	-	G	-	G	-	A	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	C	-	T	-	G	-	C	-	C	-	T	-	G	-	C	-	C	-	T	-	G	-	C	-	C	-	T	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

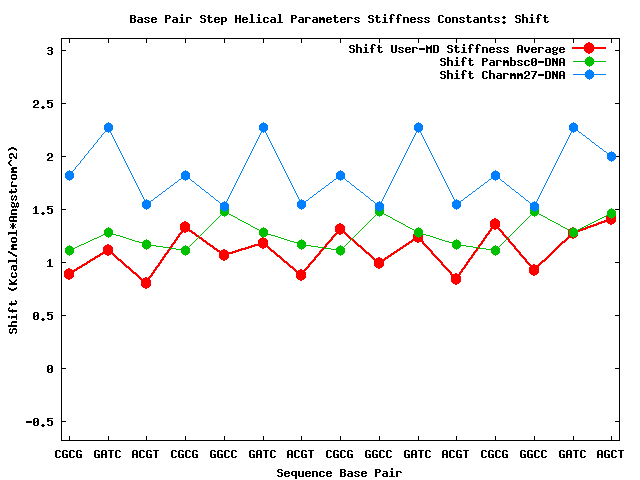

Shift

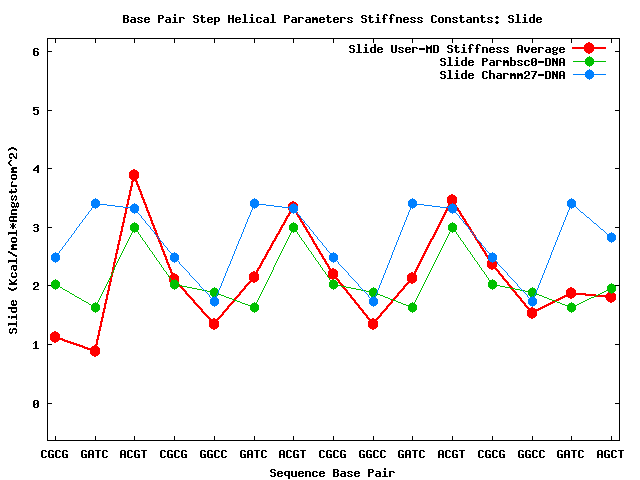

Slide

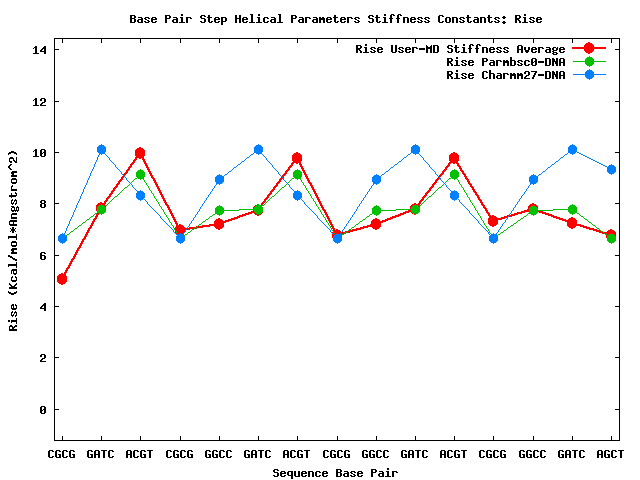

Rise

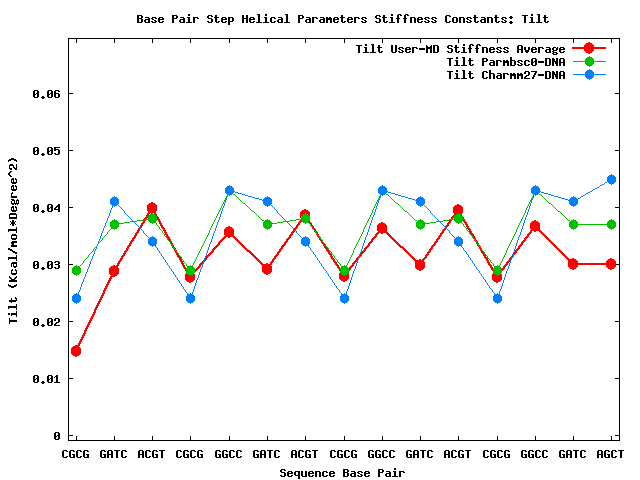

Tilt

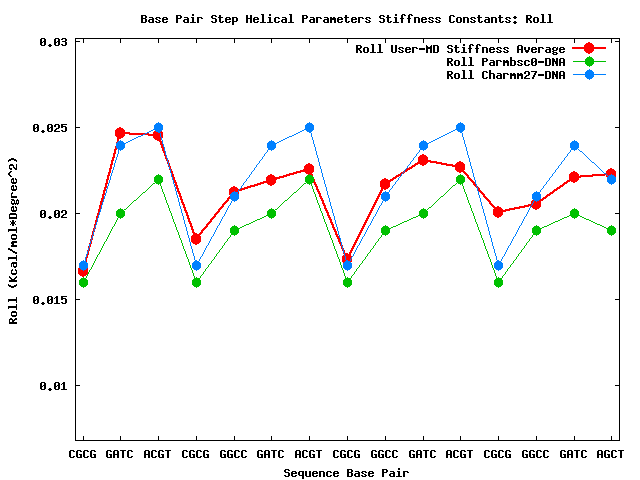

Roll

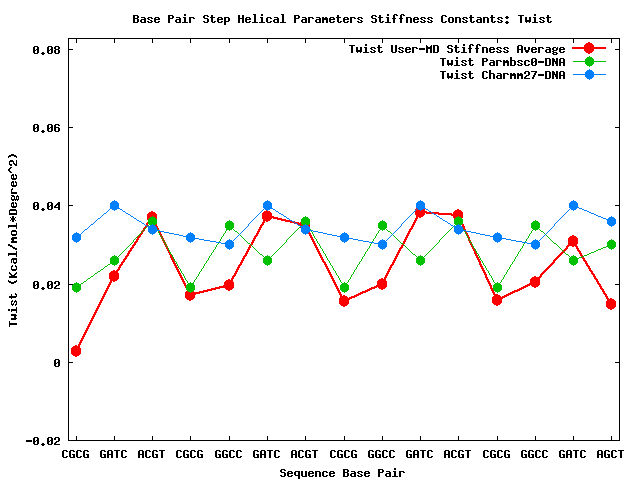

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.839	0.000	0.000	-0.006	0.000	0.000
Slide	0.000	3.466	2.562	0.000	0.031	-0.112
Rise	0.000	2.562	9.762	0.000	0.072	-0.231
Tilt	-0.006	0.000	0.000	0.039	0.000	0.000
Roll	0.000	0.031	0.072	0.000	0.023	0.011
Twist	0.000	-0.112	-0.231	0.000	0.011	0.038

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.802	0.000	0.000	-0.034	0.000	0.000
Slide	0.000	3.890	2.761	0.000	0.039	-0.103
Rise	0.000	2.761	9.960	0.000	0.084	-0.208
Tilt	-0.034	0.000	0.000	0.040	0.000	0.000
Roll	0.000	0.039	0.084	0.000	0.025	0.011
Twist	0.000	-0.103	-0.208	0.000	0.011	0.037

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.876	0.000	0.000	-0.012	0.000	0.000
Slide	0.000	3.343	2.661	0.000	0.019	-0.089
Rise	0.000	2.661	9.759	0.000	0.067	-0.235
Tilt	-0.012	0.000	0.000	0.039	0.000	0.000
Roll	0.000	0.019	0.067	0.000	0.023	0.011
Twist	0.000	-0.089	-0.235	0.000	0.011	0.035

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.400	0.000	0.000	-0.084	0.000	0.000
Slide	0.000	1.804	1.138	0.000	-0.064	-0.016
Rise	0.000	1.138	6.769	0.000	-0.044	-0.100
Tilt	-0.084	0.000	0.000	0.030	0.000	0.000
Roll	0.000	-0.064	-0.044	0.000	0.022	0.004
Twist	0.000	-0.016	-0.100	0.000	0.004	0.015

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.359	0.000	0.000	-0.088	0.000	0.000
Slide	0.000	2.373	0.803	0.000	0.002	-0.069
Rise	0.000	0.803	7.304	0.000	-0.105	-0.253
Tilt	-0.088	0.000	0.000	0.028	0.000	0.000
Roll	0.000	0.002	-0.105	0.000	0.020	0.007
Twist	0.000	-0.069	-0.253	0.000	0.007	0.016

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.885	0.000	0.000	-0.026	0.000	0.000
Slide	0.000	1.118	-0.372	0.000	0.038	0.044
Rise	0.000	-0.370	5.033	0.000	0.012	-0.023
Tilt	-0.026	0.000	0.000	0.015	0.000	0.000
Roll	0.000	0.038	0.012	0.000	0.017	-0.000
Twist	0.000	0.044	-0.023	0.000	-0.000	0.003

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.329	0.000	0.000	-0.104	0.000	0.000
Slide	0.000	2.116	1.090	0.000	0.006	-0.073
Rise	0.000	1.090	6.977	0.000	-0.087	-0.251
Tilt	-0.104	0.000	0.000	0.028	0.000	0.000
Roll	0.000	0.006	-0.087	0.000	0.019	0.007
Twist	0.000	-0.073	-0.251	0.000	0.007	0.017

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.309	0.000	0.000	-0.100	0.000	0.000
Slide	0.000	2.187	0.894	0.000	0.005	-0.068
Rise	0.000	0.894	6.773	0.000	-0.080	-0.237
Tilt	-0.100	0.000	0.000	0.028	0.000	0.000
Roll	0.000	0.005	-0.080	0.000	0.017	0.006
Twist	0.000	-0.068	-0.237	0.000	0.006	0.016

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.231	0.000	0.000	-0.084	0.000	0.000
Slide	0.000	2.126	1.553	0.000	-0.037	-0.171
Rise	0.000	1.553	7.768	0.000	-0.034	-0.189
Tilt	-0.084	0.000	0.000	0.030	0.000	0.000
Roll	0.000	-0.037	-0.034	0.000	0.023	0.012
Twist	0.000	-0.171	-0.189	0.000	0.012	0.038

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.271	0.000	0.000	-0.055	0.000	0.000
Slide	0.000	1.873	1.346	0.000	-0.033	-0.125
Rise	0.000	1.346	7.223	0.000	-0.057	-0.172
Tilt	-0.055	0.000	0.000	0.030	0.000	0.000
Roll	0.000	-0.033	-0.057	0.000	0.022	0.013
Twist	0.000	-0.125	-0.172	0.000	0.013	0.031

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.107	0.000	0.000	-0.145	0.000	0.000
Slide	0.000	0.887	0.945	0.000	0.003	0.005
Rise	0.000	0.945	7.829	0.000	-0.031	-0.165
Tilt	-0.145	0.000	0.000	0.029	0.000	0.000
Roll	0.000	0.003	-0.031	0.000	0.025	0.008
Twist	0.000	0.005	-0.165	0.000	0.008	0.022

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.179	0.000	0.000	-0.077	0.000	0.000
Slide	0.000	2.136	1.467	0.000	-0.045	-0.166
Rise	0.000	1.467	7.721	0.000	-0.033	-0.182
Tilt	-0.077	0.000	0.000	0.029	0.000	0.000
Roll	0.000	-0.045	-0.033	0.000	0.022	0.012
Twist	0.000	-0.166	-0.182	0.000	0.012	0.037

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.991	0.000	0.000	-0.078	0.000	0.000
Slide	0.000	1.342	1.500	0.000	-0.015	-0.069
Rise	0.000	1.500	7.181	0.000	-0.035	-0.194
Tilt	-0.078	0.000	0.000	0.036	0.000	0.000
Roll	0.000	-0.015	-0.035	0.000	0.022	0.010
Twist	0.000	-0.069	-0.194	0.000	0.010	0.020

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.921	0.000	0.000	-0.079	0.000	0.000
Slide	0.000	1.526	1.600	0.000	-0.014	-0.082
Rise	0.000	1.600	7.782	0.000	-0.030	-0.208
Tilt	-0.079	0.000	0.000	0.037	0.000	0.000
Roll	0.000	-0.014	-0.030	0.000	0.021	0.009
Twist	0.000	-0.082	-0.208	0.000	0.009	0.020

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.063	0.000	0.000	-0.083	0.000	0.000
Slide	0.000	1.335	1.624	0.000	-0.018	-0.068
Rise	0.000	1.624	7.181	0.000	-0.047	-0.199
Tilt	-0.083	0.000	0.000	0.036	0.000	0.000
Roll	0.000	-0.018	-0.047	0.000	0.021	0.009
Twist	0.000	-0.068	-0.199	0.000	0.009	0.020

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-acgt.12.cte	0.000	0.000

	Mean	Stdev
-acgt.4.cte	0.000	0.000

	Mean	Stdev
-acgt.8.cte	0.000	0.000

	Mean	Stdev
-agct.16.cte	0.000	0.000

	Mean	Stdev
-cgcg.13.cte	0.000	0.000

	Mean	Stdev
-cgcg.2.cte	0.000	0.000

	Mean	Stdev
-cgcg.5.cte	0.000	0.000

	Mean	Stdev
-cgcg.9.cte	0.000	0.000

	Mean	Stdev
-gatc.11.cte	0.000	0.000

	Mean	Stdev
-gatc.15.cte	0.000	0.000

	Mean	Stdev
-gatc.3.cte	0.000	0.000

	Mean	Stdev
-gatc.7.cte	0.000	0.000

	Mean	Stdev
-ggcc.10.cte	0.000	0.000

	Mean	Stdev
-ggcc.14.cte	0.000	0.000

	Mean	Stdev
-ggcc.6.cte	0.000	0.000

	Mean	Stdev
rise-10-GGCC	3.476	0.359

	Mean	Stdev
roll-10-GGCC	5.612	5.989

	Mean	Stdev
shift-10-GGCC	0.000	0.844

	Mean	Stdev
slide-10-GGCC	-0.394	0.778

	Mean	Stdev
tilt-10-GGCC	0.000	4.415

	Mean	Stdev
twist-10-GGCC	31.854	7.456

	Mean	Stdev
rise-11-GATC	3.357	0.301

	Mean	Stdev
roll-11-GATC	1.540	5.576

	Mean	Stdev
shift-11-GATC	0.000	0.769

	Mean	Stdev
slide-11-GATC	-0.184	0.677

	Mean	Stdev
tilt-11-GATC	0.000	4.938

	Mean	Stdev
twist-11-GATC	37.570	5.386

	Mean	Stdev
rise-12-ACGT	3.364	0.297

	Mean	Stdev
roll-12-ACGT	-0.674	5.928

	Mean	Stdev
shift-12-ACGT	0.000	0.836

	Mean	Stdev
slide-12-ACGT	-0.589	0.470

	Mean	Stdev
tilt-12-ACGT	0.000	3.855

	Mean	Stdev
twist-12-ACGT	31.475	4.991

	Mean	Stdev
rise-13-CGCG	3.023	0.427

	Mean	Stdev
roll-13-CGCG	9.039	5.967

	Mean	Stdev
shift-13-CGCG	0.000	0.736

	Mean	Stdev
slide-13-CGCG	-0.045	0.544

	Mean	Stdev
tilt-13-CGCG	0.000	5.162

	Mean	Stdev
twist-13-CGCG	28.690	10.180

	Mean	Stdev
rise-14-GGCC	3.458	0.340

	Mean	Stdev
roll-14-GGCC	4.909	6.044

	Mean	Stdev
shift-14-GGCC	0.000	0.883

	Mean	Stdev
slide-14-GGCC	-0.285	0.737

	Mean	Stdev
tilt-14-GGCC	0.000	4.422

	Mean	Stdev
twist-14-GGCC	33.363	7.407

	Mean	Stdev
rise-15-GATC	3.367	0.314

	Mean	Stdev
roll-15-GATC	2.013	5.912

	Mean	Stdev
shift-15-GATC	0.000	0.708

	Mean	Stdev
slide-15-GATC	-0.268	0.676

	Mean	Stdev
tilt-15-GATC	0.000	4.611

	Mean	Stdev
twist-15-GATC	35.561	5.882

	Mean	Stdev
rise-16-AGCT	3.415	0.327

	Mean	Stdev
roll-16-AGCT	3.561	5.540

	Mean	Stdev
shift-16-AGCT	0.000	0.709

	Mean	Stdev
slide-16-AGCT	-0.694	0.634

	Mean	Stdev
tilt-16-AGCT	0.000	4.840

	Mean	Stdev
twist-16-AGCT	33.073	6.828

	Mean	Stdev
rise-2-CGCG	3.244	0.348

	Mean	Stdev
roll-2-CGCG	5.388	7.030

	Mean	Stdev
shift-2-CGCG	0.000	0.837

	Mean	Stdev
slide-2-CGCG	1.342	1.399

	Mean	Stdev
tilt-2-CGCG	0.000	6.476

	Mean	Stdev
twist-2-CGCG	7.688	26.965

	Mean	Stdev
rise-3-GATC	3.217	0.328

	Mean	Stdev
roll-3-GATC	1.430	5.241

	Mean	Stdev
shift-3-GATC	0.000	1.244

	Mean	Stdev
slide-3-GATC	0.855	0.891

	Mean	Stdev
tilt-3-GATC	0.000	7.720

	Mean	Stdev
twist-3-GATC	35.090	6.169

	Mean	Stdev
rise-4-ACGT	3.385	0.291

	Mean	Stdev
roll-4-ACGT	-0.822	5.654

	Mean	Stdev
shift-4-ACGT	0.000	0.870

	Mean	Stdev
slide-4-ACGT	-0.575	0.442

	Mean	Stdev
tilt-4-ACGT	0.000	3.905

	Mean	Stdev
twist-4-ACGT	31.150	4.877

	Mean	Stdev
rise-5-CGCG	3.188	0.422

	Mean	Stdev
roll-5-CGCG	9.064	6.272

	Mean	Stdev
shift-5-CGCG	0.000	0.789

	Mean	Stdev
slide-5-CGCG	-0.032	0.584

	Mean	Stdev
tilt-5-CGCG	0.000	5.455

	Mean	Stdev
twist-5-CGCG	32.330	9.521

	Mean	Stdev
rise-6-GGCC	3.486	0.369

	Mean	Stdev
roll-6-GGCC	6.118	5.912

	Mean	Stdev
shift-6-GGCC	0.000	0.820

	Mean	Stdev
slide-6-GGCC	-0.460	0.794

	Mean	Stdev
tilt-6-GGCC	0.000	4.477

	Mean	Stdev
twist-6-GGCC	31.344	7.351

	Mean	Stdev
rise-7-GATC	3.332	0.300

	Mean	Stdev
roll-7-GATC	1.648	5.725

	Mean	Stdev
shift-7-GATC	0.000	0.774

	Mean	Stdev
slide-7-GATC	-0.168	0.663

	Mean	Stdev
tilt-7-GATC	0.000	4.925

	Mean	Stdev
twist-7-GATC	37.358	5.392

	Mean	Stdev
rise-8-ACGT	3.333	0.309

	Mean	Stdev
roll-8-ACGT	-0.072	5.974

	Mean	Stdev
shift-8-ACGT	0.000	0.820

	Mean	Stdev
slide-8-ACGT	-0.597	0.476

	Mean	Stdev
tilt-8-ACGT	0.000	3.910

	Mean	Stdev
twist-8-ACGT	30.783	5.215

	Mean	Stdev
rise-9-CGCG	3.130	0.429

	Mean	Stdev
roll-9-CGCG	8.772	6.344

	Mean	Stdev
shift-9-CGCG	0.000	0.784

	Mean	Stdev
slide-9-CGCG	-0.030	0.567

	Mean	Stdev
tilt-9-CGCG	0.000	5.367

	Mean	Stdev
twist-9-CGCG	31.336	9.856

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	G	-	A	-	C	-	G	-	G	-	A	-	C	-	G	-	G	-	A	-	C	-	G	-	G	-	A	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	C	-	T	-	G	-	C	-	C	-	T	-	G	-	C	-	C	-	T	-	G	-	C	-	C	-	T	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	G	-	A	-	C	-	G	-	G	-	A	-	C	-	G	-	G	-	A	-	C	-	G	-	G	-	A	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	C	-	T	-	G	-	C	-	C	-	T	-	G	-	C	-	C	-	T	-	G	-	C	-	C	-	T	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	G	-	A	-	C	-	G	-	G	-	A	-	C	-	G	-	G	-	A	-	C	-	G	-	G	-	A	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	C	-	T	-	G	-	C	-	C	-	T	-	G	-	C	-	C	-	T	-	G	-	C	-	C	-	T	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19
