NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

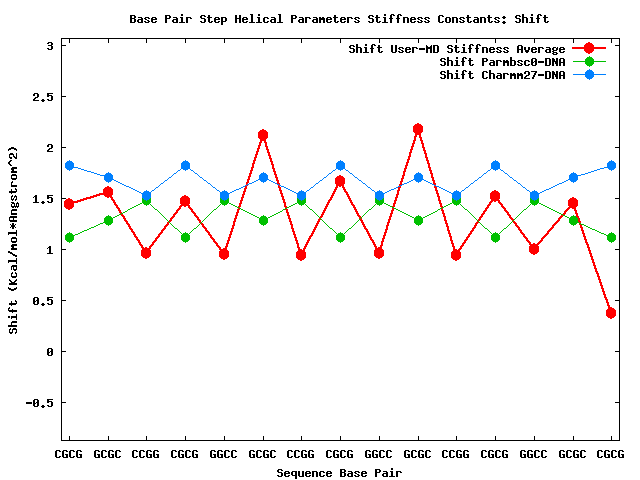

Shift

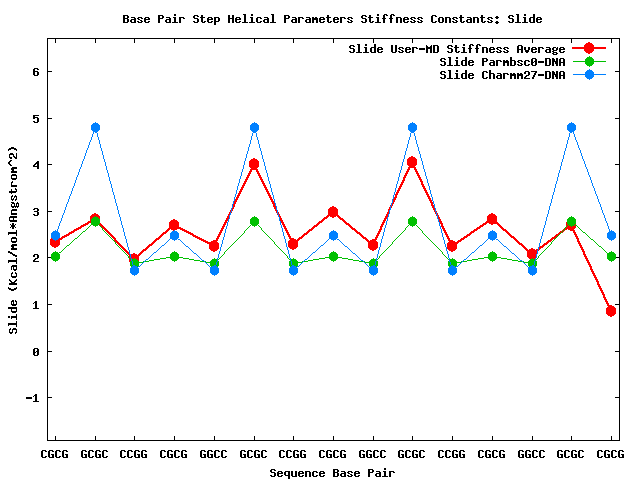

Slide

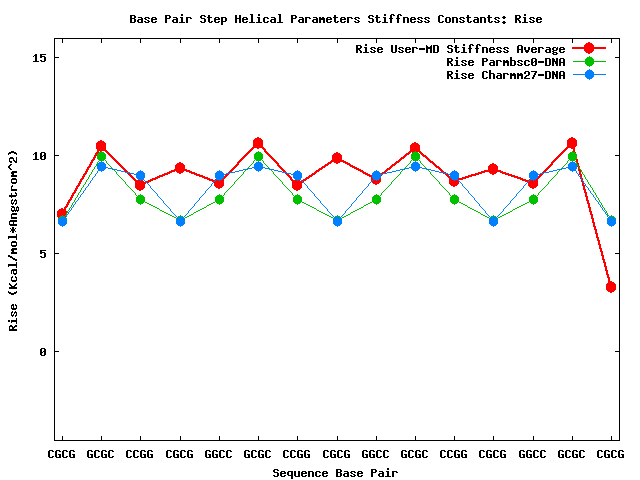

Rise

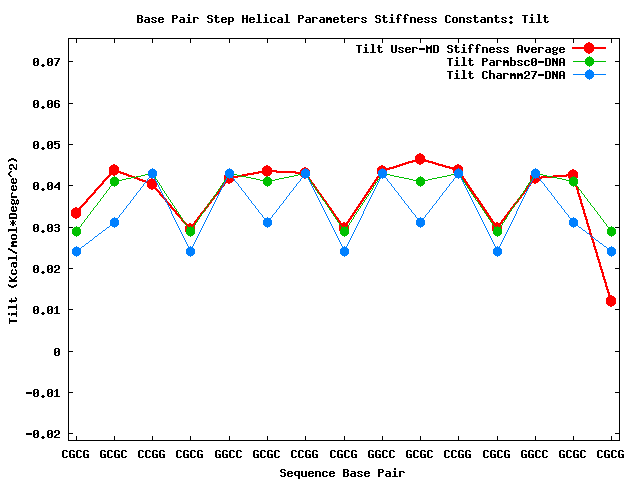

Tilt

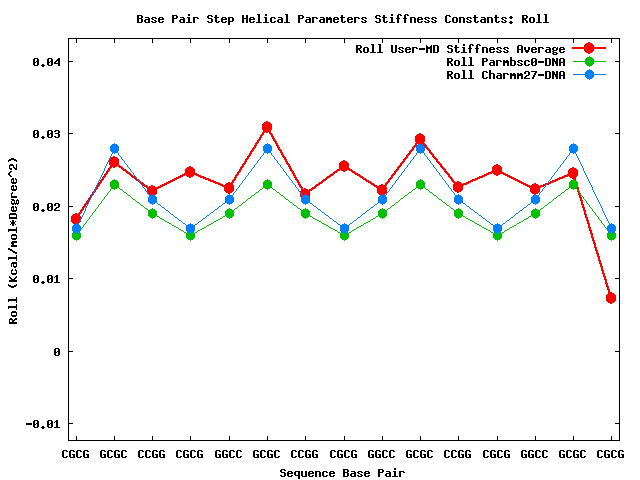

Roll

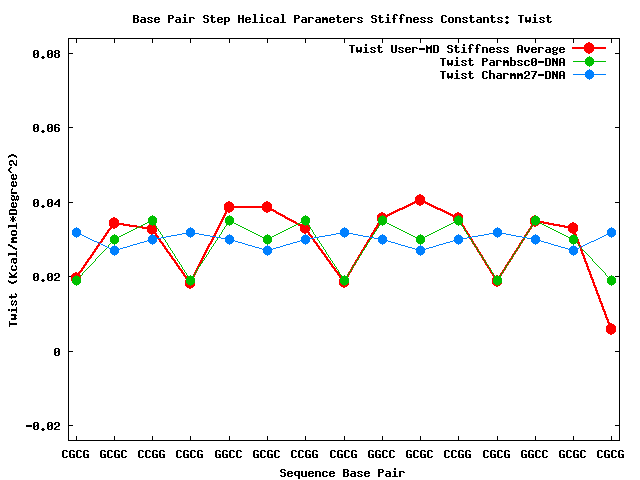

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.939	0.000	0.000	-0.100	0.000	0.000
Slide	0.000	2.246	1.742	0.000	-0.015	-0.172
Rise	0.000	1.742	8.681	0.000	-0.018	-0.197
Tilt	-0.100	0.000	0.000	0.044	0.000	0.000
Roll	0.000	-0.015	-0.018	0.000	0.023	0.009
Twist	0.000	-0.172	-0.197	0.000	0.009	0.036

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.962	0.000	0.000	-0.114	0.000	0.000
Slide	0.000	1.972	1.419	0.000	-0.011	-0.140
Rise	0.000	1.419	8.450	0.000	-0.008	-0.176
Tilt	-0.114	0.000	0.000	0.040	0.000	0.000
Roll	0.000	-0.011	-0.008	0.000	0.022	0.010
Twist	0.000	-0.140	-0.176	0.000	0.010	0.033

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.943	0.000	0.000	-0.101	0.000	0.000
Slide	0.000	2.294	1.600	0.000	-0.014	-0.181
Rise	0.000	1.600	8.480	0.000	-0.014	-0.173
Tilt	-0.101	0.000	0.000	0.043	0.000	0.000
Roll	0.000	-0.014	-0.014	0.000	0.022	0.007
Twist	0.000	-0.181	-0.173	0.000	0.007	0.033

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.514	0.000	0.000	-0.066	0.000	0.000
Slide	0.000	2.823	-0.114	0.000	0.018	-0.064
Rise	0.000	-0.114	9.296	0.000	-0.154	-0.276
Tilt	-0.066	0.000	0.000	0.030	0.000	0.000
Roll	0.000	0.018	-0.154	0.000	0.025	0.008
Twist	0.000	-0.064	-0.276	0.000	0.008	0.019

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.367	0.000	0.000	0.005	0.000	0.000
Slide	0.000	0.856	-0.487	0.000	-0.001	0.021
Rise	0.000	-0.487	3.240	0.000	-0.070	-0.086
Tilt	0.005	0.000	0.000	0.012	0.000	0.000
Roll	0.000	-0.001	-0.070	0.000	0.007	0.001
Twist	0.000	0.021	-0.086	0.000	0.001	0.006

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.441	0.000	0.000	-0.137	0.000	0.000
Slide	0.000	2.341	1.108	0.000	0.006	-0.077
Rise	0.000	1.108	6.961	0.000	-0.076	-0.233
Tilt	-0.137	0.000	0.000	0.033	0.000	0.000
Roll	0.000	0.006	-0.076	0.000	0.018	0.007
Twist	0.000	-0.077	-0.233	0.000	0.007	0.020

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.464	0.000	0.000	-0.060	0.000	0.000
Slide	0.000	2.704	0.008	0.000	0.009	-0.060
Rise	0.000	0.008	9.340	0.000	-0.145	-0.259
Tilt	-0.060	0.000	0.000	0.029	0.000	0.000
Roll	0.000	0.009	-0.145	0.000	0.025	0.008
Twist	0.000	-0.060	-0.259	0.000	0.008	0.018

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.660	0.000	0.000	-0.067	0.000	0.000
Slide	0.000	2.976	-0.166	0.000	0.013	-0.060
Rise	0.000	-0.166	9.857	0.000	-0.157	-0.268
Tilt	-0.067	0.000	0.000	0.030	0.000	0.000
Roll	0.000	0.013	-0.157	0.000	0.025	0.007
Twist	0.000	-0.060	-0.268	0.000	0.007	0.018

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.174	0.000	0.000	-0.134	0.000	0.000
Slide	0.000	4.045	2.968	0.000	0.012	-0.171
Rise	0.000	2.968	10.352	0.000	0.097	-0.202
Tilt	-0.134	0.000	0.000	0.046	0.000	0.000
Roll	0.000	0.012	0.097	0.000	0.029	0.009
Twist	0.000	-0.171	-0.202	0.000	0.009	0.040

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.450	0.000	0.000	-0.134	0.000	0.000
Slide	0.000	2.689	2.363	0.000	0.059	-0.107
Rise	0.000	2.363	10.599	0.000	0.109	-0.221
Tilt	-0.134	0.000	0.000	0.042	0.000	0.000
Roll	0.000	0.059	0.109	0.000	0.024	0.007
Twist	0.000	-0.107	-0.221	0.000	0.007	0.033

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.554	0.000	0.000	-0.142	0.000	0.000
Slide	0.000	2.829	2.524	0.000	0.055	-0.116
Rise	0.000	2.525	10.467	0.000	0.120	-0.220
Tilt	-0.142	0.000	0.000	0.044	0.000	0.000
Roll	0.000	0.055	0.120	0.000	0.026	0.008
Twist	0.000	-0.116	-0.220	0.000	0.008	0.034

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	2.118	0.000	0.000	-0.111	0.000	0.000
Slide	0.000	3.996	2.975	0.000	0.010	-0.154
Rise	0.000	2.975	10.595	0.000	0.105	-0.192
Tilt	-0.111	0.000	0.000	0.043	0.000	0.000
Roll	0.000	0.010	0.105	0.000	0.031	0.010
Twist	0.000	-0.154	-0.192	0.000	0.010	0.039

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.960	0.000	0.000	-0.105	0.000	0.000
Slide	0.000	2.275	1.757	0.000	-0.008	-0.172
Rise	0.000	1.757	8.777	0.000	-0.009	-0.187
Tilt	-0.105	0.000	0.000	0.043	0.000	0.000
Roll	0.000	-0.008	-0.009	0.000	0.022	0.008
Twist	0.000	-0.172	-0.187	0.000	0.008	0.036

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.993	0.000	0.000	-0.124	0.000	0.000
Slide	0.000	2.075	1.547	0.000	-0.013	-0.153
Rise	0.000	1.548	8.553	0.000	-0.023	-0.206
Tilt	-0.124	0.000	0.000	0.042	0.000	0.000
Roll	0.000	-0.013	-0.023	0.000	0.022	0.010
Twist	0.000	-0.153	-0.206	0.000	0.010	0.035

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.952	0.000	0.000	-0.100	0.000	0.000
Slide	0.000	2.255	1.705	0.000	-0.008	-0.188
Rise	0.000	1.705	8.542	0.000	-0.011	-0.178
Tilt	-0.100	0.000	0.000	0.042	0.000	0.000
Roll	0.000	-0.008	-0.011	0.000	0.022	0.008
Twist	0.000	-0.188	-0.178	0.000	0.008	0.039

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-ccgg.12.cte	0.000	0.000

	Mean	Stdev
-ccgg.4.cte	0.000	0.000

	Mean	Stdev
-ccgg.8.cte	0.000	0.000

	Mean	Stdev
-cgcg.13.cte	0.000	0.000

	Mean	Stdev
-cgcg.16.cte	0.000	0.000

	Mean	Stdev
-cgcg.2.cte	0.000	0.000

	Mean	Stdev
-cgcg.5.cte	0.000	0.000

	Mean	Stdev
-cgcg.9.cte	0.000	0.000

	Mean	Stdev
-gcgc.11.cte	0.000	0.000

	Mean	Stdev
-gcgc.15.cte	0.000	0.000

	Mean	Stdev
-gcgc.3.cte	0.000	0.000

	Mean	Stdev
-gcgc.7.cte	0.000	0.000

	Mean	Stdev
-ggcc.10.cte	0.000	0.000

	Mean	Stdev
-ggcc.14.cte	0.000	0.000

	Mean	Stdev
-ggcc.6.cte	0.000	0.000

	Mean	Stdev
rise-10-GGCC	3.502	0.284

	Mean	Stdev
roll-10-GGCC	2.621	5.476

	Mean	Stdev
shift-10-GGCC	0.000	0.912

	Mean	Stdev
slide-10-GGCC	-0.230	0.667

	Mean	Stdev
tilt-10-GGCC	0.000	4.292

	Mean	Stdev
twist-10-GGCC	36.324	5.456

	Mean	Stdev
rise-11-GCGC	3.482	0.279

	Mean	Stdev
roll-11-GCGC	0.110	4.815

	Mean	Stdev
shift-11-GCGC	0.000	0.573

	Mean	Stdev
slide-11-GCGC	-0.717	0.455

	Mean	Stdev
tilt-11-GCGC	0.000	3.921

	Mean	Stdev
twist-11-GCGC	35.456	4.495

	Mean	Stdev
rise-12-CCGG	3.512	0.287

	Mean	Stdev
roll-12-CCGG	2.726	5.440

	Mean	Stdev
shift-12-CCGG	0.000	0.909

	Mean	Stdev
slide-12-CCGG	-0.241	0.671

	Mean	Stdev
tilt-12-CCGG	0.000	4.215

	Mean	Stdev
twist-12-CCGG	36.273	5.512

	Mean	Stdev
rise-13-CGCG	2.824	0.351

	Mean	Stdev
roll-13-CGCG	8.672	5.368

	Mean	Stdev
shift-13-CGCG	0.000	0.655

	Mean	Stdev
slide-13-CGCG	-0.018	0.504

	Mean	Stdev
tilt-13-CGCG	0.000	4.674

	Mean	Stdev
twist-13-CGCG	23.907	8.519

	Mean	Stdev
rise-14-GGCC	3.470	0.289

	Mean	Stdev
roll-14-GGCC	2.491	5.585

	Mean	Stdev
shift-14-GGCC	0.000	0.967

	Mean	Stdev
slide-14-GGCC	-0.147	0.669

	Mean	Stdev
tilt-14-GGCC	0.000	4.718

	Mean	Stdev
twist-14-GGCC	36.840	5.547

	Mean	Stdev
rise-15-GCGC	3.436	0.280

	Mean	Stdev
roll-15-GCGC	-0.952	5.553

	Mean	Stdev
shift-15-GCGC	0.000	0.755

	Mean	Stdev
slide-15-GCGC	-0.397	0.555

	Mean	Stdev
tilt-15-GCGC	0.000	4.415

	Mean	Stdev
twist-15-GCGC	34.475	5.112

	Mean	Stdev
rise-16-CGCG	3.154	0.640

	Mean	Stdev
roll-16-CGCG	6.785	10.483

	Mean	Stdev
shift-16-CGCG	0.000	1.267

	Mean	Stdev
slide-16-CGCG	0.131	0.884

	Mean	Stdev
tilt-16-CGCG	0.000	6.982

	Mean	Stdev
twist-16-CGCG	29.262	13.447

	Mean	Stdev
rise-2-CGCG	3.306	0.375

	Mean	Stdev
roll-2-CGCG	8.749	6.171

	Mean	Stdev
shift-2-CGCG	0.000	0.818

	Mean	Stdev
slide-2-CGCG	-0.054	0.546

	Mean	Stdev
tilt-2-CGCG	0.000	5.393

	Mean	Stdev
twist-2-CGCG	34.318	7.710

	Mean	Stdev
rise-3-GCGC	3.427	0.286

	Mean	Stdev
roll-3-GCGC	-0.384	5.464

	Mean	Stdev
shift-3-GCGC	0.000	0.733

	Mean	Stdev
slide-3-GCGC	-0.462	0.545

	Mean	Stdev
tilt-3-GCGC	0.000	4.373

	Mean	Stdev
twist-3-GCGC	34.350	5.111

	Mean	Stdev
rise-4-CCGG	3.463	0.287

	Mean	Stdev
roll-4-CCGG	2.663	5.701

	Mean	Stdev
shift-4-CCGG	0.000	0.958

	Mean	Stdev
slide-4-CCGG	-0.172	0.679

	Mean	Stdev
tilt-4-CCGG	0.000	4.676

	Mean	Stdev
twist-4-CCGG	36.607	5.692

	Mean	Stdev
rise-5-CGCG	2.824	0.332

	Mean	Stdev
roll-5-CGCG	8.673	5.340

	Mean	Stdev
shift-5-CGCG	0.000	0.661

	Mean	Stdev
slide-5-CGCG	-0.039	0.501

	Mean	Stdev
tilt-5-CGCG	0.000	4.655

	Mean	Stdev
twist-5-CGCG	23.919	8.134

	Mean	Stdev
rise-6-GGCC	3.524	0.285

	Mean	Stdev
roll-6-GGCC	2.885	5.440

	Mean	Stdev
shift-6-GGCC	0.000	0.906

	Mean	Stdev
slide-6-GGCC	-0.273	0.697

	Mean	Stdev
tilt-6-GGCC	0.000	4.325

	Mean	Stdev
twist-6-GGCC	36.188	5.398

	Mean	Stdev
rise-7-GCGC	3.465	0.277

	Mean	Stdev
roll-7-GCGC	0.056	4.753

	Mean	Stdev
shift-7-GCGC	0.000	0.565

	Mean	Stdev
slide-7-GCGC	-0.736	0.452

	Mean	Stdev
tilt-7-GCGC	0.000	3.947

	Mean	Stdev
twist-7-GCGC	35.360	4.572

	Mean	Stdev
rise-8-CCGG	3.502	0.285

	Mean	Stdev
roll-8-CCGG	2.525	5.488

	Mean	Stdev
shift-8-CCGG	0.000	0.911

	Mean	Stdev
slide-8-CCGG	-0.288	0.695

	Mean	Stdev
tilt-8-CCGG	0.000	4.268

	Mean	Stdev
twist-8-CCGG	35.664	5.953

	Mean	Stdev
rise-9-CGCG	2.775	0.326

	Mean	Stdev
roll-9-CGCG	8.775	5.177

	Mean	Stdev
shift-9-CGCG	0.000	0.623

	Mean	Stdev
slide-9-CGCG	-0.054	0.478

	Mean	Stdev
tilt-9-CGCG	0.000	4.656

	Mean	Stdev
twist-9-CGCG	23.087	7.930

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	G	-	C	-	C	-	G	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19
