NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	G	-	T	-	T	-	G	-	G	-	T	-	T	-	G	-	G	-	T	-	T	-	G	-	G	-	T	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	C	-	A	-	A	-	C	-	C	-	A	-	A	-	C	-	C	-	A	-	A	-	C	-	C	-	A	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

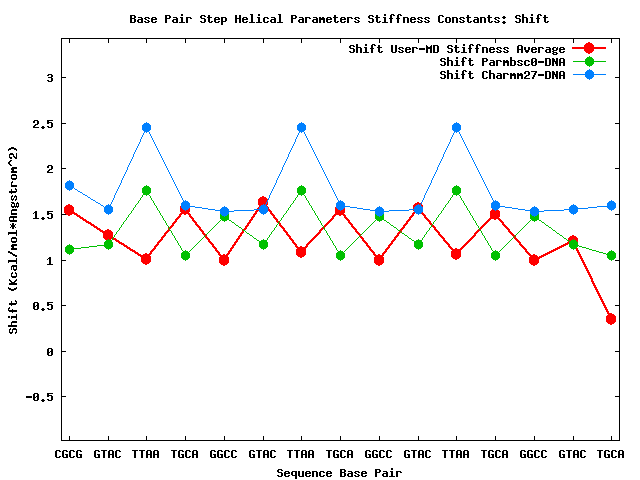

Shift

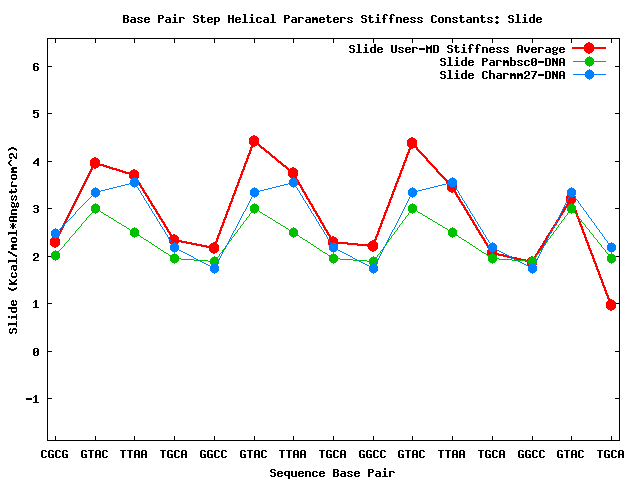

Slide

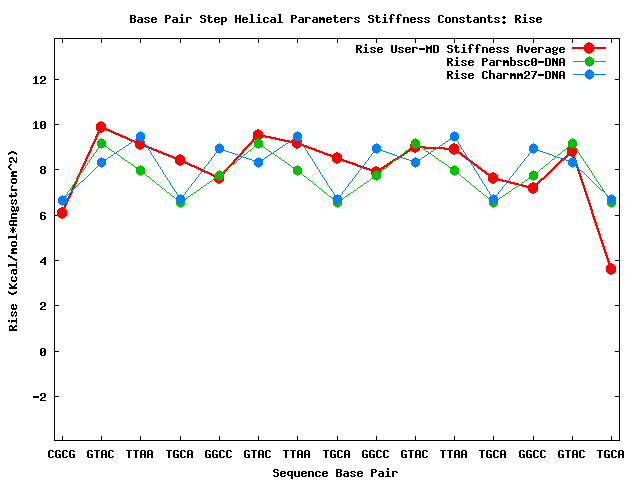

Rise

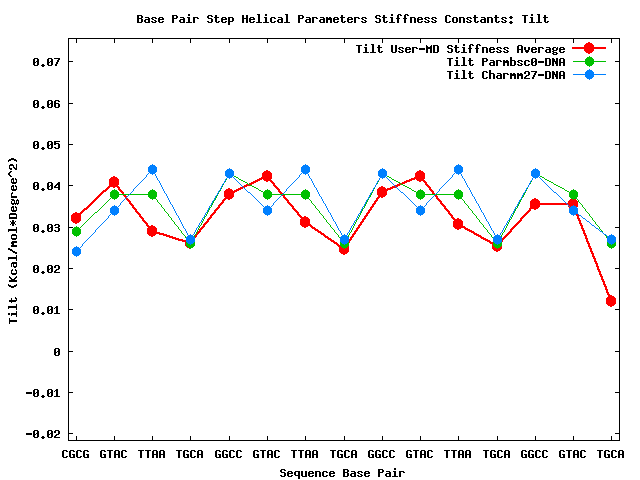

Tilt

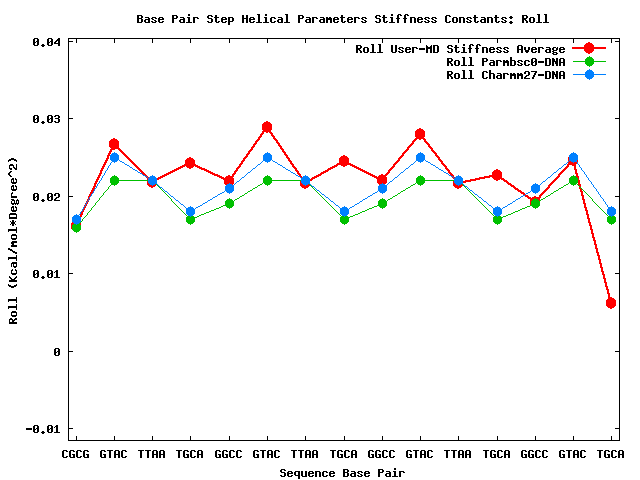

Roll

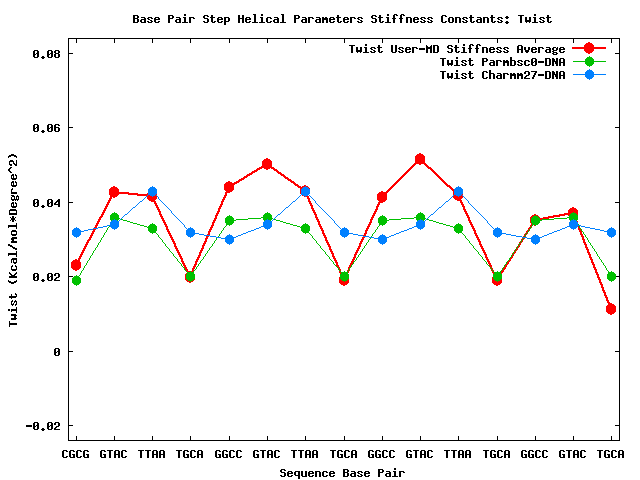

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.547	0.000	0.000	-0.147	0.000	0.000
Slide	0.000	2.285	1.649	0.000	0.002	-0.099
Rise	0.000	1.649	6.062	0.000	-0.071	-0.200
Tilt	-0.147	0.000	0.000	0.032	0.000	0.000
Roll	0.000	0.002	-0.071	0.000	0.016	0.006
Twist	0.000	-0.099	-0.200	0.000	0.006	0.023

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.990	0.000	0.000	-0.098	0.000	0.000
Slide	0.000	2.202	1.616	0.000	-0.001	-0.217
Rise	0.000	1.616	7.893	0.000	-0.038	-0.163
Tilt	-0.098	0.000	0.000	0.038	0.000	0.000
Roll	0.000	-0.001	-0.038	0.000	0.022	0.008
Twist	0.000	-0.217	-0.163	0.000	0.008	0.041

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.999	0.000	0.000	-0.094	0.000	0.000
Slide	0.000	1.872	1.509	0.000	0.008	-0.178
Rise	0.000	1.509	7.171	0.000	-0.011	-0.161
Tilt	-0.094	0.000	0.000	0.035	0.000	0.000
Roll	0.000	0.008	-0.011	0.000	0.019	0.007
Twist	0.000	-0.178	-0.161	0.000	0.007	0.035

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.989	0.000	0.000	-0.096	0.000	0.000
Slide	0.000	2.151	1.491	0.000	0.006	-0.218
Rise	0.000	1.491	7.611	0.000	-0.030	-0.144
Tilt	-0.096	0.000	0.000	0.038	0.000	0.000
Roll	0.000	0.006	-0.030	0.000	0.022	0.007
Twist	0.000	-0.218	-0.144	0.000	0.007	0.044

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.568	0.000	0.000	-0.033	0.000	0.000
Slide	0.000	4.368	2.840	0.000	0.016	-0.193
Rise	0.000	2.840	9.007	0.000	0.064	-0.182
Tilt	-0.033	0.000	0.000	0.042	0.000	0.000
Roll	0.000	0.016	0.064	0.000	0.028	0.008
Twist	0.000	-0.193	-0.182	0.000	0.008	0.051

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.209	0.000	0.000	-0.040	0.000	0.000
Slide	0.000	3.196	2.530	0.000	0.018	-0.128
Rise	0.000	2.530	8.806	0.000	0.079	-0.185
Tilt	-0.040	0.000	0.000	0.035	0.000	0.000
Roll	0.000	0.018	0.079	0.000	0.025	0.010
Twist	0.000	-0.128	-0.185	0.000	0.010	0.037

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.265	0.000	0.000	-0.058	0.000	0.000
Slide	0.000	3.941	3.033	0.000	0.016	-0.130
Rise	0.000	3.033	9.855	0.000	0.064	-0.236
Tilt	-0.058	0.000	0.000	0.041	0.000	0.000
Roll	0.000	0.016	0.064	0.000	0.027	0.012
Twist	0.000	-0.130	-0.236	0.000	0.012	0.043

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.630	0.000	0.000	-0.037	0.000	0.000
Slide	0.000	4.421	2.978	0.000	0.018	-0.212
Rise	0.000	2.978	9.529	0.000	0.056	-0.219
Tilt	-0.037	0.000	0.000	0.042	0.000	0.000
Roll	0.000	0.018	0.056	0.000	0.029	0.006
Twist	0.000	-0.212	-0.219	0.000	0.006	0.050

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.494	0.000	0.000	-0.002	0.000	0.000
Slide	0.000	2.064	0.645	0.000	0.015	-0.024
Rise	0.000	0.645	7.611	0.000	-0.153	-0.230
Tilt	-0.002	0.000	0.000	0.025	0.000	0.000
Roll	0.000	0.015	-0.153	0.000	0.023	0.009
Twist	0.000	-0.024	-0.230	0.000	0.009	0.019

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.344	0.000	0.000	0.007	0.000	0.000
Slide	0.000	0.967	-0.010	0.000	0.004	-0.020
Rise	0.000	-0.010	3.614	0.000	-0.061	-0.117
Tilt	0.007	0.000	0.000	0.012	0.000	0.000
Roll	0.000	0.004	-0.061	0.000	0.006	0.001
Twist	0.000	-0.020	-0.117	0.000	0.001	0.011

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.554	0.000	0.000	-0.000	0.000	0.000
Slide	0.000	2.334	0.619	0.000	0.017	-0.030
Rise	0.000	0.619	8.403	0.000	-0.171	-0.247
Tilt	-0.000	0.000	0.000	0.026	0.000	0.000
Roll	0.000	0.017	-0.171	0.000	0.024	0.010
Twist	0.000	-0.030	-0.247	0.000	0.010	0.020

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.543	0.000	0.000	-0.003	0.000	0.000
Slide	0.000	2.295	0.754	0.000	0.017	-0.031
Rise	0.000	0.754	8.497	0.000	-0.171	-0.249
Tilt	-0.003	0.000	0.000	0.025	0.000	0.000
Roll	0.000	0.017	-0.171	0.000	0.025	0.009
Twist	0.000	-0.031	-0.249	0.000	0.009	0.019

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.059	0.000	0.000	-0.100	0.000	0.000
Slide	0.000	3.440	1.060	0.000	-0.054	-0.250
Rise	0.000	1.060	8.894	0.000	0.002	-0.198
Tilt	-0.100	0.000	0.000	0.031	0.000	0.000
Roll	0.000	-0.054	0.002	0.000	0.022	0.011
Twist	0.000	-0.250	-0.198	0.000	0.011	0.042

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.006	0.000	0.000	-0.103	0.000	0.000
Slide	0.000	3.703	0.921	0.000	-0.059	-0.231
Rise	0.000	0.921	9.114	0.000	0.006	-0.191
Tilt	-0.103	0.000	0.000	0.029	0.000	0.000
Roll	0.000	-0.059	0.006	0.000	0.022	0.012
Twist	0.000	-0.231	-0.191	0.000	0.012	0.042

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.086	0.000	0.000	-0.104	0.000	0.000
Slide	0.000	3.738	0.939	0.000	-0.062	-0.263
Rise	0.000	0.939	9.142	0.000	0.017	-0.175
Tilt	-0.104	0.000	0.000	0.031	0.000	0.000
Roll	0.000	-0.062	0.017	0.000	0.022	0.012
Twist	0.000	-0.263	-0.175	0.000	0.012	0.043

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-cgcg.2.cte	0.000	0.000

	Mean	Stdev
-ggcc.10.cte	0.000	0.000

	Mean	Stdev
-ggcc.14.cte	0.000	0.000

	Mean	Stdev
-ggcc.6.cte	0.000	0.000

	Mean	Stdev
-gtac.11.cte	0.000	0.000

	Mean	Stdev
-gtac.15.cte	0.000	0.000

	Mean	Stdev
-gtac.3.cte	0.000	0.000

	Mean	Stdev
-gtac.7.cte	0.000	0.000

	Mean	Stdev
-tgca.13.cte	0.000	0.000

	Mean	Stdev
-tgca.16.cte	0.000	0.000

	Mean	Stdev
-tgca.5.cte	0.000	0.000

	Mean	Stdev
-tgca.9.cte	0.000	0.000

	Mean	Stdev
-ttaa.12.cte	0.000	0.000

	Mean	Stdev
-ttaa.4.cte	0.000	0.000

	Mean	Stdev
-ttaa.8.cte	0.000	0.000

	Mean	Stdev
rise-10-GGCC	3.579	0.297

	Mean	Stdev
roll-10-GGCC	4.052	5.583

	Mean	Stdev
shift-10-GGCC	0.000	0.889

	Mean	Stdev
slide-10-GGCC	-0.609	0.807

	Mean	Stdev
tilt-10-GGCC	0.000	4.524

	Mean	Stdev
twist-10-GGCC	35.333	5.851

	Mean	Stdev
rise-11-GTAC	3.458	0.291

	Mean	Stdev
roll-11-GTAC	-0.430	4.798

	Mean	Stdev
shift-11-GTAC	0.000	0.616

	Mean	Stdev
slide-11-GTAC	-0.808	0.437

	Mean	Stdev
tilt-11-GTAC	0.000	3.755

	Mean	Stdev
twist-11-GTAC	33.389	3.861

	Mean	Stdev
rise-12-TTAA	3.307	0.274

	Mean	Stdev
roll-12-TTAA	-1.030	5.619

	Mean	Stdev
shift-12-TTAA	0.000	0.896

	Mean	Stdev
slide-12-TTAA	-0.026	0.550

	Mean	Stdev
tilt-12-TTAA	0.000	5.273

	Mean	Stdev
twist-12-TTAA	37.353	5.463

	Mean	Stdev
rise-13-TGCA	3.000	0.356

	Mean	Stdev
roll-13-TGCA	11.382	5.769

	Mean	Stdev
shift-13-TGCA	0.000	0.626

	Mean	Stdev
slide-13-TGCA	-0.140	0.547

	Mean	Stdev
tilt-13-TGCA	0.000	4.823

	Mean	Stdev
twist-13-TGCA	24.008	7.327

	Mean	Stdev
rise-14-GGCC	3.553	0.314

	Mean	Stdev
roll-14-GGCC	3.758	6.006

	Mean	Stdev
shift-14-GGCC	0.000	0.885

	Mean	Stdev
slide-14-GGCC	-0.612	0.849

	Mean	Stdev
tilt-14-GGCC	0.000	4.699

	Mean	Stdev
twist-14-GGCC	35.118	6.150

	Mean	Stdev
rise-15-GTAC	3.370	0.308

	Mean	Stdev
roll-15-GTAC	-0.109	5.441

	Mean	Stdev
shift-15-GTAC	0.000	0.710

	Mean	Stdev
slide-15-GTAC	-0.676	0.507

	Mean	Stdev
tilt-15-GTAC	0.000	4.144

	Mean	Stdev
twist-15-GTAC	32.443	4.788

	Mean	Stdev
rise-16-TGCA	3.247	0.551

	Mean	Stdev
roll-16-TGCA	6.591	10.788

	Mean	Stdev
shift-16-TGCA	0.000	1.313

	Mean	Stdev
slide-16-TGCA	-0.031	0.802

	Mean	Stdev
tilt-16-TGCA	0.000	7.010

	Mean	Stdev
twist-16-TGCA	30.912	9.334

	Mean	Stdev
rise-2-CGCG	3.532	0.387

	Mean	Stdev
roll-2-CGCG	9.197	6.457

	Mean	Stdev
shift-2-CGCG	0.000	0.819

	Mean	Stdev
slide-2-CGCG	-0.183	0.595

	Mean	Stdev
tilt-2-CGCG	0.000	5.690

	Mean	Stdev
twist-2-CGCG	38.021	6.403

	Mean	Stdev
rise-3-GTAC	3.417	0.297

	Mean	Stdev
roll-3-GTAC	-0.551	5.229

	Mean	Stdev
shift-3-GTAC	0.000	0.705

	Mean	Stdev
slide-3-GTAC	-0.672	0.449

	Mean	Stdev
tilt-3-GTAC	0.000	3.929

	Mean	Stdev
twist-3-GTAC	32.312	4.462

	Mean	Stdev
rise-4-TTAA	3.283	0.270

	Mean	Stdev
roll-4-TTAA	-1.398	5.718

	Mean	Stdev
shift-4-TTAA	0.000	0.959

	Mean	Stdev
slide-4-TTAA	0.067	0.493

	Mean	Stdev
tilt-4-TTAA	0.000	5.646

	Mean	Stdev
twist-4-TTAA	37.761	5.188

	Mean	Stdev
rise-5-TGCA	2.929	0.337

	Mean	Stdev
roll-5-TGCA	11.361	5.633

	Mean	Stdev
shift-5-TGCA	0.000	0.614

	Mean	Stdev
slide-5-TGCA	-0.151	0.514

	Mean	Stdev
tilt-5-TGCA	0.000	4.741

	Mean	Stdev
twist-5-TGCA	22.784	7.155

	Mean	Stdev
rise-6-GGCC	3.592	0.300

	Mean	Stdev
roll-6-GGCC	4.051	5.569

	Mean	Stdev
shift-6-GGCC	0.000	0.885

	Mean	Stdev
slide-6-GGCC	-0.608	0.807

	Mean	Stdev
tilt-6-GGCC	0.000	4.530

	Mean	Stdev
twist-6-GGCC	35.785	5.540

	Mean	Stdev
rise-7-GTAC	3.455	0.284

	Mean	Stdev
roll-7-GTAC	-0.474	4.640

	Mean	Stdev
shift-7-GTAC	0.000	0.606

	Mean	Stdev
slide-7-GTAC	-0.810	0.441

	Mean	Stdev
tilt-7-GTAC	0.000	3.759

	Mean	Stdev
twist-7-GTAC	33.225	3.959

	Mean	Stdev
rise-8-TTAA	3.301	0.268

	Mean	Stdev
roll-8-TTAA	-1.189	5.719

	Mean	Stdev
shift-8-TTAA	0.000	0.891

	Mean	Stdev
slide-8-TTAA	0.004	0.526

	Mean	Stdev
tilt-8-TTAA	0.000	5.268

	Mean	Stdev
twist-8-TTAA	37.550	5.396

	Mean	Stdev
rise-9-TGCA	2.950	0.342

	Mean	Stdev
roll-9-TGCA	11.207	5.571

	Mean	Stdev
shift-9-TGCA	0.000	0.616

	Mean	Stdev
slide-9-TGCA	-0.137	0.521

	Mean	Stdev
tilt-9-TGCA	0.000	4.875

	Mean	Stdev
twist-9-TGCA	23.142	7.410

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	G	-	T	-	T	-	G	-	G	-	T	-	T	-	G	-	G	-	T	-	T	-	G	-	G	-	T	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	C	-	A	-	A	-	C	-	C	-	A	-	A	-	C	-	C	-	A	-	A	-	C	-	C	-	A	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	G	-	T	-	T	-	G	-	G	-	T	-	T	-	G	-	G	-	T	-	T	-	G	-	G	-	T	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	C	-	A	-	A	-	C	-	C	-	A	-	A	-	C	-	C	-	A	-	A	-	C	-	C	-	A	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19

	1		2		3		4		5		6		7		8		9		10		11		12		13		14		15		16		17		18
5'	G	-	C	-	G	-	T	-	T	-	G	-	G	-	T	-	T	-	G	-	G	-	T	-	T	-	G	-	G	-	T	-	G	-	C	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	C	-	G	-	C	-	A	-	A	-	C	-	C	-	A	-	A	-	C	-	C	-	A	-	A	-	C	-	C	-	A	-	C	-	G	5'
	36		35		34		33		32		31		30		29		28		27		26		25		24		23		22		21		20		19
