NAFlex. Nucleic Acids Flexibility

Nucleic Acid Analysis - Stiffness Analysis

(Using Curves+ program)

	1		2		3		4		5		6		7		8		9		10		11		12
5'	C	-	G	-	C	-	G	-	A	-	A	-	T	-	T	-	C	-	G	-	C	-	G	3'
			\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|	x	\|
3'	G	-	C	-	G	-	C	-	T	-	T	-	A	-	A	-	G	-	C	-	G	-	C	5'
	24		23		22		21		20		19		18		17		16		15		14		13

Interactive Sequence (see Help)

Average Results

Results by Time

Stiffness by Helical Parameters

Stiffness By Base Pair Step

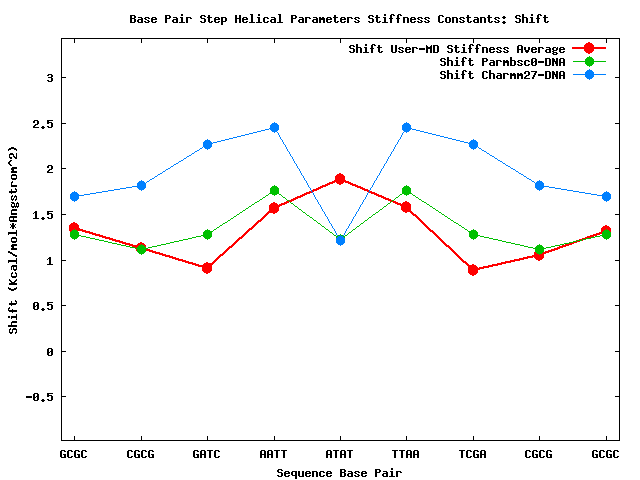

Shift

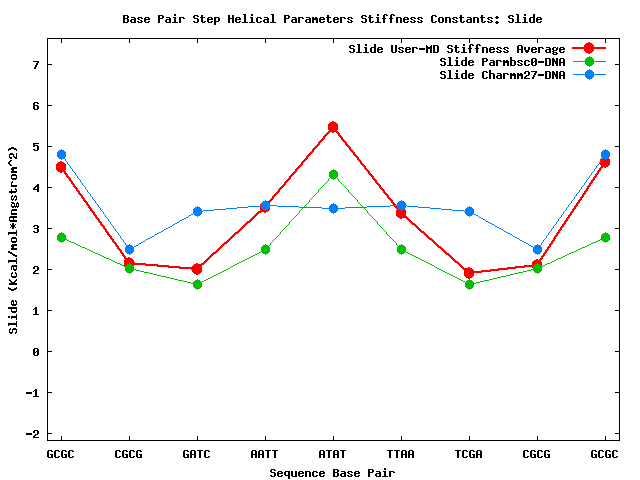

Slide

Rise

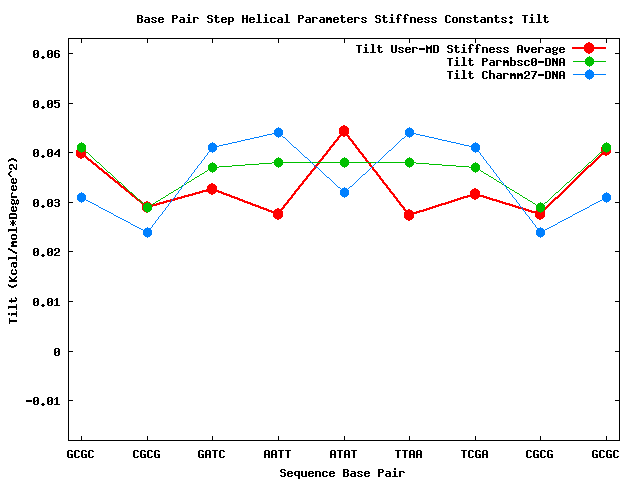

Tilt

Roll

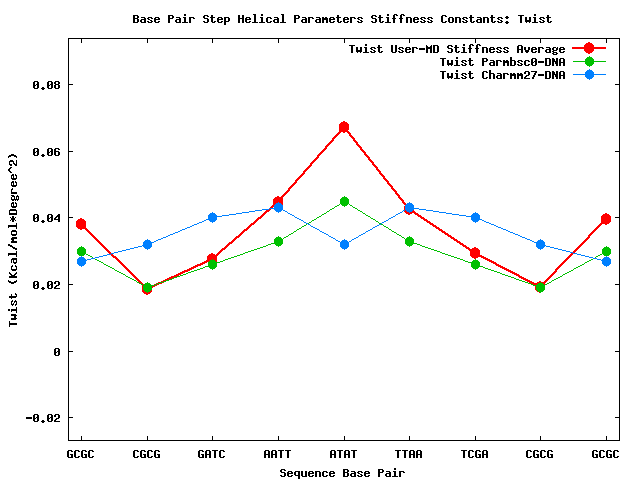

Twist

[Image courtesy of Curves+]

Shift

Slide

Rise

Tilt

Roll

Twist

[Image courtesy of Curves+]

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

Open in New Window

Download Raw Data

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.566	0.000	0.000	-0.030	0.000	0.000
Slide	0.000	3.516	1.315	0.000	-0.098	-0.244
Rise	0.000	1.315	7.740	0.000	-0.055	-0.152
Tilt	-0.030	0.000	0.000	0.028	0.000	0.000
Roll	0.000	-0.098	-0.055	0.000	0.024	0.010
Twist	0.000	-0.244	-0.152	0.000	0.010	0.045

[Image courtesy of Curves+]

Units:
Diagonal Shift/Slide/Rise in kcal/(mol*Å²), Diagonal Tilt/Roll/Twist in kcal/(mol*degree²)
Out of Diagonal: Shift/Slide/Rise in kcal/(mol*Å), Out of Diagonal Tilt/Roll/Twist in kcal/(mol*degree)

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.888	0.000	0.000	0.020	0.000	0.000
Slide	0.000	5.449	2.665	0.000	-0.048	-0.217
Rise	0.000	2.665	10.258	0.000	0.000	-0.147
Tilt	0.020	0.000	0.000	0.044	0.000	0.000
Roll	0.000	-0.048	0.000	0.000	0.034	0.010
Twist	0.000	-0.217	-0.147	0.000	0.010	0.067

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.128	0.000	0.000	-0.121	0.000	0.000
Slide	0.000	2.128	0.832	0.000	0.002	-0.083
Rise	0.000	0.832	6.958	0.000	-0.059	-0.188
Tilt	-0.121	0.000	0.000	0.029	0.000	0.000
Roll	0.000	0.002	-0.059	0.000	0.016	0.007
Twist	0.000	-0.083	-0.188	0.000	0.007	0.019

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.054	0.000	0.000	-0.114	0.000	0.000
Slide	0.000	2.088	0.678	0.000	0.008	-0.082
Rise	0.000	0.678	7.097	0.000	-0.062	-0.190
Tilt	-0.114	0.000	0.000	0.028	0.000	0.000
Roll	0.000	0.008	-0.062	0.000	0.016	0.007
Twist	0.000	-0.082	-0.190	0.000	0.007	0.019

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.912	0.000	0.000	-0.064	0.000	0.000
Slide	0.000	1.995	1.242	0.000	-0.047	-0.138
Rise	0.000	1.242	6.850	0.000	-0.053	-0.157
Tilt	-0.064	0.000	0.000	0.033	0.000	0.000
Roll	0.000	-0.047	-0.053	0.000	0.023	0.012
Twist	0.000	-0.138	-0.157	0.000	0.012	0.028

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.313	0.000	0.000	-0.121	0.000	0.000
Slide	0.000	4.598	2.177	0.000	0.087	-0.207
Rise	0.000	2.177	10.039	0.000	0.135	-0.205
Tilt	-0.121	0.000	0.000	0.040	0.000	0.000
Roll	0.000	0.087	0.135	0.000	0.023	0.008
Twist	0.000	-0.207	-0.205	0.000	0.008	0.039

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.341	0.000	0.000	-0.121	0.000	0.000
Slide	0.000	4.484	2.141	0.000	0.076	-0.191
Rise	0.000	2.141	9.891	0.000	0.122	-0.198
Tilt	-0.121	0.000	0.000	0.040	0.000	0.000
Roll	0.000	0.076	0.122	0.000	0.023	0.010
Twist	0.000	-0.191	-0.198	0.000	0.010	0.038

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	0.886	0.000	0.000	-0.062	0.000	0.000
Slide	0.000	1.884	1.168	0.000	-0.043	-0.137
Rise	0.000	1.168	6.757	0.000	-0.039	-0.153
Tilt	-0.062	0.000	0.000	0.032	0.000	0.000
Roll	0.000	-0.043	-0.039	0.000	0.024	0.013
Twist	0.000	-0.137	-0.153	0.000	0.013	0.029

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Shift	Slide	Rise	Tilt	Roll	Twist
Shift	1.572	0.000	0.000	-0.026	0.000	0.000
Slide	0.000	3.362	1.230	0.000	-0.091	-0.226
Rise	0.000	1.230	7.667	0.000	-0.054	-0.129
Tilt	-0.026	0.000	0.000	0.027	0.000	0.000
Roll	0.000	-0.091	-0.054	0.000	0.024	0.009
Twist	0.000	-0.226	-0.129	0.000	0.009	0.043

[Image courtesy of Curves+]

Download Raw Data

Open in New Window

	Mean	Stdev
-aatt.5.cte	0.000	0.000

	Mean	Stdev
-atat.6.cte	0.000	0.000

	Mean	Stdev
-cgcg.3.cte	0.000	0.000

	Mean	Stdev
-cgcg.9.cte	0.000	0.000

	Mean	Stdev
-gatc.4.cte	0.000	0.000

	Mean	Stdev
-gcgc.10.cte	0.000	0.000

	Mean	Stdev
-gcgc.2.cte	0.000	0.000

	Mean	Stdev
-tcga.8.cte	0.000	0.000

	Mean	Stdev
-ttaa.7.cte	0.000	0.000

	Mean	Stdev
rise-10-GCGC	3.313	0.280

	Mean	Stdev
roll-10-GCGC	-0.774	6.489

	Mean	Stdev
shift-10-GCGC	0.000	0.786

	Mean	Stdev
slide-10-GCGC	-0.053	0.466

	Mean	Stdev
tilt-10-GCGC	0.000	4.482

	Mean	Stdev
twist-10-GCGC	30.956	5.391

	Mean	Stdev
rise-2-GCGC	3.307	0.282

	Mean	Stdev
roll-2-GCGC	-0.534	6.589

	Mean	Stdev
shift-2-GCGC	0.000	0.776

	Mean	Stdev
slide-2-GCGC	-0.053	0.462

	Mean	Stdev
tilt-2-GCGC	0.000	4.508

	Mean	Stdev
twist-2-GCGC	30.815	5.558

	Mean	Stdev
rise-3-CGCG	3.221	0.341

	Mean	Stdev
roll-3-CGCG	7.777	6.784

	Mean	Stdev
shift-3-CGCG	0.000	0.973

	Mean	Stdev
slide-3-CGCG	0.108	0.591

	Mean	Stdev
tilt-3-CGCG	0.000	6.077

	Mean	Stdev
twist-3-CGCG	33.488	7.724

	Mean	Stdev
rise-4-GATC	3.396	0.318

	Mean	Stdev
roll-4-GATC	2.919	5.742

	Mean	Stdev
shift-4-GATC	0.000	0.864

	Mean	Stdev
slide-4-GATC	-0.091	0.682

	Mean	Stdev
tilt-4-GATC	0.000	4.576

	Mean	Stdev
twist-4-GATC	34.253	6.519

	Mean	Stdev
rise-5-AATT	3.341	0.287

	Mean	Stdev
roll-5-AATT	2.554	5.289

	Mean	Stdev
shift-5-AATT	0.000	0.618

	Mean	Stdev
slide-5-AATT	-0.371	0.532

	Mean	Stdev
tilt-5-AATT	0.000	4.654

	Mean	Stdev
twist-5-AATT	35.300	4.685

	Mean	Stdev
rise-6-ATAT	3.313	0.257

	Mean	Stdev
roll-6-ATAT	-0.741	4.281

	Mean	Stdev
shift-6-ATAT	0.000	0.559

	Mean	Stdev
slide-6-ATAT	-0.869	0.371

	Mean	Stdev
tilt-6-ATAT	0.000	3.644

	Mean	Stdev
twist-6-ATAT	32.130	3.229

	Mean	Stdev
rise-7-TTAA	3.342	0.287

	Mean	Stdev
roll-7-TTAA	2.489	5.226

	Mean	Stdev
shift-7-TTAA	0.000	0.615

	Mean	Stdev
slide-7-TTAA	-0.377	0.534

	Mean	Stdev
tilt-7-TTAA	0.000	4.665

	Mean	Stdev
twist-7-TTAA	35.267	4.682

	Mean	Stdev
rise-8-TCGA	3.395	0.319

	Mean	Stdev
roll-8-TCGA	2.893	5.702

	Mean	Stdev
shift-8-TCGA	0.000	0.875

	Mean	Stdev
slide-8-TCGA	-0.056	0.700

	Mean	Stdev
tilt-8-TCGA	0.000	4.632

	Mean	Stdev
twist-8-TCGA	34.520	6.307

	Mean	Stdev
rise-9-CGCG	3.214	0.336

	Mean	Stdev
roll-9-CGCG	7.814	6.834

	Mean	Stdev
shift-9-CGCG	0.000	1.000

	Mean	Stdev
slide-9-CGCG	0.116	0.598

	Mean	Stdev
tilt-9-CGCG	0.000	6.191

	Mean	Stdev
twist-9-CGCG	33.193	7.599
